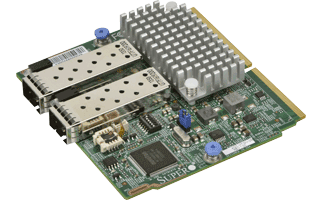

Add-on Card AOC-MTGN-i2S / AOC-MTGN-i2SM
  Products  Accessories   [ AOC-MTGN-i2S (for Storage Systems) / AOC-MTGN-i2SM (for Twin Systems) ]
Add-on Card

The Ultimate 10G SFP+ Ethernet Controller in Supermicro Super I/O Module

Supermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MTGN-i2S is the most flexible and scalable 10GbE SFP+ SIOM controller for today's demanding data center environments. Based on Intel 10GbE network controller 82599, they address the demanding needs of the next generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking.

This product is only available through Supermicro.
Key Features

• Dual SFP+ Connectors

• Super I/O Module (SIOM) Form Factor

• Intel® QuickData Technology

• VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for

   Virtualized Environments

• Load Balancing on Multiple CPUs

• iSCSI Remote Boot Support

• Fibre Channel over Ethernet (FCoE) Support

• Support for most Network Operating Systems

• NC-SI for Remote Management

• RoHS compliant 6/6

• Supports both Direct Atttach Copper and Fiber Cables


  • RoHS Compliant 6/6, Pb Free
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]
Compatibility Matrices

Supermicro Servers with SIOM support

Cables & Transceivers

Networking Cables & Transceivers



   - Intel® 82599ES 10GbE controller

   - Super I/O Module (SIOM) Form Factor

   - Dual SFP+ ports

   - Load balancing on multiple CPUs

   - iSCSI remote boot support

   - Fibre Channel over Ethernet (FCoE) support

   - Intel® PROSet Utility for Windows® Device Manager

   - Time Sync IEEE 1588

I/O Features

   - Direct Cache Access (DCA) to avoid cache misses

   - MSI-X support to minimize the overhead of interrupts,

     allowing load-balancing between multiple cores/CPUs

   - Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities

      (IPv4, IPv6)

   - Receive and Transmit Side Scaling for Windows environments

     and scalable I/O for Linux environments

Virtualization Features

   - VMDq, Next-Generation VMDq (64 queues per port)

   - PC-SIG SR-IOV implementation (64 virtual functions per port)

   - Advanced Packet Filtering

   - VLAN support to allow creation of multiple VLAN segments

   - VXLAN through Software

Management Features

   - Preboot eXecution Environment (PXE) support

   - Simple Network Management Protocol (SNMP) and Remote

     Network Monitoring (RMON) statistics counters

   - iSCSI remote boot

   - NC-SI for remote management

   - Asset Management support on Supermicro® platforms

   - Controller asset tags such as part number, revision, serial

     number, and MAC addresses

Advanced Software Features

   - Teaming support

   - IEEE 802.3ad (link aggregation control protocol)

   - IEEE 802.1Q VLANs

   - IEEE 802.3 2005 flow control support

OS Support

   - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)

   - Windows 8.1, 8, 7 (x64 Edition)

   - RedHat Linux

   - SUSE Linux

   - FreeBSD

   - UEFI

   - VMware

Cables Support

   - SFP+ direct attach twinaxial copper cables up to 7m

   - Fiber-optic cables (with required optional SFP+ transceivers)

Power Consumption

   - Typical power consumption: 6.2W

   - Maximum power consumption: 7.2W

Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions (L x H)

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)

Available SKUs
SKUs Bracket Included Description
AOC-MTGN-i2S BKT-0090L 2-port 10 Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)
AOC-MTGN-i2SM BKT-0089L 2-port 10 Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)

Optional Parts List
  Part Number Qty Description
SFP+ Copper Cable CBL-0347L - 1m 10GbE SFP+ to SFP+, Passive, 30AWG, Pull Type
SFP+ Copper Cable CBL-NTWK-0347 - 1m 10GbE SFP+ to SFP+, Passive, 30AWG, Push Type
SFP+ Copper Cable CBL-NTWK-0456 - 2m 10GbE SFP+ to SFP+, Passive, 30AWG, Push Type
SFP+ Copper Cable CBL-0348L - 3m 10GbE SFP+ to SFP+, Passive, 24AWG, Pull release
SFP+ Copper Cable CBL-0349L - 5m 10GbE SFP+ to SFP+, Passive, 24AWG, Pull release
SFP+ Active Optical Cable CBL-SFP+AOC-1M - 1m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
SFP+ Active Optical Cable CBL-SFP+AOC-3M - 3m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
SFP+ Active Optical Cable CBL-SFP+AOC-5M - 5m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
SFP+ Transceiver module AOC-E10GSFPSR - SFP+ transceiver module for short range fiber cables (up to 300m), 10G/1G, 850nm, MMF, LC
SFP+ Transceiver module AOC-E10GSFPLR - SFP+ transceiver module for long range fiber cables (up to 3000m), 10G/1G, 1310nm, MMF, LC
SFP+ Transceiver module AOM-TSFP-709DMZ-AVG - 10G/1G Ethernet 10GBase-SR/SW 1000Base-SX Dual Rate SFP+ 850nm LC Transceiver
Information in this document is subject to change without notice.

Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
