Add-on Card AOC-S100G-M2C
  Products  Accessories   [ AOC-S100G-M2C ]
Add-on Card

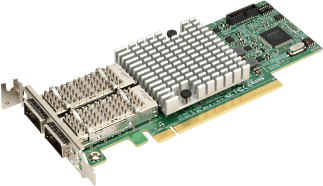

The Supermicro AOC-S100G-m2C provides exceptionally high performance at 100Gb/s Ethernet connectivity. Utilizing the Mellanox ConnectX®-4 EN chipset with features that such as VXLAN and NVGRE, this card offers network flexibility, high bandwidth with specific hardware offload for I/O virtualization, and efficiently optimizes bandwidth demand from virtualized infrastructure in the data center or cloud deployments. The AOC-S100G-m2C supports the RoCE specification with CPU offload, delivering low-latency and high-efficiency over Ethernet networks. Supermicro® Asset Management and thermal detection provide an extra layer of controller health management and peace of mind. The Supermicro AOC-S100G-m2C is the building block of choice for the next generation of high speed Ethernet data center networks.
AOC-S100G-m2C


This product is only available through Supermicro.

Key Features


• Dual QSPF28 Connectors

• Low-Profile, Short Length Standard Form Factor

• PCI-E 3.0 x16

• Mellanox ConnectX®-4 EN Ethernet Controller

• Asset Management Features with thermal sensor

• Hardware offloads for VXLAN, NVGRE and GENEVE

  encapsulated traffic

• Low latency RDMA over Converged Ethernet (RoCE)

• SR-IOV compliant

• Jumbo Frames support up to 9.6kB

• PXE Support

• Erasure Coding Offload

• NC-SI for IPMI support

• RoHS compliant 6/6


Compliance
RoHS

  • RoHS Compliant 6/6, Pb Free

Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel & Mellanox folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]
Firmware [ Download ]


Specification


General

   - Mellanox ConnectX®-4 EN dual-port 100Gbps controller

   - Compact size low-profile standard form factor

   - PCI-E 3.0 x16 interface

   - Dual QSFP28 connectors

   - Max power consumption: 16.3W



Host Interface

   - PCI-E 3.0x16

   - Message Signal Interrupt (MSI-X)



Networking Features

   - IEEE 802.2bj, 802.3bm 100 Gigabit Ethernet

   - 25G Ethernet Consortium 25, 50 Gigabit Ethernet

   - IEE 802.3ba 40 Gigabit Ethernet

   - IEEE802.3ae 10 Gigabit Ethernet

   - IEEE802.3az Energy Efficient Ethernet

   - IEEE 802.3ap based auto-engotiation and KR startup

   - IEEE 802.ad, 802.1AX Link Aggregation

   - IEEE 802.1Q, 802.1p VLAN tags and priority

   - IEEE802.1Qau (QCN) – Congestion Notification

   - IEEE 802.1Qaz (ETS)

   - IEEE 802.1Qbb (PFC)

   - IEEE 802.1Qbg

   - IEEE 1588v2

   - Jumbo frame support (9.6KB)



CPU Offload Features

   - RDMA over Converged Ethernet (RoCE)

   - TCP/UDP/IP stateless offload

   - LSO, LRO, checksum offload

   - RSS, TSS, HDS, VLAN insertion/stripping. Receive flow

    steering

   - Intelligent interrupt coalescence



Storage Offloads

   - RAID offload - erasure coding (Reed-Solomon) offload



Overlay Networks

   - Stateless offloads for overlay networks and tunneling protocols

   - Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks



Hardware-Based I/O Virtualization

   - Single Root IOV

   - Multi-function per port

   - Address translation and protection

   - Multiple queues per virtual machine

   - Enhanced QoS for vNICs

   - VMware NetQueue support



Virtualization Features

   - SR-IOV: up to 256 Virtual Functions

   - SR-IOV: up to 16 Physical Functions per port

   - 1K ingress and egress QoS levels

   - Guaranteed QoS for VMs



Operating Systems/Distribution

   - RHEL/CentOS

   - Windows

   - FreeBSD

   - VMware

   - OpenFabrics Enterprise Distribution (OFED)

   - OpenFabrics Windows Distribution (WinOF-2)



Management Features

   - Asset Management features with thermal sensor

   - NC-SI for IPMI Support



Remote Boot

   - Remote boot over iSCSI

   - PXE and UEFI



Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C



Physical Dimensions

   - Card PCB dimensions: 16.76cm x 6.89cm (6.6in x 2.71in) (LxW)

   - Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in)



Weight

   - 116.12g (0.2560lb)



Supported Platforms

   - Supermicro® motherboards with minimum PCI-E 3.0 x16 expansion slot

   - Supermicro® server systems with low-profile or full-height PCI-E 3.0 x16 expansion slot

   - NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors



Parts List
Product Part Number Form Factor Speed PCI-E Connector Type Total Ports Chipset
AOC-S40G-i1Q Standard Low Profile 40GbE PCI-E 3.0 x8 QSFP+ 1 Intel XL710
AOC-S40G-i2Q Standard Low Profile 40GbE PCI-E 3.0 x8 QSFP+ 2 Intel XL710
AOC-S100G-M2C Standard Low Profile 100GbE PCI-E 3.0 x8 QSFP28 2 Mellanox ConnectX-4 EN


Optional Parts List
  Part Number Qty Description
Ethernet CBL-NTWK-0942-MQ28C05M - Ethernet, QSFP28, 100GbE, Passive, 0.5M
Ethernet CBL-NTWK-0942-MQ28C10M - Ethernet, QSFP28, 100GbE, Passive, 1M
Ethernet CBL-NTWK-0942-MQ28C15M - Ethernet, QSFP28, 100GbE, Passive, 1.5M
Ethernet CBL-NTWK-0942-MQ28C20M - Ethernet, QSFP28, 100GbE, Passive, 2M
Ethernet CBL-NTWK-0942-MQ28C25M - Ethernet, QSFP28, 100GbE, Passive, 2.5M
Ethernet CBL-NTWK-0942-MQ28C30M - Ethernet, QSFP28, 100GbE, Passive, 3M
Ethernet CBL-NTWK-0943-SQ28C10M - Ethernet, QSFP28, 100GbE, Passive, 1M
NC-SI Cable CBL-OTHR-0795 - 14CM NC-SI Cable (cable is not supported in all motherboards)
