Add-on Card AOC-SHG3-4M2P
Products Accessories [ AOC-SHG3-4M2P ]
Add-on Card

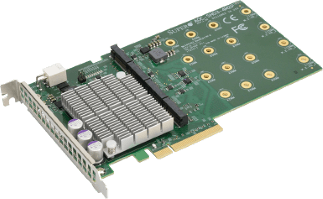

Supermicro PCI-E 3.0 carrier card for up to four NVMe M.2 SSDs

The Supermicro AOC-SHG3-4M2P M.2 NVMe SSD carrier AOC features four internal sockets for 4 different lengths of M.2 SSD coupled with an on-board switch allowing dense storage with intense performance. Designed for flexibility, this AOC fits a standard PCI-E 3.0 x8 slot and will require minimal, if any, BIOS or OS modifications to work instantly. This robust add-on card will address the growing demand for increased storage performance and scalability for a diverse range of solutions; from entry-level SMB systems to enterprise class server platforms. Ideal for embedded/IPC solutions and desktop/gaming station solutions, NVMe SSDs outperform current SAS/SATA SSDs several times over.

Form factor: PCI-E 3.0 x8 full-height (FH).

Includes both tool-less and metal adjustable stand-offs that can support four standard M.2 lengths:

22x110mm
22x80mm
22x60mm
22x42mm

This product is only available through Supermicro.
Compliance
RoHS
  • RoHS Compliant 6/6, Pb Free

Key Features

• Supports up to 4 NVMe M.2 SSDs
• Standalone NVMe M.2 carrier
• Supports 10°C - 50°C with sufficient airflow
• OS Support : Windows, Linux
• Operating Temp: 0° to 55°C
Dimensions
H x L
4.4" x 7.5"

Validated Platforms
Servers/Serverboards
SYS-6029U-TR4T
SYS-7049GP-TRT
X10DGQ
X11DPG-QT
X11DPU
X11SSZ-F
Downloads
User's Guide [ Download ]
Parts List
Part Number Qty Description
Add-on Card AOC-SHG3-4M2P 1 Full Height, Quad-port M.2 NVMe SSD PCI-E 3.0 add-on card
