Add-on Card


Supermicro M.2 SATA/NVMe Hybrid Stacked Carrier Card for TwinPro™



Perfectly streamlined for the TwinPro™, the Supermicro Stacked SATA/NMVe M.2 Carrier Card AOC-SMG3-2H8M2 features 2 M-key connectors for x2 NVMe or SATA M.2 SSDs. It auto-detects SATA or NVMe protocols. Both NVMe M.2 SSDs are linked to 4 lanes of PCI-E 3.0 bandwidth. User-visible LEDs are present to monitor the activities and status of each SSD. It delivers a cost-effective and reliable storage solution with SATA and NVMe drives.

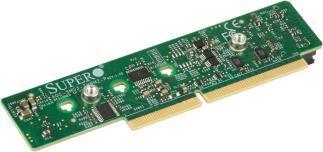

AOC-SMG3-2H8M2 - angled view
AOC-SMG3-2H8M2 - back view


This product is only available through Supermicro.

Compliance
RoHS

  • RoHS Compliant 6/6, Pb Free



Key Features


  • Stacked Hybrid (NVMe or SATA) M.2 Carrier Card for TwinPro™
  • Supports x2 M-key connectors for the following 80mm, 60mm, and 42mm lengths
  • Auto-detects SATA or NVMe M.2
  • Either 1x NVMe M.2 SSD or 2x SATA M.2 SSDs functionality only
  • Each NVMe M.2 SSD links to a full x4 PCI-E
  • User-visible LEDs on each SSD for Activity
  • Supports OS boot and OS redundancy
  • OS Support : Windows, Linux, and VMWare

Dimensions
H x L

1.21" x 4.43"

Validated Platforms
Servers/Serverboards

SYS-1029TP-DC0R

SYS-1029TP-DTR

SYS-2029TP-HC0R

SYS-2029TP-HTR

SYS-6029TP-HC0R

SYS-6029TP-HTR

X10DRT-PS

X11DPT-PS




Downloads
User's Guide [ Download ]
Parts List
  Part Number Qty Description
Add-on Card AOC-SMG3-2H8M2 1 Supermicro M.2 SATA/NVMe Hybrid Stacked Carrier Card for TwinPro™
