- Discontinued SKU (EOL). Please contact sales-rep for alternative options.

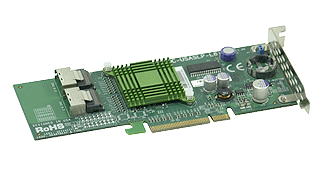

Supermicro Low Profile 3Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro UIO MegaRAID Low Profile AOC-USASLP-L8i feature 8 internal SAS connectors for high-performance storage connectivity.
Using a Broadcom 1068E I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth, these UIO internal RAID adapters deliver an intelligent and robust RAID solution.
The AOC-USASLP-L8i supports 122 HDD with IT mode (HBA mode).
This product is only available through Supermicro.
RoHS Compliant 6/6
2.71" x 6.6 " (H x L)
Broadcom 1068E SAS Low Profile controller
8-port (internal), 3Gb/s per port
Supports 122 HDD with IT mode (HBA mode)
Better performance compare with SWR5 and IR modes
16MB onboard SRAM
Supports MegaRAID Storage Manager Software
Automatically negotiates PCI-E link widths
Power management support
Supports 1.5 and 3.0 Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
OS Support : Windows 2000/XP/2003, RedHat Enterprise and SUSE Linux
