Drive Kit MCP-220-84610-0N

  Products  Accessories   [ MCP-220-84610-0N ]

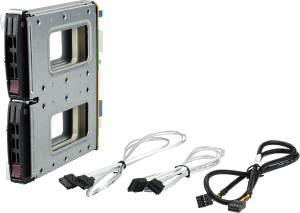

MCP-220-84610-0N Drive Kit

Key Features

1. 12G Rear 2.5" x2 Drive Kit
2. Hot-swappable SAS3/SATA3 Drives
3. Drive Activity and Status(Fail) LED Support
4. Tool-less HDD Trays
5. SGPIO and 6G data cables are included
6. Optional 12G cable CBL-SAST-0699 (internal mini SAS HD to 4 SAS/SATA) available

Manual Download Manual
  • 1"W x 6.7"H x 6"D (25mm x 170 x 152mm)
Gross Weight
  • 1.5 lbs (0.68 Kgs)
Available Colors
  • No Paint
  • 2x 2.5" Drive Bays
  • 2x 2.5" Hot-swap SAS/SATA Hard Drives
Cooling Subsystem
  • N/A (via chassis fan)
System Monitoring
  • Drive Activity LED and Failure LED
Chassis • SC846B Series

Standard Parts List
  Part Number Qty Description
HDD Backplane BPN-SAS3-826TQ-B2B 1 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
HDD Tray MCP-220-00147-0B 2 Black gen-3 hot-swap New 2.5" Tool-less HDD tray
Cable CBL-CDAT-0841 1 8 pin to 8 pin round SGPIO cable, 81cm, 28AWG, pinout 1-1
Cable CBL-0481L(81cm) 2 81CM 30AWG SATA S-S cable
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0699(75cm) -- Internal 12G mini SAS HD to 4 SAS/SATA, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH
