Mobile Rack M28SACB

  Products  Accessories  Mobile Rack   [ M28SACB ]

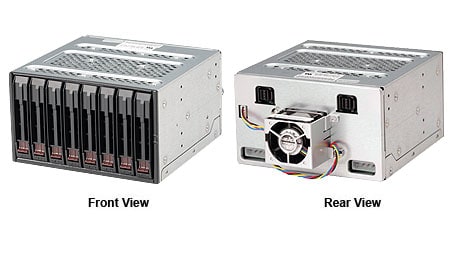

M28SACB Mobile Rack

Key Features

1. 8x 2.5" Hot-swap SAS3/SATA3 HDDs
2. Overheat LED and Alarm
3. Drive Activity / Failure LED
4. 2x 5.25" Drive Bay Enclosure
5. 2x Mini SAS HDD Connectors
6. 4cm Cooling Fan 12.5K RPM 16 CFM

Available Colors
Manual Download Manual
  • 5.75" x 3.35" x 7.38" (146x85x187 mm)
  • 10.0" x 8.0" x 13.5" (package)
Gross Weight
  • 4.8 lbs (2.18 kg) - with package

    3.2 lbs (1.44 kg) - Mobile rack only
Available Color
  • Black (CSE-M28SACB)
  • 2x 5.25" Drive Bays
  • 8x 2.5" Hot-swap SAS3/SATA3 HDD trays
Cooling Subsystem
  • 40mm x 28mm Cooling Fan, 12.5K RPM, 16CFM (FAN-0061L4)
  • Direct attached
System Monitoring
  • Overheat LED and Alarm
  • Drive Activity LED and Failure LED
Chassis • SC842 Series

• SC835 Series

• SC743, SC745, SC747, SC748 Series


Standard Parts List
  Part Number Qty Description
Mobile Rack CSE-M28SACB 1 SAS3 Mobile Rack CSE-M28SACB with fan
Drive Trays MCP-220-00090-0B 8 Black gen 3.5 hot swap 2.5" HDD tray
Backplane BPN-SAS3-I28A 1 SAS3 BPN - 8x2.5" SSD/HDD hotswap drive bays for CSE-M28SAC chassis,overheat indicator,SGPIO support SES2 mngt,2 mini-SAS HD connector(SFF-8643),1 fan connector with fan fail detection
Cooling Fan FAN-0061L4 1 40X28mm 4-PIN PWM Fan
Optional Parts List
  Part Number Qty Description
Cables CBL-SAST-0531






Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s

Mini-SAS to Mini-SAS HD 80cm w/ SB, 30AWG

Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
