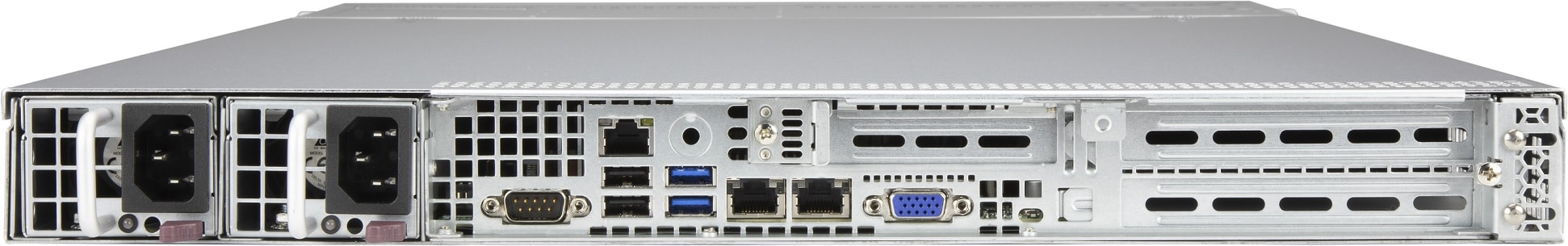

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
  2. 4 x 3.5" hot-swap SAS3/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
  5. 1U 500W/600W redundant single output 80PLUS Platinum
  6. 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
  7. 4 x 40x56mm counter-rotation PWM fan(s)
  8. Optional 2 x fans for AOC cooling
Specifications
Product SKUs
CSE-815TQC4-R504WB3
  • SuperChassis 815TQC4-R504WB3

Form Factor
  • 1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
  •
    Processor Support
  • Single and Dual Intel® and AMD processors
  •
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 36 lbs (16.33 kg)
    Packaging (W x H x L)
    • 23.6" (599 mm) x 7.9" (201 mm) x 34.1" (866 mm)
    Available Color
    • Black

    Expansion Slots
    • 2 full-height & full-length expansion slot(s)
    • 1 low-profile expansion slot(s)

    Drive Bays
    • 4 x 3.5" hot-swap SAS3/SATA drive bay
    • SAS or enterprise SATA HDD only recommended

    Backplane
    • 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 4 x 40x56mm counter-rotation PWM fan(s)
    • Optional 2 x fans for AOC cooling

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 500W/600W redundant single output 80PLUS Platinum
    Power Efficiency
    • 92%
    Total Output Power and Input
    • 500W with Input 100 - 127Vac
    • 600W with Input 200 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 42A (100Vac - 127Vac)
    • Max: 50A (200Vac - 240Vac)
    • Max: 50A
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT112-S2424
    • O/P: 12V/54
    • +5V Max: 25
    • +3.3V Max: 25
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • CCC
    • CE/EMC
    • FCC
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-19002-0N1SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    HD BackplaneBPN-SAS3-815TQ-N414-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
    Cable(s)CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    Cable(s)CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)MCP-230-00036-0N1Top cover with 1 mylar for SC815 (cost-down)
    Part(s)MCP-240-00099-0N11U WIO riser card bracket for SC113, SC815, SC119, SC819
    Part(s)MCP-270-81505-0N1Chassis base for SC815T, U version, Redundant PWS(cost-down)
    Part(s)MCP-290-00088-0N1SC119 Intrusion assembly
    CD-ROM & AccessoryCSE-PT93L-B1Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    Fan(s)FAN-0141L4440x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Fan(s)FAN-0163L4440x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    Front PanelFPB-FP815U1815 UIO front control board (U)
    Cooling Fan & AccessoryCSE-PT01351FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    Cooling Fan & AccessoryMCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    Power DistributorPDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    Part(s)MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    Part(s)MCP-120-00053-0N2Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
    Power Supply & AccessoryMCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    Power Supply & AccessoryPWS-504P-1R2500W 1U Redundant PWS W/ 54.5MM Wide
    Power Supply & AccessoryPWS-504P-1R221U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS
    Mounting Rail(s)MCP-290-00054-0N1setRail set, quick/quick, optional for 1U 17.2
    Rear WindowMCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS
    Optional Parts List
      Part Number Qty Description
    Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
    Front Bezel CSE-PTFB-813LB (black) - Front Bezel Cover with Key Lock & Filter, Black, Beige, LCD options
    Front Tray CSE-PT40 (B) - Front USB and COM tray (Occupies Slim Floppy Drive Location)
    Heatsink / Retention N/A - Please refer to our Thermal Components Matrix
    LCD/OLED Solutions N/A - Please reference the LCD/OLED Display Solutions for details
    Mounting Rail MCP-290-00056-0N - 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis
    Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - Black slim SATA DVD (8x DVD, 24x CDR), Panasonic
    Peripheral Drive(s) MCP-220-81502-0N - Slim SATA DVD kit (include backplane, cable)
    Tray(s) MCP-290-00036-0B - Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick)
    Drive Trays MCP-220-00116-0B - Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
    Motherboard (for CSE- 815TQC4-R504WB3)
    X12SPW-TF X12SPW-F
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
