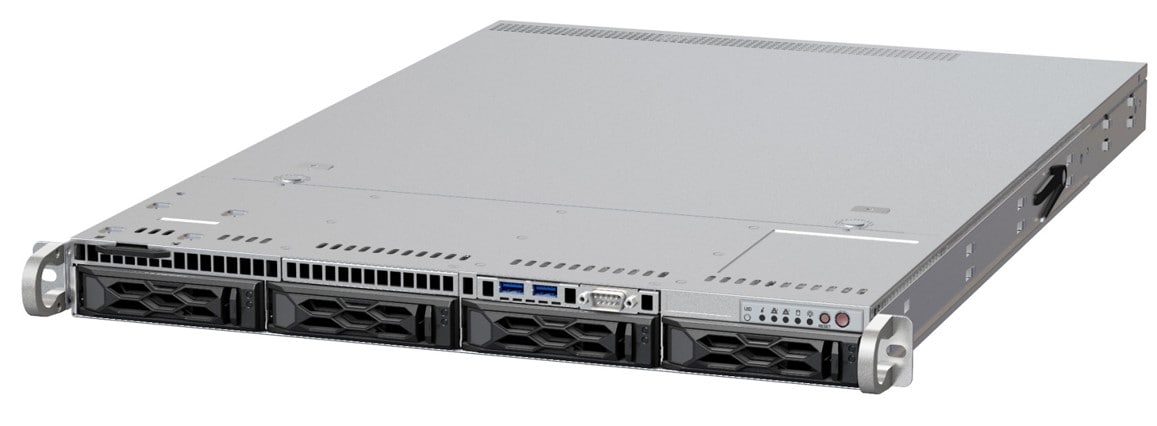

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
  2. 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 1U SAS/SATA Backplane with SES2 support
  5. 1U 500W Redundant power supply Platinum level, 24Pin output
  6. 2x full-height & full-length expansion slot(s) 1x low-profile expansion slot
  7. 3 x 40x56mm counter-rotation PWM fan(s)
  8. Support Service Tag for system information
  9. OEM Only, MOQ Applies

Specifications
Product SKUs
CSE-LA15TQC-R504W
  • SuperChassis LA15TQC-R504W

Form Factor
  • Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
  •
    Processor Support
  • Dual, single Intel® / AMD processors
  •
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 28 lbs (12.7 kg)
    Packaging (W x H x L)
    • 23.2" (589 mm) x 7.1" (180 mm) x 32.1" (815 mm)
    Available Color
    • Black

    Expansion Slots
    • 2x full height expansion slot(s), 1x low-profile expansion slot

    Drive Bays
    • 4 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay
    • SAS or enterprise SATA HDD only recommended

    Backplane
    • 1U 4-Port 12Gbps Backplane Support 4x3.5

    Peripheral Drives
    • Optional 1 x USB + COM port tray
    • Optional 1 x 2.5" internal fixed drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 3 x 40x56mm counter-rotation PWM fan(s)

    System Monitoring
    • Optional Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 500W/600W redundant single output 80PLUS Platinum
    Power Efficiency
    • 92%
    Total Output Power and Input
    • 500W with Input 100 - 127Vac
    • 600W with Input 200 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 42A (100Vac - 127Vac)
    • Max: 50A (200Vac - 240Vac)
    • Max: 50A
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT112-2420
    • O/P: 12V/54
    • +5V Max: 25
    • +3.3V Max: 25
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • CCC
    • CE/EMC
    • FCC
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable(S)CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    Fan(s)FAN-0156L4340x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    Front PanelFPB-FP815U1815 UIO front control board (U)
    Cooling Fan & AccessoryCSE-PT01351FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    Cooling Fan & AccessoryMCP-340-00035-0B3Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)MCP-220-00184-0B4Black gen-9 tool-less cost-effective 3.5" HDD tray (no dummy)
    Power DistributorPDB-PT116-L882411U cost effective Power Distributor Board support up to 1KW,
    Part(s)MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    Part(s)MCP-120-00053-0N2Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
    Power Supply & AccessoryPWS-504P-1R22AC-DC/DC-DC 500W, Platinum efficiency, AC inlet: C14,RoHS
    Power Supply & AccessoryMCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    Mounting Rail(s)MCP-290-00105-0N1 setInner rail, front, screw type
    Rear WindowMCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS
    Optional Parts List
      Part Number Qty Description
    Heatsink / Retention N/A - Please refer to our Thermal Components Matrix
    Front Tray MCP-220-81510-0N - USB 3.0 + COM tray kit for LA15 (cost-effective)
    Hard Drive Carrier MCP-220-81511-0N - FDD size Tray support 1x 2.5" HDD for LA15 (cost-effective)
    Rail MCP-290-00102-0N - Outer rail, quick-release type, 25.6" to 33.05"
    Rail MCP-290-00056-0N - Short outer rail, /quick, optional for 1U 17.2
    Chassis parts MCP-290-00088-0N - SC119 Intrusion assembly
    Air Shroud MCP-310-81305-0B - Mylar air shroud for 1U X11SPW-TF,RoHS
    Air Shroud MCP-310-19019-0B - SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
