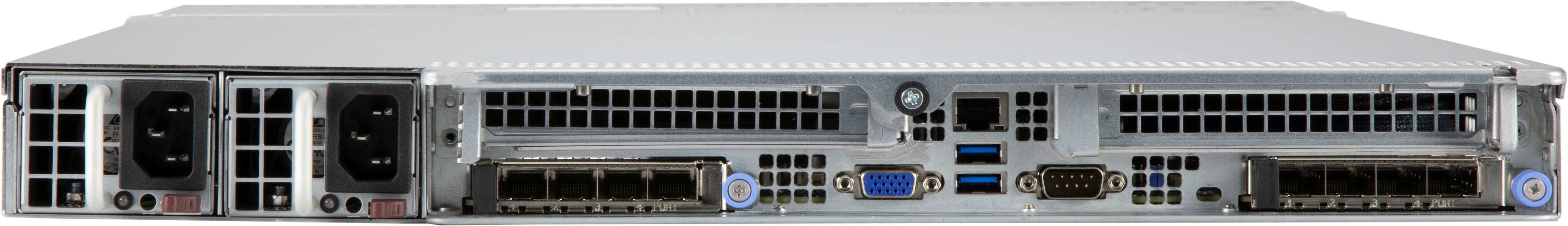

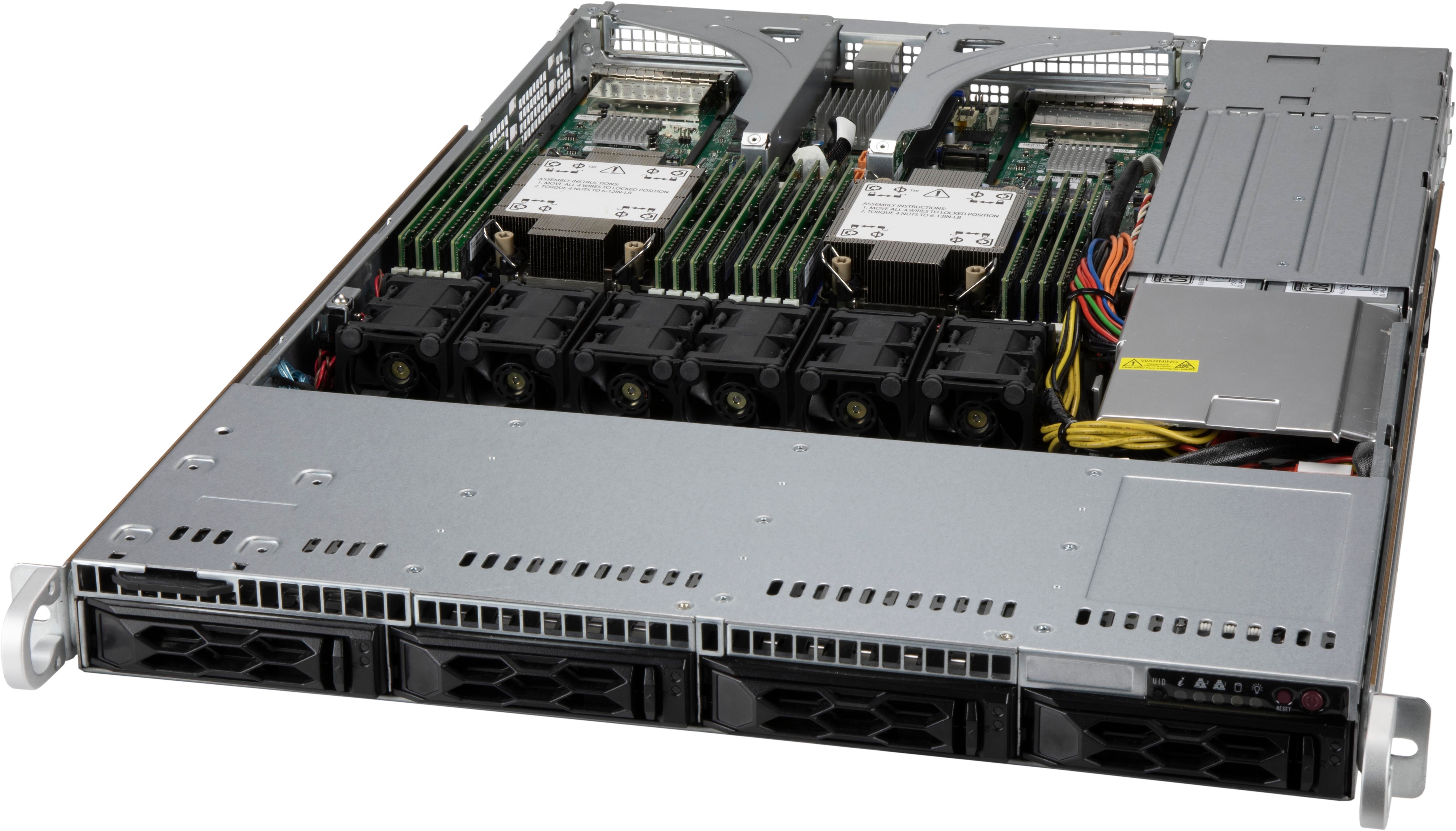

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
  2. 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 1U SAS/SATA Backplane with SES2 support
  5. 1U 860W Redundant power supply Platinum level, 24Pin output
  6. 2x full-height & full-length expansion slot(s) 2x S-AIOM expansion slot(s)
  7. 4 x 40x56mm counter-rotation PWM fan(s) by default, 2x as optional
  8. Support Service Tag for system information

Product SKUs
  • SuperChassis LA15TQC-R860AW
Form Factor
  • 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
    Processor Support
  • Dual, single Intel® / AMD processors
    • 1.7" (43 mm)
    • 17.2" (437 mm)
    • 25.6" (650 mm)
    Gross Weight
    • 28 lbs (12.7 kg)
    Packaging (W x H x L)
    • 23.7" (602 mm) x 7.7" (196 mm) x 34.1" (866 mm)
    Available Color
    • Black
    Expansion Slots
    • 2x full height expansion slot(s), 2x S-AIOM expansion slot(s)
    Drive Bays
    • 4 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay
    • SAS or enterprise SATA HDD only recommended
    • 1U 4-Port 12Gbps Backplane Support 4x3.5
    Peripheral Drives
    • Optional 1 x USB + COM port tray
    • Optional 1 x 2.5" internal fixed drive bay
    Front Panel
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    • Unit Identification (UID) LED
    Systems Cooling
    • 4 x 40x56mm counter-rotation PWM fan(s)
    System Monitoring
    • Optional Chassis intrusion switch
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    800W/860W 1U redundant power supply
    Power Efficiency
    • 94+%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 860W with Input 200 - 240Vac
    • 860W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    • Max: 66.6A (100Vac - 127Vac)
    • Max: 71.6A (200Vac - 240Vac)
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT116-SL8824
    • O/P: 12V/80
    • +5V Max: 25
    • +3.3V Max: 25
    • -12V Max: 0.6
    • Platinum Certified  Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • UL/CB
    • UL/CUL
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable(s)CBL-CDAT-0680-551[NR]FRNT CNTL,FLAT,IDC 2x10,PH1.27 TO 2x10,PH1.27,55CM,28AWG
    Cable(s)CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)MCP-120-00116-0N2Blank FH L-bracket with 4x4 vent holes
    Part(s)MCP-220-81509-0N2USB 3.0 + COM Port Dummy cover for LA15 (cost-effective)
    Part(s)MCP-230-81502-0N11U AWIO top cover with 1 mylar for CSE-LA15 AW
    Part(s)MCP-240-00175-0N2S-AIOM Dummy Cover for 1U chassis
    Part(s)MCP-240-00177-0N2S-AIOM metal cage for 1U chassis
    Part(s)MCP-240-00179-0N11U X12 AWIO Riser card bracket (Left) for LA15,LB16,LB13 AW
    Part(s)MCP-240-00180-0N11U X12 AWIO Riser card bracket (Right) for LA15,LB16,LB13 AW
    Part(s)MCP-290-00088-0N1SC119 Intrusion assembly
    Part(s)MCP-270-81506-0N1Chassis base for CSE-LA15,WIO, Redundant PWS
    Fan(s)FAN-0101L4440x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Front PanelFPB-FP815U1815 UIO front control board (U)
    Cooling Fan & AccessoryMCP-320-00056-0B2440X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
    Cooling Fan & AccessoryMCP-320-00066-0B1Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
    Cooling Fan & AccessoryMCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)MCP-220-00184-0B4Black gen-9 tool-less cost-effective 3.5
    Power DistributorPDB-PT116-SL88241Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
    Part(s)MCP-320-00067-0B1Chassis base Air Foam block set (L+R) for Cloud-DC
    Part(s)MCP-160-00028-0B1Mylar Cable Channel for Cloud-DC, X12 DDW
    Power Supply & AccessoryMCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    Power Supply & AccessoryPWS-860P-1R221U 860W, Redundant power supply, 54.5mm width, Platinum with
    Mounting Rail(s)MCP-290-00054-0N1setRail set, quick/quick, optional for 1U 17.2
    Rear WindowMCP-240-00173-0N11U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
    Optional Parts List
      Part Number Qty Description
    Heatsink / Retention N/A - Please refer to our Thermal Components Matrix
    Front Tray MCP-220-81510-0N - USB 3.0 + COM tray kit for LA15 (cost-effective)
    Hard Drive Carrier MCP-220-81511-0N - FDD size Tray support 1x 2.5" HDD for LA15 (cost-effective)
    Rail MCP-290-00102-0N - Outer rail, quick-release type, 25.6" to 33.05"
    Rail MCP-290-00056-0N - Short outer rail, /quick, optional for 1U 17.2
    Chassis parts MCP-290-00088-0N - SC119 Intrusion assembly
    Air Shroud MCP-310-81305-0B - Mylar air shroud for 1U X11SPW-TF,RoHS
    Air Shroud MCP-310-19019-0B - SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
