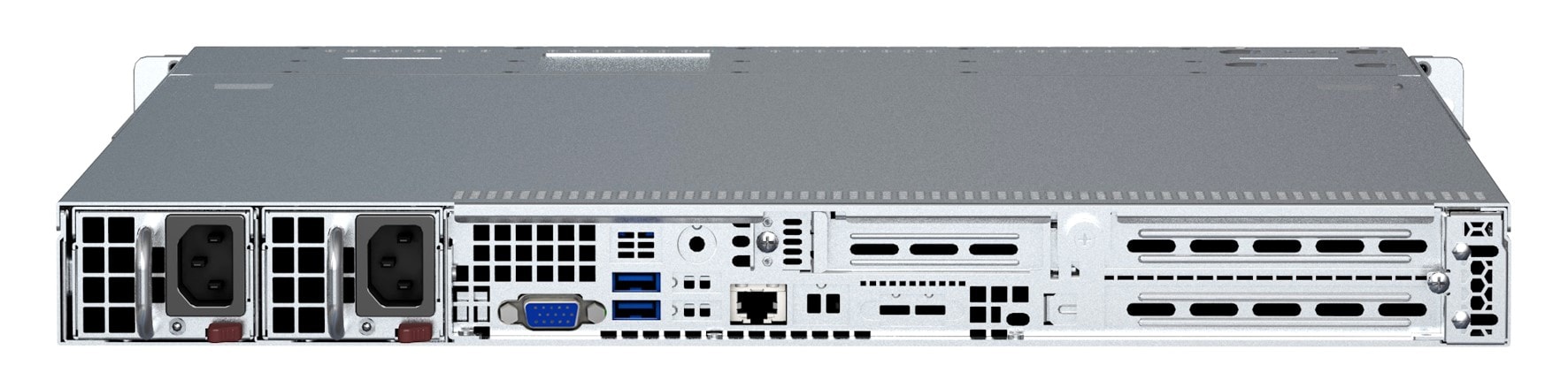

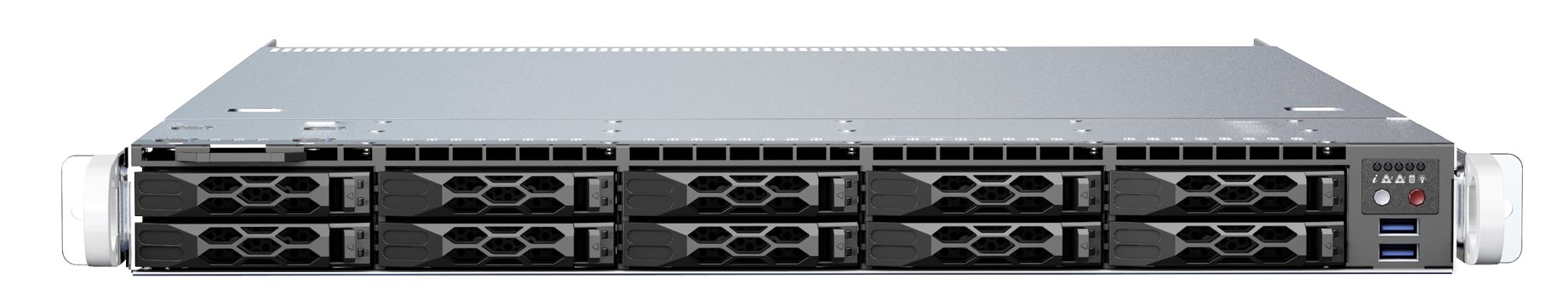

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. SAS3 12Gb/s and NVMe support

    Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
  2. 10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 1U SAS/SATA Backplane with SES2 support
  5. 1U 500W Redundant power supply Platinum level, 24Pin output
  6. 2x full-height & full-length expansion slot(s) 1x low-profile expansion slot
  7. 3 x 40x56mm counter-rotation PWM fan(s)
  8. Support Service Tag for system information
  9. OEM Only, MOQ Applies

Specifications
Product SKUs
CSE-LB16AC2-R504W
  • SuperChassis LB16AC2-R504W

Form Factor
  • Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 23.5" (597 mm)
Gross Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 23.1" (587 mm) x 6.9" (175 mm) x 32.2" (818 mm)
Available Color
  • Black

Expansion Slots
  • 2x Full-height expansion slot(s)
  • 1x Low-profile expansion slot(s)

Drive Bays
  • 10x 2.5" hot-swap SAS3/SATA drive bay

Backplane
  • 10-Port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices

Front Panel
Button
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
Port
  • 2x USB 3.0 Port(s)
Systems Cooling
Fans
  • 3x 40x56mm counter-rotation PWM fan(s)

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 500W/600W redundant single output 80PLUS Platinum
Power Efficiency
  • 92%
Total Output Power and Input
  • 600W with Input 200 - 240Vac
  • 500W with Input 100 - 127Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 322 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 50A / Min: 0A (200Vac - 240Vac)
  • Max: 42A / Min: 0A (100Vac - 127Vac)
  • Max: 50A / Min: 0A
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT116-L8824
  • O/P: 12V/80
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
Components
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable(s) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Part(s) MCP-230-00038-0N 1 Top cover with 1 mylar for SC113, 116
Part(s) MCP-240-00099-0N 1 1U WIO riser card bracket for SC113, SC815, SC119, SC819
Part(s) MCP-270-00023-0N 1 1U SC116 chassis base(Redundant Power)
Fan(s) FAN-0101L4 3 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Front Panel FPB-FP116-DU3 1 Front control board with two USB 3.0 for SC116/SC119X
Cooling Fan & Accessory MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan
Cooling Fan & Accessory MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
Cooling Fan & Accessory MCP-340-00035-0B 3 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00188-0B 10 Black gen-5.5 tool-less cost-effective 2.5" HDD tray (no dummy)
Power Distributor PDB-PT116-L8824 1 1U cost effective Power Distributor Board support up to 1KW,
Part(s) MCP-120-00029-0N 2 Blank FH L bracket without SCSI cutout for SC815,823
Part(s) MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole)
Power Supply & Accessory MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
Power Supply & Accessory PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
Power Supply & Accessory PWS-504P-1R2 2 1U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS
Mounting Rail(s) MCP-290-00107-0N 1 Set Inner rail, front, short, screw type
Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS
Optional Parts List
  Part Number Qty Description
Air Shroud MCP-310-81305-0B - Mylar air shroud for 1U X11SPW-TF,RoHS
MCP-310-19019-0B - SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
MCP-310-81306-0B - Mylar air shroud for 1U X12SPW-TF,RoHS
Chassis parts MCP-290-00088-0N - SC119 Intrusion assembly
Rail MCP-290-00102-0N - Outer rail, quick-release type, 25.6" to 33.05"
MCP-290-00063-0N - Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Motherboard (for CSE-LB16AC2-R504W)
X12SPW-TF H12SSW-iN X12SPW-F H12SSW-NT
X12SPW-F X12SPW-TF
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
