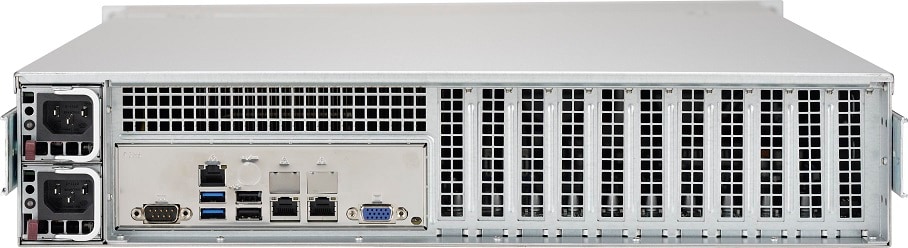

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
  2. 16 x 2.5" hot-swap SAS3/SATA drive bay
  3. 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 800/1000W Redundant Power Supply 38mm Width
  5. 11 low-profile expansion slot(s)
  6. 4 x 8cm high-performance PWM fan(s)
Specifications
Product SKUs
CSE-213XAC-R1K05LP
  • SuperChassis 213XAC-R1K05LP

Form Factor
  • 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Gross Weight
  • 58 lbs (26.31 kg)
Packaging (W x H x L)
  • 26.4" (671 mm) x 11.3" (287 mm) x 39.8" (1011 mm)
Available Color
  • Black

Expansion Slots
  • 11x Low-profile expansion slot(s)

Drive Bays
  • 16x 2.5" hot-swap SAS3/SATA drive bay

Backplane
  • 16-Port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1x slim DVD-ROM drive bay
  • Optional 1x COM port tray
  • Optional 2x USB 2.0 ports
  • 1x standard 5.25" drive bay

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
Systems Cooling
Fans
  • 4x 8cm high-performance PWM fan(s)

System Monitoring
  • Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800/1000W Redundant Power Supply 38mm Width
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 127Vac
  • 1000W with Input 200 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 360 x 38 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66.7A / Min: 0A (100Vac - 127Vac)
  • Max: 83A / Min: 0A (200Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT213X-3824
  • O/P: 12V/100A
  • +5V Max: 45A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Components
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-00078-0B 1 Mylar Air Shroud for SC213X (X10DRX)
HD Backplane BPN-SAS3-213A 1 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Part(s) MCP-230-21302-0N 1 Top cover for SC213X
Part(s) MCP-290-82605-0V 1 826 handle
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0190L4 4 80x80x38 mm, 10.5K RPM, Middle Cooling Fan for SC213X Chassis
Front Panel MCP-280-00018-0N 1 SC826 front control board adapter
Drive Tray(s) MCP-220-00009-01 1 Black 5.25"; drive tray w/o rail (square pattern)
Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Drive Tray(s) MCP-220-00047-0B 16 Black gen 3rd hot-swap 2.5inch HDD tray
Power Distributor PDB-PT213X-3824 1 Power Distributor Board support stick redundant power supplies
Power Supply & Accessory PWS-1K05A-1R 2 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
Rear Window MCP-240-21302-0N 1 11 LP Slot rear window for SC213X
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0591 - cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF
CBL-SAST-0508-01 - Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
CBL-SAST-0568 - Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
DVD-ROM / DVD-RW MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
Front USB MCP-220-00007-01 - Black USB/COM port tray for SC825, 836
HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
Tray(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Servers (for CSE-213XAC-R1K05LP)
SYS-2028R-TXR SYS-2029P-TXRT
Motherboard (for CSE-213XAC-R1K05LP)
X10DRX X9DRX+-F X11DPX-T
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
