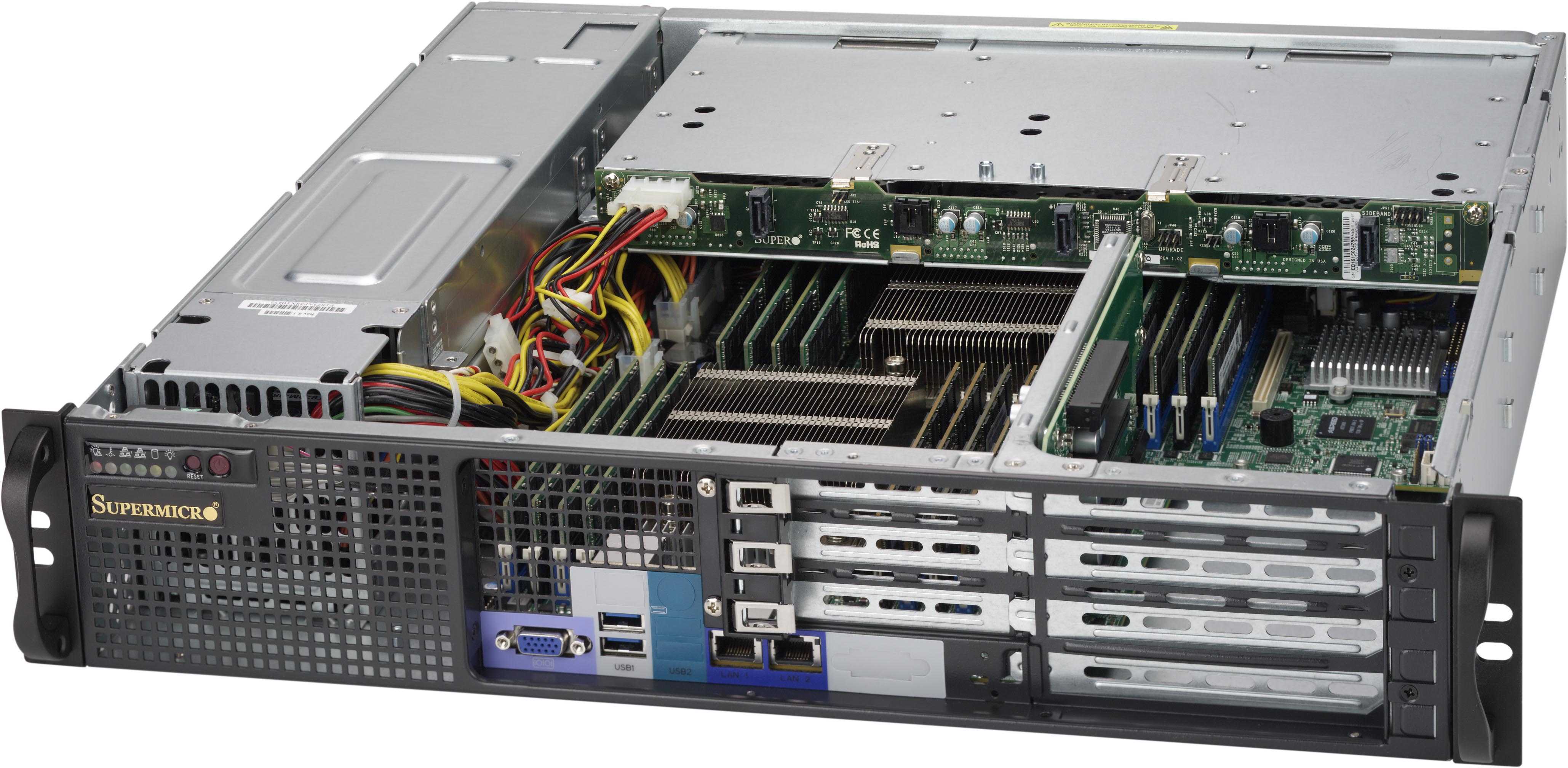

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis - supports for maximum motherboard sizes: SMC Proprietary WIO, 12.8" x 13.4" motherboards
  2. 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  3. 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  5. 4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
  6. 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  7. Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Specifications
Product SKUs
CSE-823MTQC-R802WB
  • SuperChassis 823MTQC-R802WB

Form Factor
  • 2U chassis - supports for maximum motherboard sizes: SMC Proprietary WIO, 12.8" x 13.4" motherboards
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 17.7" (450 mm)
    Gross Weight
    • 42 lbs (19.05 kg)
    Packaging (W x H x L)
    • 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm)
    Available Color
    • Black

    Expansion Slots
    • 4 full height expansion slot(s) (Riser Card Required)
    • 3 low-profile expansion slot(s) (Riser Card Required)

    Drive Bays
    • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO

    Backplane
    • 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Systems Cooling
    Fans
    • 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
    • Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 240Vac
    • 800W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66A (100Vac - 240Vac)
    • Max: 66A (200 - 240)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT823M-8824
    • O/P: 12V/75A
    • +5V Max: 30A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified  Titanium Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-29019-0N1SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
    HD BackplaneBPN-SAS3-825MTQ-P13-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable(S)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable(S)CBL-0160L2US POWER CORD 16AWG, PB FREE
    Fan(s)FAN-0157L4440x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
    Front PanelFPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    Cooling Fan & AccessoryMCP-320-82301-0B1Fan Tray for Six 4056 Fans
    Cooling Fan & AccessoryMCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)MCP-220-00075-0B3Black gen 5.5 hot-swap 3.5" HDD tray
    Drive Tray(s)MCP-220-82301-0N 1HDD cage housing 3 trays for SC823M
    Power DistributorPDB-PT823M-88241SC823M 24PIN REDUNDANT POWER DISTRIBUTOR
    Power Supply & AccessoryPWS-802A-1R21U 800W 100-240Vac/47-63Hz, and DC240 input
    Mounting Rail(s)MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2";W
    Rear WindowMCP-240-82304-0N 1SC823M rear window
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00058-0N 1 Ball bearing quick release rail for shor-depth rack (19"~26.6")
    Cable CBL-0044L 3 SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat
    Cable CBL-0157L 1 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
    Cable CBL-SAST-0948 1 MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG
    Chassis parts MCP-290-82302-0N 1 Dummy HDD cover for SC823M
    Drive Trays MCP-220-82302-0N 1 2.5" or 3.5" fixed HDD tray for SC823M
    Motherboard (for CSE- 823MTQC-R802WB)
    X11DDW-L X11DDW-NT
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
