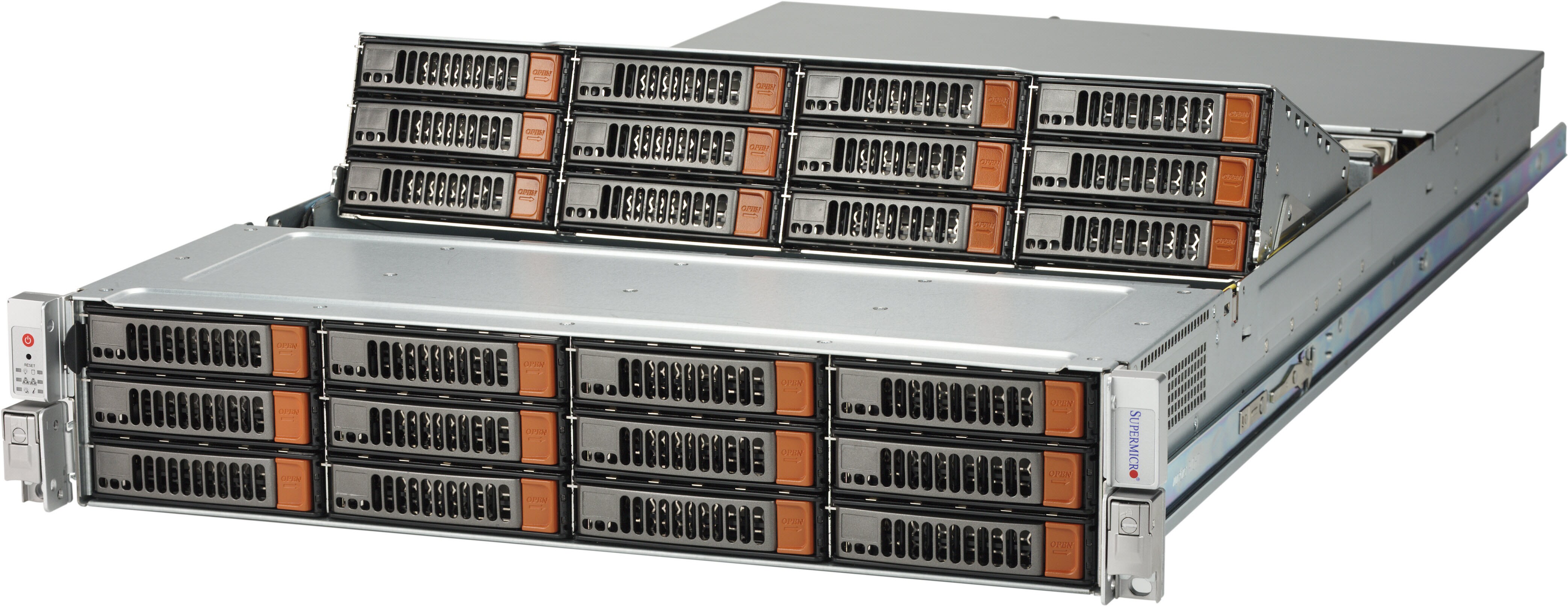

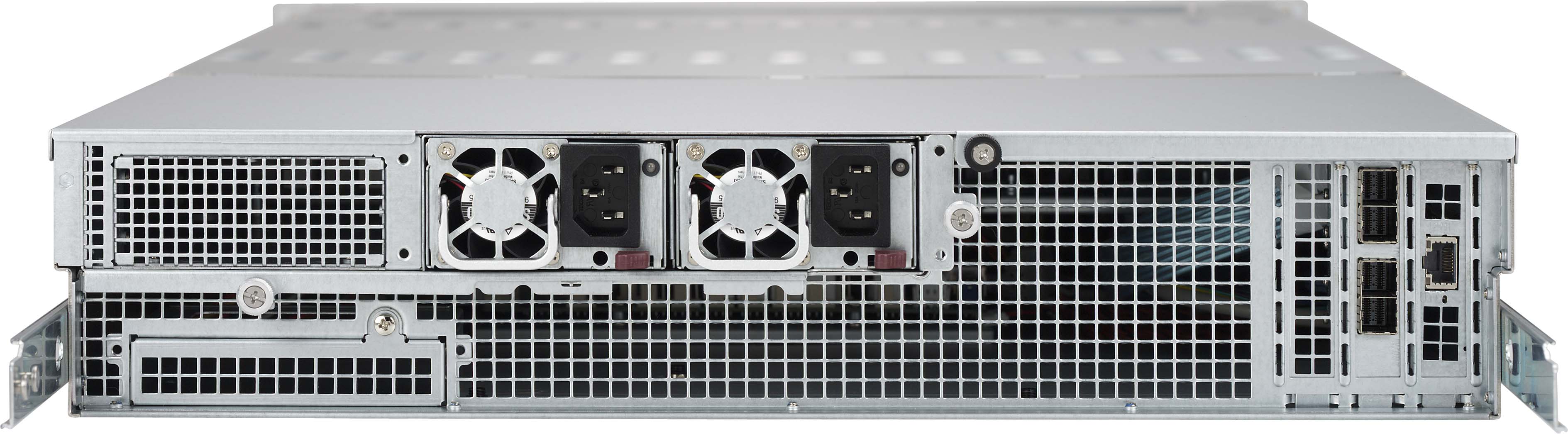

  • Simply Double High Density JBOD Storage Enclosure

Key Features
  1. Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays
  2. Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput
  3. 4x Mini-SAS HD ports for Internal/External Cascading
  4. 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus
  5. Optimize cooling with 5x 8cm Hot-Swap redundant fans
  6. JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
  7. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

For system validation and quality assurance purposes, system configurations require a minimum of 50% of the available drives be populated with validated Supermicro drives. Please contact your Supermicro sales rep for validated HDD.
Product SKUs
  • SuperChassis 826SE1C-R1K02JBOD
Form Factor
  • 2U SAS3 Simply double JBOD storage enclosure
    • 3.5" (89 mm)
    • 17.2" (437 mm)
    • 34" (863.6 mm)
    • 41" (1041 mm) with cable management arm installed
    Net Weight
    • 43 lbs (19.5 kg)
    Gross Weight
    • 82 lbs (37.19 kg)
    Packaging (W x H x L)
    • 29.09" (739 mm) x 11.96" (304 mm) x 51" (1295 mm)
    Available Color
    • Black
    Drive Bays
    • 24 x 3.5" hot-swap drive bay
    Qualified SAS Controllers
    • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
    • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
    • 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices
    Front Panel
    • Power On/Off button
    • Unit Identification (UID) button
    • 1 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • Power Status LED
    • Power Fail LED
    • Unit Identification (UID) LED
    Systems Cooling
    • 5 x 8cm hot-swap redundant PWM cooling fan(s)
    System Monitoring
    • IPMI
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    • 1000W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 203 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    • Max: 66.7A (100Vac - 127Vac)
    • Max: 83A (200Vac - 240Vac)
    • Max: 83A (200 - 240)
    • Max: 2.1A / Min: 0A
    Power Distributor
    • PDB-PT226S-8824
    • O/P: 12V/168A
    • +5V Max: 60A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    • Titanium Certified  Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL
    Standard Parts List
      Part Number Qty Description
    BracketMCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    BracketMCP-120-84705-0N1LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    HD BackplaneBPN-SAS3-826SEL1-N4212-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices
    Control BoardCSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)CBL-0459L2AC Power Cord Latch Clamp
    Cable(s)CBL-CDAT-08991I2C,1X4F/P2.5 TO 1X4F/P2.5, 65CM,26AWG,BRN/BLK-SHUNT/ORG
    Cable(s)CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    Cable(s)CBL-PWEX-09012BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG,
    Cable(s)CBL-PWEX-09032BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,72CM,18AWG,For CSE-226STS-R1K62P1 only
    Cable(s)CBL-SAST-08364MINI SAS HD,INT,48CM,32AWG w/oSB
    Cable(s)CBL-SAST-08962MINI SAS HD,INT,SAS3 SSD,80CM w/SB,Flat,30AWG
    Part(s)MCP-120-00062-0N3Blank LP L-bracket (5x5 square hole)
    Part(s)MCP-120-22601-0N12U air shroud BKT left screw-less for SC226S
    Part(s)MCP-120-22602-0N12U air shroud BKT right for SC226S
    Part(s)MCP-130-22602-0B1Black PDB cover for SC226S
    Part(s)MCP-230-82606-0N1Top middle cover for SC826S
    Part(s)MCP-240-22602-0N12U SC226S PWS & PDB housing cage
    Part(s)MCP-290-00086-0N1Cable Management Arm for 1U ball bearing Chassis SC801S/801L,RoHS/REACH
    Part(s)MCP-290-82615-0V12U SC226S/ 826S JBOD handle set w/o front control board
    Fan(s)FAN-0168L4580x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
    Front PanelMCP-280-00015-0N1Front control board for SC826 (inside the left handle),FP826
    Front PanelMCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5
    Drive Tray(s)MCP-220-00133-0B24Black gen 8 hot-swap 3.5" HDD tray
    Power DistributorPDB-PT226S-8824112V 25pair connector inpu with special wires 12V/168A output
    Power Supply & AccessoryPWS-1K02A-1R21U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
    Mounting Rail(s)MCP-290-00139-0N1
    Rear WindowMCP-290-00132-0N1
    Rear WindowMCP-240-82611-0N1SC826S, 226S JBOD rear window
    Optional Parts List
      Part Number Qty Description
    HDD Tray Converter MCP-220-00140-0B - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
    Cable CBL-SAST-0690 - MINI SAS HD,12G,EXT,2M,28AWG
    Cable CBL-SAST-0677 - MINI SAS HD,12G,EXT,3M,28AWG
    Rail MCP-290-11808-0N - Rail set, Quick/Quick, Auto Latch, 609.6mm Short Version, 685mm~812.8mm(27
