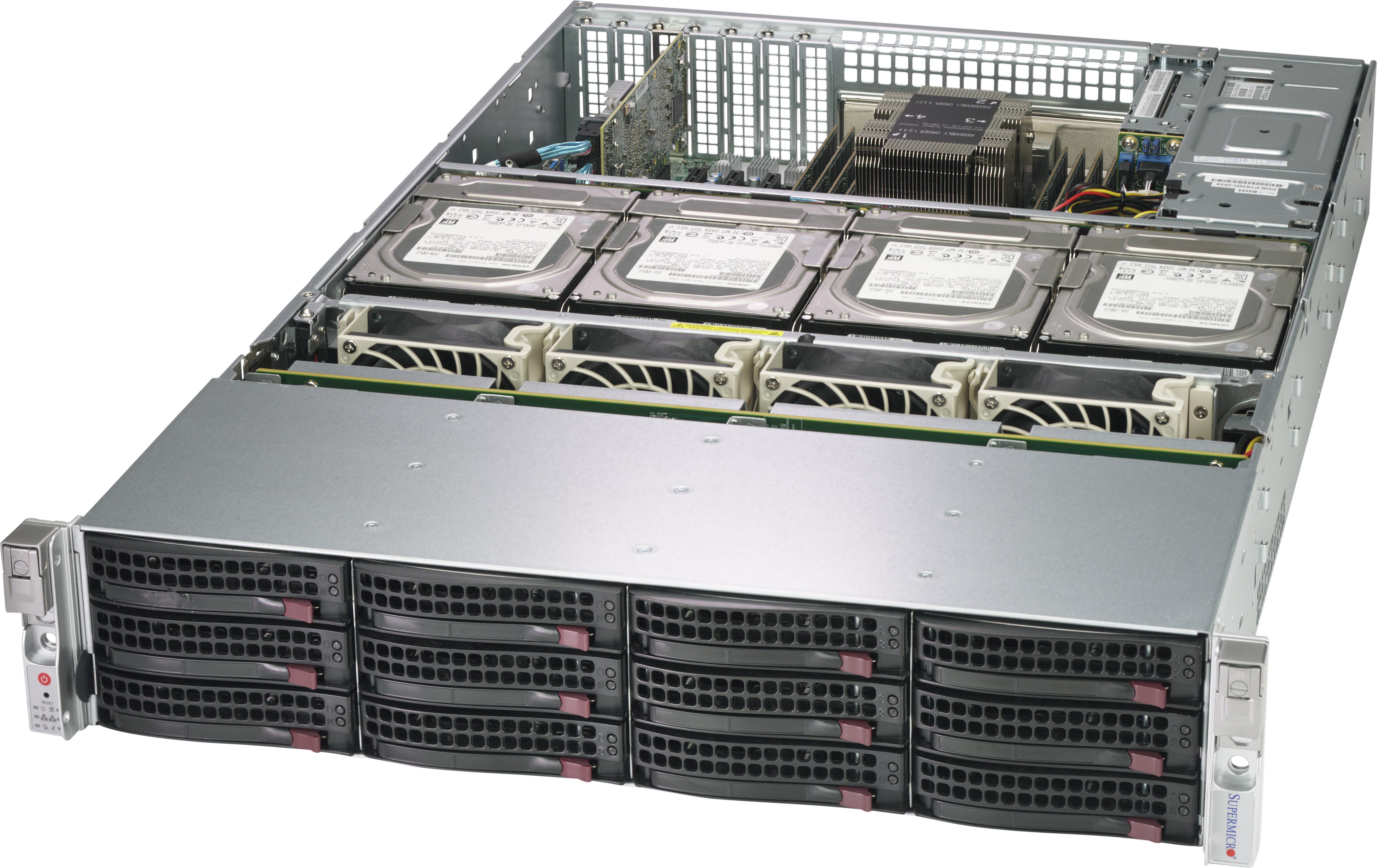

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards
  2. 16 x 3.5" hot-swap SAS3/SATA drive bay, optional 2 x 2.5" hot-swap SAS/SATA drive bay
  3. 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
  4. 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
  5. 1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length
  6. 7 low-profile expansion slot(s)
  7. 4 x 80x38mm hot-swap cooling fan(s)
Specifications
Product SKUs
CSE-829HE1C4-R1K02LPB
  • SuperChassis 829HE1C4-R1K02LPB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.75" (705 mm)
    Net Weight
    • 41.5 lbs (18.82 kg)
    Gross Weight
    • 62 lbs (28.12 kg)
    Packaging (W x H x L)
    • 25.9" (658 mm) x 10.8" (274 mm) x 39.3" (998 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 low-profile expansion slot(s)

    Drive Bays
    • 16 x 3.5" hot-swap SAS3/SATA drive bay
    • Optional 2 x 2.5" hot-swap SAS/SATA drive bay

    Backplane
    • 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
    • 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD Fail LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Systems Cooling
    Fans
    • 4 x 80x38mm hot-swap cooling fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    • 1000W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 203 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66.7A (100Vac - 127Vac)
    • Max: 83A (200Vac - 240Vac)
    • Max: 83A (200 - 240)
    +12Vsb
    • Max: 2.1A / Min: 0A
    Power Distributor
    • PDB-PT829H-2824
    • O/P: 12V/120A
    • +5V Max: 45A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified  Titanium Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-82901-0B1Mylar 1U air shroud for SC829H
    Air ShroudMCP-310-82928-0B1Mylar 2U air shroud for SC829H rear CPU
    HD BackplaneBPN-SAS3-826EL1-N4112-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
    HD BackplaneBPN-SAS3-829HA-A414-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable(S)CBL-0160L2US POWER CORD 16AWG, PB FREE
    Cable(S)CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Fan(s)FAN-0118L4480 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot
    Front PanelFPB-FP826-D1Front control board Dual color LED(FP826-D)forSC826,213,216,219
    Front PanelMCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5
    Drive Tray(s)MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5"; HDD tray
    Drive Tray(s)MCP-220-82902-0N1Middle tray plate for SC829H
    Drive Tray(s)MCP-220-82903-0N4Internal mid tray with handle for SC829H
    Power DistributorPDB-PT829H-282412U standard output with 24Pin PDB support up to
    Power Supply & AccessoryPWS-1K02A-1R21U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
    Mounting Rail(s)MCP-290-00053-0N-01136"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
    Optional Parts List
      Part Number Qty Description
    Adaptor Bracket MCP-120-82503-0N - Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
    Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    HDD Tray Converter MCP-220-00043-0N - Black hot-swap gen 4 3.5 to 2.5 HDD tray
    HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    HDD Kit MCP-240-82922-0N-OEM - Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-les
    Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    Tray(s) MCP-220-00138-0B - Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
    Cable CBL-SAST-0972 - OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 70CM,34AWG
    Cable CBL-SAST-0929 - OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 57CM,34AWG
    Motherboard (for CSE- 829HE1C4-R1K02LPB)
    X10DRH-CT
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
