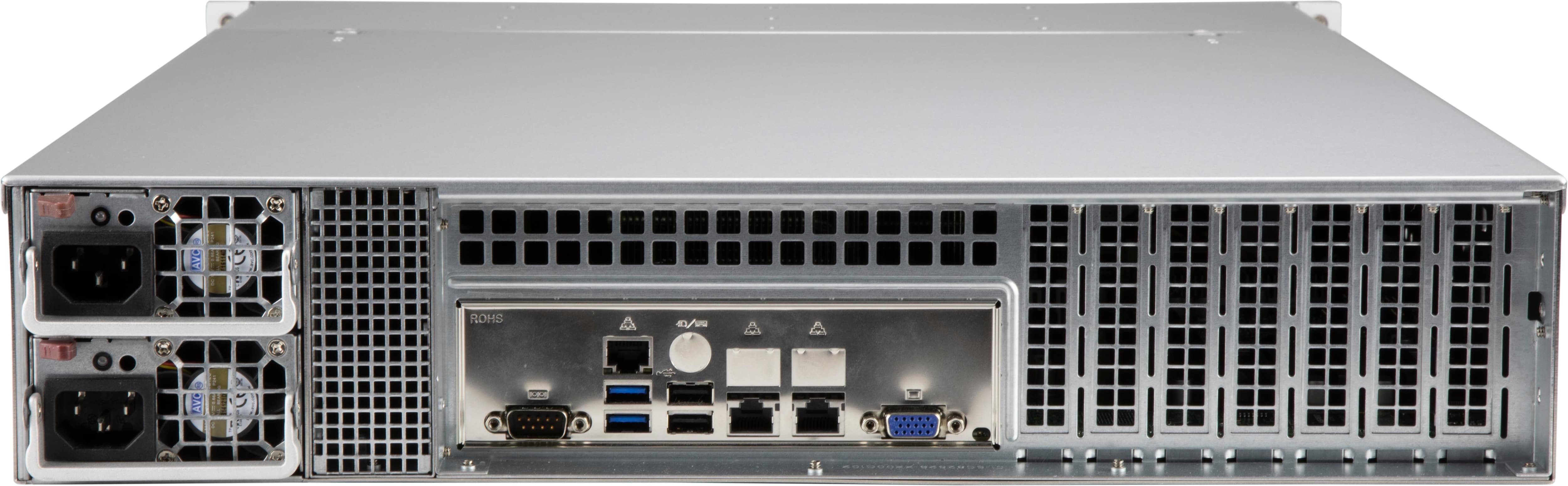

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3
    Optional rear 2x 2.5" hot-swap drive bay kit
  3. 12-port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device
  4. 920W 1U Redundant Power Supply
  5. 7x low-profile expansion slot(s)
  6. 3x 8cm high-performance PWM fan(s)
  7. Support service tag for system information
  8. Comes with standard 2U package with 2-layer carton and SMC logo

Specifications
Product SKUs
CSE-LA26AC12-R920LP1
  • SuperChassis LA26AC12-R920LP1

Form Factor
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 69 lbs (31.3 kg)
Net Weight
  • 35.3 lbs (16 kg)
Packaging (W x H x L)
  • 26.4" (671 mm) x 11.4" (290 mm) x 34.3" (871 mm)
Available Color
  • Black

Expansion Slots
  • 7x Low-profile expansion slot(s)

Drive Bays
  • Optional 2x 2.5" hot-swap drive bay
  • 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3

Backplane
  • 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 3x 8cm high-performance PWM fan(s)

System Monitoring
  • Optional Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 920W redundant power supply
Power Efficiency
  • 94+%
Total Output Power and Input
  • 920W with Input 200 - 240Vac
  • 920W with Input 100 - 127Vac
  • 920W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (connector)
+12V
  • Max: 75A / Min: 0A (200Vac - 240Vac)
  • Max: 75A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A
Power Distributor
  • PDB-PT826-L8824
  • O/P: 12V/75
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • UL/CB
Components
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Part(s) MCP-120-00115-0N 7 Blank LP L-bracket with 4x4 vent holes
Part(s) MCP-290-82603-0V 1 Silver left chss handle w/ ctrl panel for SC826 cable 235mm
Part(s) MCP-290-82616-0V 1 OEM Silver right chassis handle for SC826(no logo label)
Part(s) MCP-230-82602-0N 1 Top cover for SC826B/216B/825B
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Drive Tray(s) MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5
Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS
Power Supply & Accessory PWS-920P-1R2 2 1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
Optional Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N - SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
MCP-310-82603-0B - Mylar air shroud for 2U & 4U X11SPH,RoHS
Cable CBL-PWCD-0160-IS - PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Chassis parts MCP-290-00088-0N - Intrusion assembly
MCP-260-00042-0N - STD I/O shield for X9 socket R server MB with Gasket.
HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
Rail MCP-290-00053-0N - Rail set, quick/quick, default for 2,3U 17.2"W
Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
Motherboard (for CSE-LA26AC12-R920LP1)
H12SSL-C H12SSL-i H12DSi-NT6 H12SSL-CT
H12SSL-NT H12DSi-N6
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
