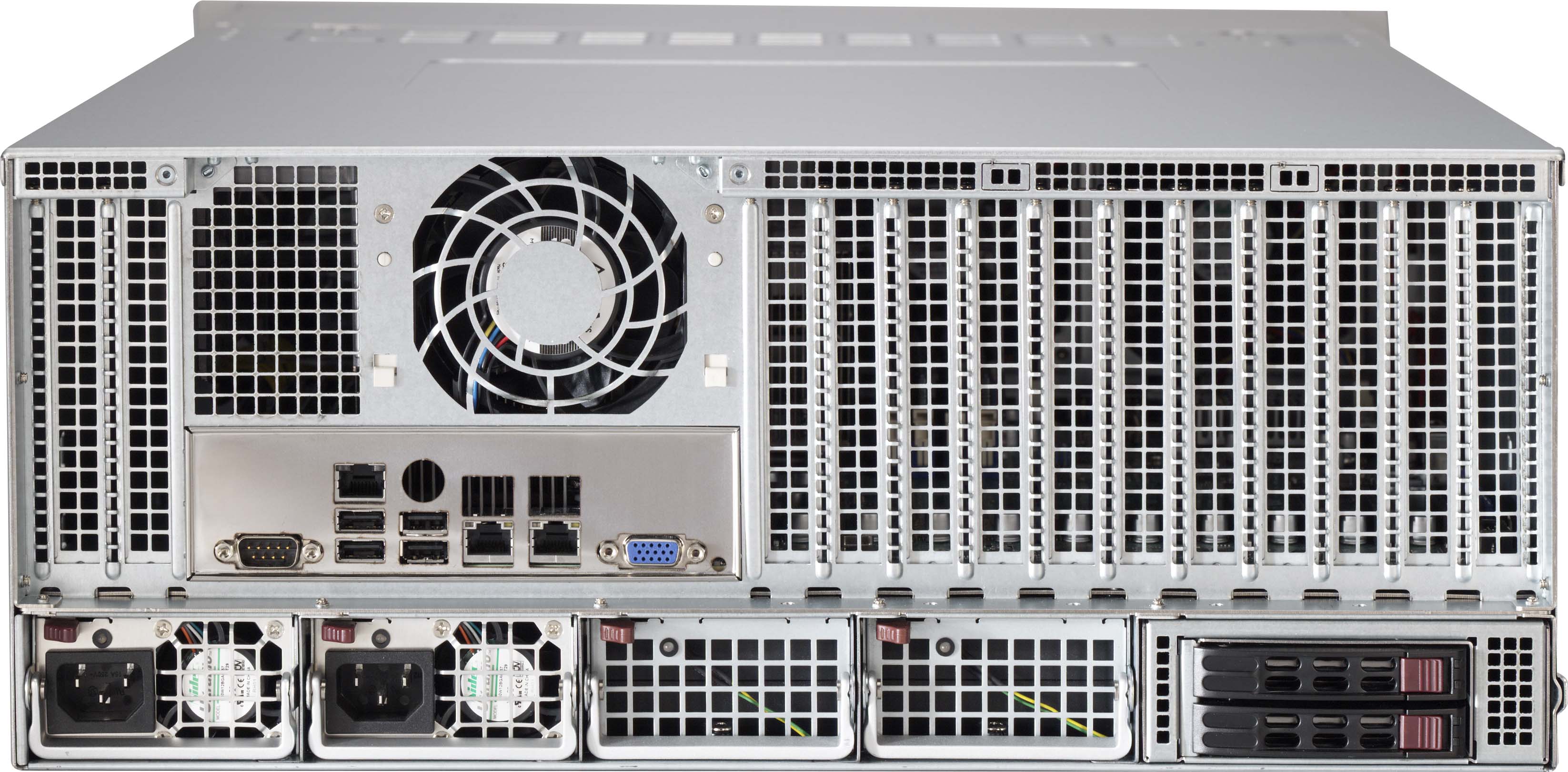

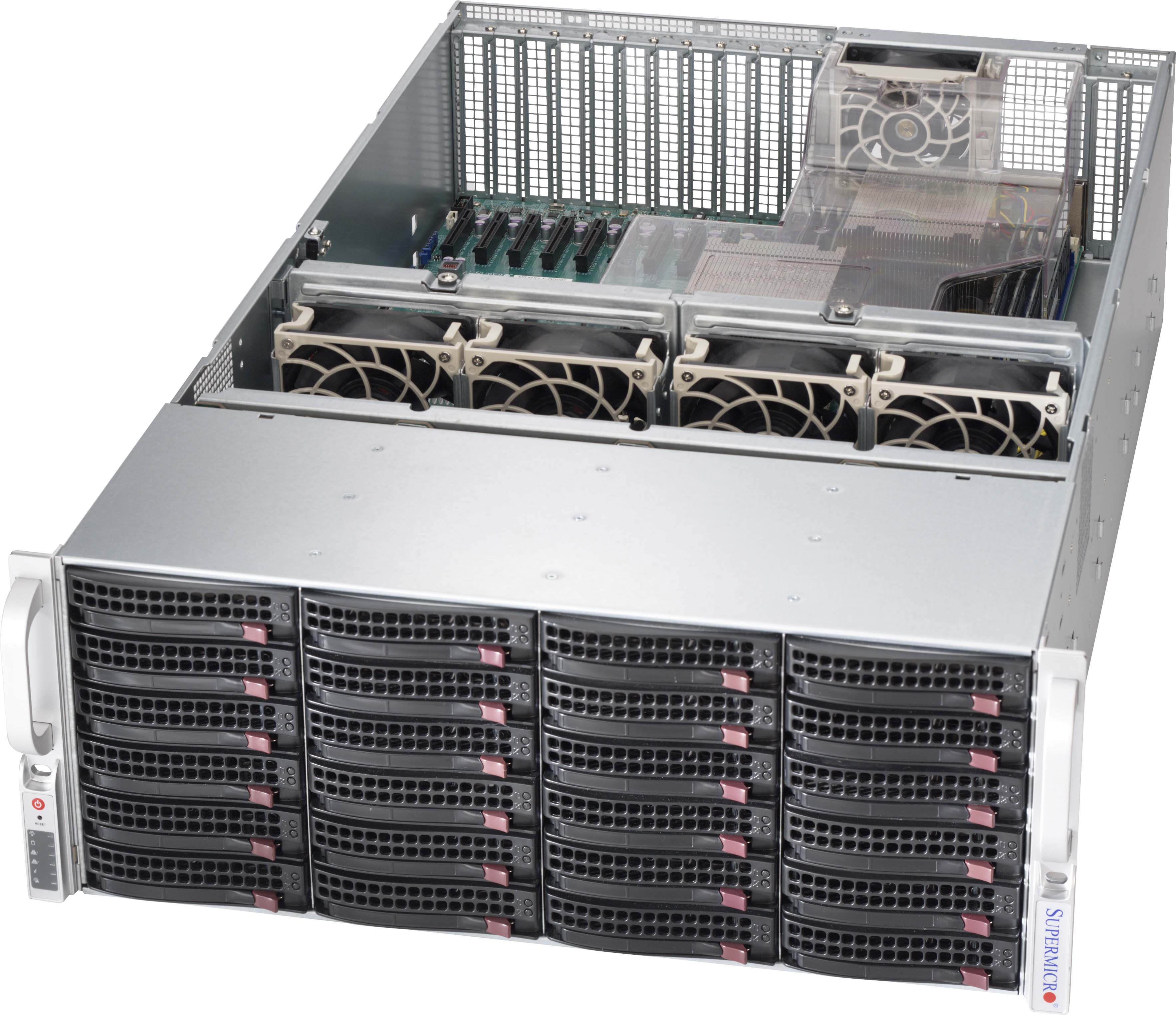

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. 100% cooling redundancy, 24x 3.5" Hot-swap SAS3 Drive Bays
  2. Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
  3. Dual SAS3 (12Gbps) expander backplane
  4. Mini SAS HD (SFF 8643) connectivity;
  5. Support two 1000W BBP
  6. Support up to 13 FH FL expansion slots
  7. High Availability PS, Storage Capacity, and numerous I/O slots

Specifications
Product SKUs
CSE-846XE2C-R1K23B
  • SuperChassis 846XE2C-R1K23B

Form Factor
  • 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and and 15.2" x 13.2"
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (736 mm)
    Gross Weight
    • 75 lbs (34.02 kg)
    Packaging (W x H x L)
    • 28" (711 mm) x 18" (457 mm) x 42" (1067 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 full-height & full-length expansion slot(s)
    • 4 full-height & half-length expansion slot(s)

    Drive Bays
    • 24 x 3.5" hot-swap SAS/SATA drive bay with SES3

    Backplane
    • 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

    Peripheral Drives
    • Optional 2 x 2.5" hot-swap drive bay
    • Optional 2 x 3.5" internal fixed drive bay
    • Optional 4 x 2.5" internal fixed drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    Systems Cooling
    Fans
    • 4 x 92x38mm Hot-Swap Cooling Fans
    • 1 x 8cm hot-swap exhaust fan(s) & air shroud

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 83A (100Vac - 127Vac)
    • Max: 100A (200Vac - 240Vac)
    • Max: 100A (200 - 240)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT418-B6824
    • O/P: 12V/256
    • +5V Max: 50
    • +3.3V Max: 30
    • -12V Max: 0.6
    Certification
    • Titanium Certified  Titanium Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-84602-0N1Air shroud for SC846X (Optimized for X9DRX)
    HD BackplaneBPN-SAS3-846EL2124-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    Cable(S)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable(S)CBL-0088L410.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
    Cable(S)CBL-0174L214AWG USA POWER CORD 6FT PB FREE
    Cable(S)CBL-0216L14 TO 4 PIN FAN POWER CABLE, 210MM
    Cable(S)CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    Fan(s)FAN-0115L4492x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
    Fan(s)FAN-0125L4180x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    Front PanelMCP-280-82601-0N1Front control board adapter (TB826) for SC216,826,936,846
    Drive Tray(s)MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5
    Drive Tray(s)MCP-220-00075-0B24Black gen 5.5 hot-swap 3.5"; HDD tray
    Power DistributorPDB-PT418-B68241Power Distributor Board for SC418 to support Battery and GPU option
    Power Supply & AccessoryPWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    Power Supply & AccessoryCSE-PT0130L2SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W)
    Mounting Rail(s)MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2"; W
    Mounting Rail(s)MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear WindowMCP-240-84603-0N1846X rear window
    Optional Parts List
      Part Number Qty Description
    N/A -
    Battery Backup Power PWS-1K03B-1R - DC 1KW battery backup power module (for SC835B only)
    Fan Kit MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) for SC747B, 835X, 836BH
    HDD Tray MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    Cable CBL-PWEX-0581 - 8 pin to two 6+2 pin 12V GPU power cable, 65 cm 16/20 AWG,HF,RoHS/REACH,PBF
    HDD Kit MCP-220-00044-0N - Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
    Motherboard (for CSE- 846XE2C-R1K23B)
    X9DRX+-F X10DRX
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
    SuperChassis 846XE2C-R1K23B
