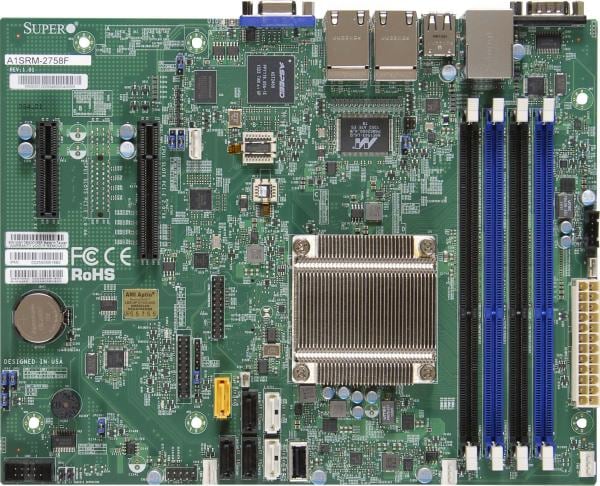

Supermicro Motherboard Xeon Boards A1SRM-2758F

Embedded
Communication
Rangeley

Key Features

  1. Intel® Atom® Processor C2758.
    Single Socket FCBGA1283 supported, CPU TDP support Up to 20W TDP
  2. System on Chip
  3. 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
    x8 Width only
  4. 1 PCI-E 2.0 x8
    1 PCI-E 2.0 x4
  5. 1 port
  6. SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
  7. Quad LAN with Intel® C2000 SoC
    I354

Specifications
Product SKUs
MBD-A1SRM-2758F
  • A1SRM-2758F

Physical Stats
Form Factor
  • mATX
Dimensions
  • N/A

Processor/Cache
CPU
  • Intel® Atom® Processor C2758.
  • Single Socket FCBGA-1283 supported, CPU TDP support Up to 20W TDP

System Memory
Memory Capacity
  • 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
  • x8 Width only
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • N/A

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
Network Controllers
  • Quad LAN with Intel® C2000 SoC
    I354
Graphics
  • Aspeed AST2400 BMC

Input / Output
USB
  • 7 USB 2.0 ports (4 rear + 2 headers + 1 Type A)
Video Output
  • 1 port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    2 fast UART 16550 serial
TPM
  • TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 2.0 x8
  • 1 PCI-E 2.0 x4

System BIOS
BIOS Type
  • UEFI 128Mb

Management
Software
  • IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Supports system management utility, System level control
FAN
  • 3x 4-pin fan headers (up to 3 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel® QuickAssist Technology , System level control, UID, WOL
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A1SRM-2758F 1 A1SRM-2758F Motherboard


Chassis (Optimized for

A1SRM-2758F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC813MTQ-202CB
SC512L-200B
SC813MTQ-350CB
SC510T-203B
SC510T-203B
SC510-203B
SC731i-300B

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for A1SRM-2758F)
Server Name
A1SRM-2758F
