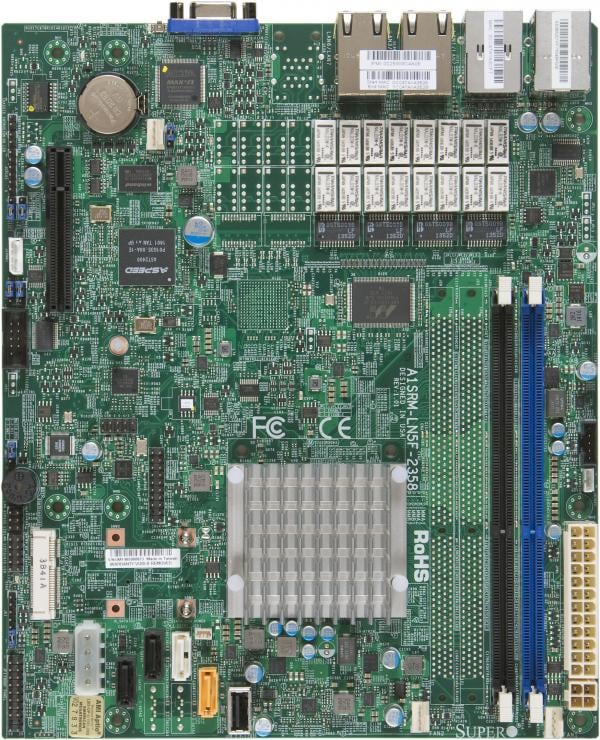

A1SRM-LN5F-2358

Embedded
Communication
Rangeley

Key Features


  1. Intel® Atom® Processor C2358
    Single Socket FCBGA-1283 supported, CPU TDP support 7W TDP
  2. Quad LAN with Intel® C2000 SoC
    I354, 2 pairs LAN bypass
    Single LAN with Intel® Ethernet Controller I210-AT
    Management Port with Shared IPMI
  3. 16GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots
    x8 Width only
  4. 1 PCI-E 2.0 x4 (in x8 slot)
  5. SoC controller for 2 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
  6. 1 VGA port
  7. System on Chip



Resources
Specifications
Product SKUs
MBD-A1SRM-LN5F-2358
  • A1SRM-LN5F-2358

Physical Stats
Form Factor
  • mATX
Dimension
  • 8" x 9.6" (20.32cm x 24.38cm)

Processor
CPU
  • Intel® Atom® Processor C2358
  • Single Socket FCBGA-1283 supported, CPU TDP supports Up to 7W TDP
Core
  • Up to 2 cores, 2 threads / 2MB Cache
Note

System Memory
Memory Capacity
  • 2 DIMM slots
  • 16GB ECC/non-ECC UDIMM, DDR3-1600MHz
Memory Type
  • N/A
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB
Memory Voltage
  • 1.35V
  • 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • 2 SATA3 (6 Gbps) ports; RAID 0/1
  • SoC controller for 2 SATA2 (3 Gbps) ports
IPMI
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC
Network Controllers
  • Quad LAN with Intel® C2000 SoC, I354, 2 pairs LAN bypass
  • Single LAN with Intel® Ethernet Controller I210-AT, Management Port with Shared IPMI

Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
  • 2 SATA2 (3Gbps) port(s)
LAN
  • 5 RJ45 Gigabit Ethernet LAN ports
USB
  • 7 USB 2.0 port(s) (2 via header; 1 Type A; 4 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 fast UART 16550 Serial
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 1 SuperDOM (Disk on Module) port with build power
TPM
  • 1 TPM Header
Others
  • 1 Pairs LAN Bypass Ports
Expansion Slots
PCI-E
  • 1 PCI-E 2.0 x4 (in x8 slot)
M.2

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 5.0
  • DMI 2.3
  • SMBIOS 2.7.1
  • Plug and Play (PnP)

Management
Software
  • SuperDoctor® 5, NMI, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, Control of power-on for recovery from AC power loss

PC Health Monitoring
Voltage
  • System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Adaptive Thermal Monitor, PECI 3.0
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
Other Features
  • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, Intel® QuickAssist Technology, 4-pin 12v DC power connector

Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A1SRM-LN5F-2358 1 A1SRM-LN5F-2358 Motherboard
I/O Shield MCP-260-00084-0N 1 STD I/O SHIELD
SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-A1SRM-LN5F-2358 1 A1SRM-LN5F-2358 Motherboard
I/O Shield MCP-260-00084-0N 1 STD I/O SHIELD
Quick Installation Guide MNL-1617-QRG 1 Quick Reference Guide for A1SRM-LN7F/LN5F
SATA cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Optional Parts List
Name Part Number Qty Description
I/O Shield MCP-260-00085-0B
MCP-260-00079-0N
--
--
1U I/O Shield for A1SRM-LN7F/LN5F in SC510 Chassis
1U I/O Shield for A1SRM-LN7F/LN5F in SC813/SC512 Chassis
Chassis (Optimized for A1SRM-LN5F-2358)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC813MTQ-350CB
SC510T-203B
SC512L-200B
SC512L-200B
SC510-203B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
