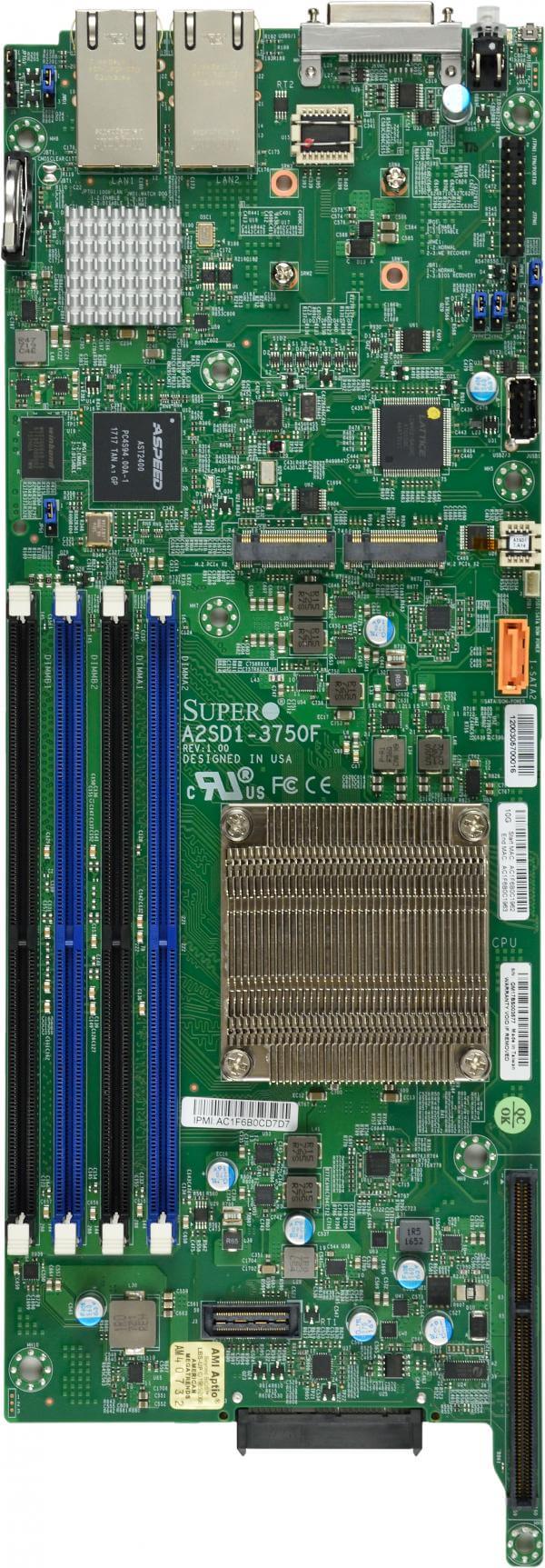

Supermicro Motherboard Xeon Boards A2SD1-3750F

MicroCloud

Key Features

  1. Intel® Atom® Processor C3750.
    Single Socket FCBGA-1310 supported, CPU TDP support Up to 21W TDP
  2. System on Chip
  3. , DDR4-2400MHz, DDR4-2400MHzUp to , in 4 DIMM slotsUp to 128GB Registered ECC VLP RDIMM, DDR4-2400MHz;
    Up to 128GB Unbuffered ECC/non-ECC VLP UDIMM, DDR4-2400MHz, in 4 DIMM slots

  4. M.2 Interface: 2 SATA/PCI-E 3.0 x2
    M.2 Form Factor: 2260/2280
    M.2 Key: M-Key,
    2 PCI-E 3.0 NVMe x4 Internal Port(s)
  5. 1 VGA port
  6. SoC controller for 4 SATA3 (6 Gbps) ports;
  7. Dual LAN with 10GBase-T with Intel® X557

Specifications
Product SKUs
MBD-A2SD1-3750F
  • A2SD1-3750F

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 4.6" x 11.7" (11.68cm x 29.72cm)

Processor/Cache
CPU
  • Intel® Atom® Processor C3750.
  • Single Socket FCBGA-1310 supported, CPU TDP support Up to 21W TDP
Cores / Cache
  • 8 cores, 8 threads / 16MB cache

System Memory
Memory Capacity
  • , DDR4-2400MHz, DDR4-2400MHzUp to , in 4 DIMM slotsUp to 128GB Registered ECC VLP RDIMM, DDR4-2400MHz;
  • Up to 128GB Unbuffered ECC/non-ECC VLP UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type
  • 2400/2133/1866/1600MHz DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V, 1.35V

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6 Gbps) ports;
IPMI
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X557
Graphics
  • Aspeed AST2400 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T ports
USB
  • 1 USB 2.0 ports (1 Type A)
Video Output
  • 1 VGA port
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • N/A
M.2
  • M.2 Interface: 2 SATA/PCI-E 3.0 x2
  • Form Factor: 2260/2280
  • Key: M-Key

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

Management
Software
  • IPMI2.0, SUM, SuperDoctor® 5

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, HT, Memory, VBAT
FAN
  • N/A
Temperature
  • CPU thermal trip support
LED
  • N/A
Other Features
  • RoHS, UID

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A2SD1-3750F 1 A2SD1-3750F Motherboard
--


Server (Optimized for A2SD1-3750F)
Server Name
A2SD1-3750F
