Key Features
8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Intel® Q370
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
Dual LAN with
Two(2)10GbE Ethernet ports from KR interface to BP
Links & Resources
Tested Memory List
Tested HDD / SSD List
Tested M.2 List
Tested AOC List
Motherboard Manual
Quick Reference Guide
Update Your BIOS
BMC Firmware
Download the Latest Drivers and Utilities
Download Driver CD
OS Compatibility
Specifications
Product SKUs
- Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.

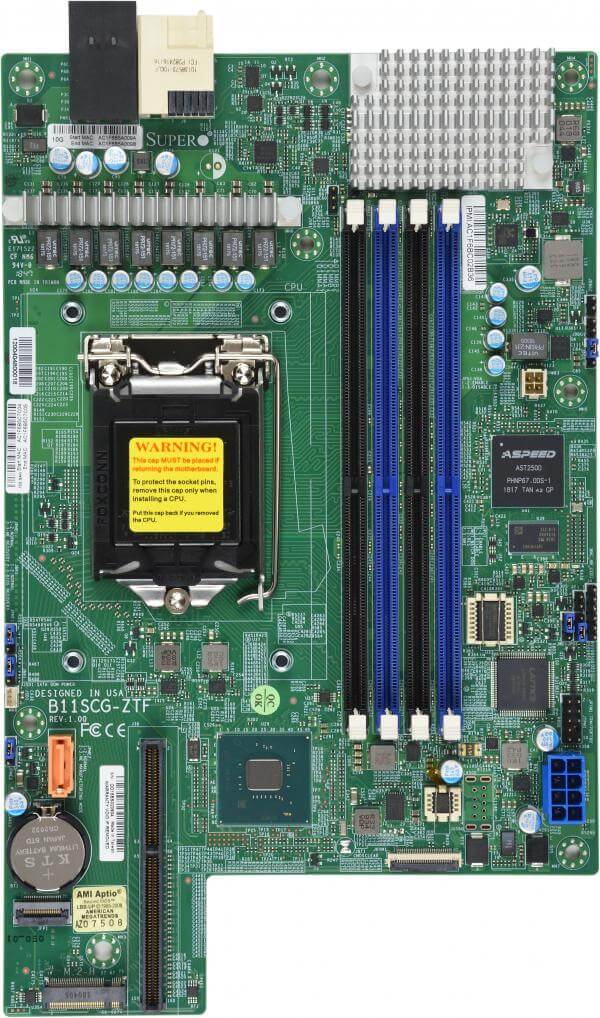

MBD-B11SCG-ZTF
B11SCG-ZTF
Physical Stats
Form Factor
Proprietary
Dimensions
4.8" x 12.6" (12.19cm x 32cm)
Processor/Cache
CPU
8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel® Q370
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with
Two(2)10GbE Ethernet ports from KR interface to BP
Graphics
ASPEED AST2500 BMC
Input / Output
SATA
2 SATA3 (6Gbps) port
USB
TPM
TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x16 slots (16/NA or 8/8)
M.2
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
ACPI 6.1
UEFI 2.7
SMBIOS 2.8
Plug and Play (PnP)
Management
Software
IPMI2.0, NMI, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
PC Health Monitoring
Voltage
+12V, CPU temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, VBAT
FAN
N/A
Temperature
N/A
LED
Power LED
Other Features
ACPI power management, Control of power-on for recovery from AC power loss
Parts List
Parts List (Bulk Package)
Name
Part Number
Qty
Description
Motherboard
MBD-B11SCG-ZTF
1
B11SCG-ZTF Motherboard
--
Server
(Optimized for B11SCG-ZTF)
Server Name
B11SCG-ZTF (For SuperServer Only)
Certain products may not be available in your region
Breadcrumb
Home
»
Products
»
Motherboards
»
B11SCG-ZTF
Global SKU
Select your language
English
繁體中文
簡体中文
日本語
Deutsch
Español
