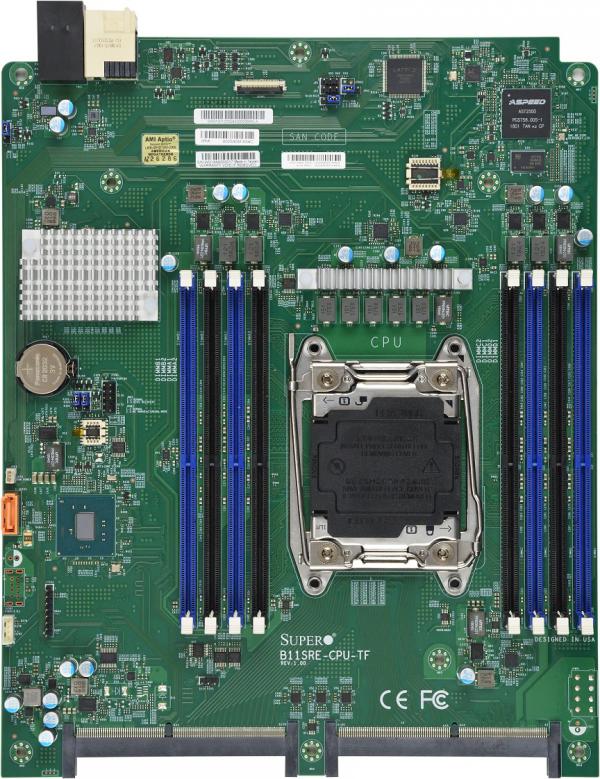

Supermicro Motherboard Xeon Boards B11SRE-CPU-TF

Key Features

  1. Intel® Xeon® Processor W Family
    Single Socket LGA-2066 (Socket R4) supported
  2. Intel® C422
  3. Up to 256GB Registered ECC RDIMM; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots

  4. PCI-E x16 Expansion for Various I/O Modules
  5. Dual LAN with
    Two(2)10GbE Ethernet ports from KR interface to BP

Specifications
Product SKUs
MBD-B11SRE-CPU-TF
  • B11SRE-CPU-TF

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 9.358" x 11.606" (23.77cm x 29.48cm)

Processor/Cache
CPU
  • Intel® Xeon® Processor W Family
  • Single Socket LGA-2066 (Socket R4) supported

System Memory
Memory Capacity
  • Up to 256GB Registered ECC RDIMM; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C422
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with
    Two(2)10GbE Ethernet ports from KR interface to BP
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 1 SATA3 (6Gbps) port
USB
TPM
  • TPM Header
Expansion Slots
PCI-E
  • PCI-E x16 Expansion for Various I/O Modules

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 6.1
  • UEFI 2.7
  • SMBIOS 2.8
  • Plug and Play (PnP)

Management
Software
  • IPMI2.0, NMI, SPM, SSM, SUM, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

PC Health Monitoring
Voltage
  • +12V, CPU temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, VBAT
FAN
  • N/A
Temperature
  • N/A
LED
  • Power LED, UID/Remote UID
Other Features
  • ACPI power management, Control of power-on for recovery from AC power loss
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-B11SRE-CPU-TF 1 B11SRE-CPU-TF Motherboard
SuperBladeSBI-6119R-T3N1SBI-6119R-T3N Motherboard


Server (Optimized for B11SRE-CPU-TF)
Server Name
SBI-6119R-C3N
SBI-6119R-T3N
B11SRE-CPU-TF (For SuperServer Only)
