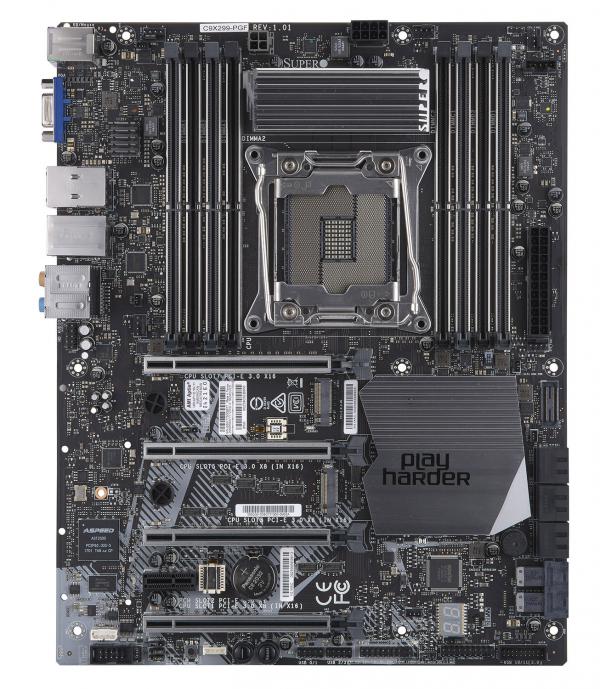

Supermicro Motherboard Xeon Boards C9X299-PGF

Desktop
Overclock

Key Features

  1. Intel® Core™ i5 X-series Processor, Intel® Core™ i7 X-series Processor, Intel® Core™ i9 Extreme X-series Processor, Intel® Core™ i9 X-series Processor.
    Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
  2. Intel® X299
  3. 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
  4. 4 PCI-E 3.0 x16,
    1 PCI-E 3.0 x1
    ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots***
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key (RAID 0,1 support)
    M-Key for SSD and Optane;Intel VROC licence kit is needed to enable RAID.
    U.2 Interface: PCI-E 3.0 x4
  5. 1 VGA port
  6. 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia 5G LAN chip AQC108

Specifications
Product SKUs
MBD-C9X299-PGF
  • C9X299-PGF

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • Intel® Core™ i5 X-series Processor, Intel® Core™ i7 X-series Processor, Intel® Core™ i9 Extreme X-series Processor, Intel® Core™ i9 X-series Processor.
  • Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
  • Support Intel Skylake-X refresh CPU

System Memory
Memory Capacity
  • 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
Memory Type
  • 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® X299
SATA
  • 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
  • ***OOB Bios refresh function is not supported.***
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia 5G LAN chip AQC108
Audio
  • ALC 1220 HD Audio

Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 ports (4 via headers, Type A))
  • 4 USB 3.0 ports (2 rear + 2 via headers)
  • 4 USB 3.1 ports (3 Type A, 1 Type C)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x1
  • ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots***
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key (RAID 0,1 support)
  • M-Key for SSD and Optane;Intel VROC licence kit is needed to enable RAID.

System BIOS
BIOS Type
  • UEFI 128Mb

Management
Software
  • SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
MotherboardMBD-C9X299-PGF1C9X299-PGF Motherboard
IO shieldMCP-260-00117-0N1C9X299-PG IO Shield
SATA cableCBL-0044L257.5CM SATA FLAT S-S PBF


Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included)AOM-TPM-9655V1
TPM security module (optional, not included)AOM-TPM-9655V-C1
TPM security module (optional, not included)AOM-TPM-9665V-FC1
TPM security module (optional, not included)AOM-TPM-9665V1
TPM security module (optional, not included)AOM-TPM-9665V-C1
Chassis (Optimized for

C9X299-PGF

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-753K
SCGS5A-753R
SC732D3-903B
SC732D3-1200B
4U Heatsink:SNK-P0050AP4

SC743AC-668B
SC743AC-1200B-SQ
4U Heatsink:SNK-P0050AP4


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for C9X299-PGF)
Server Name
SYS-5039AD-I
C9X299-PGF
