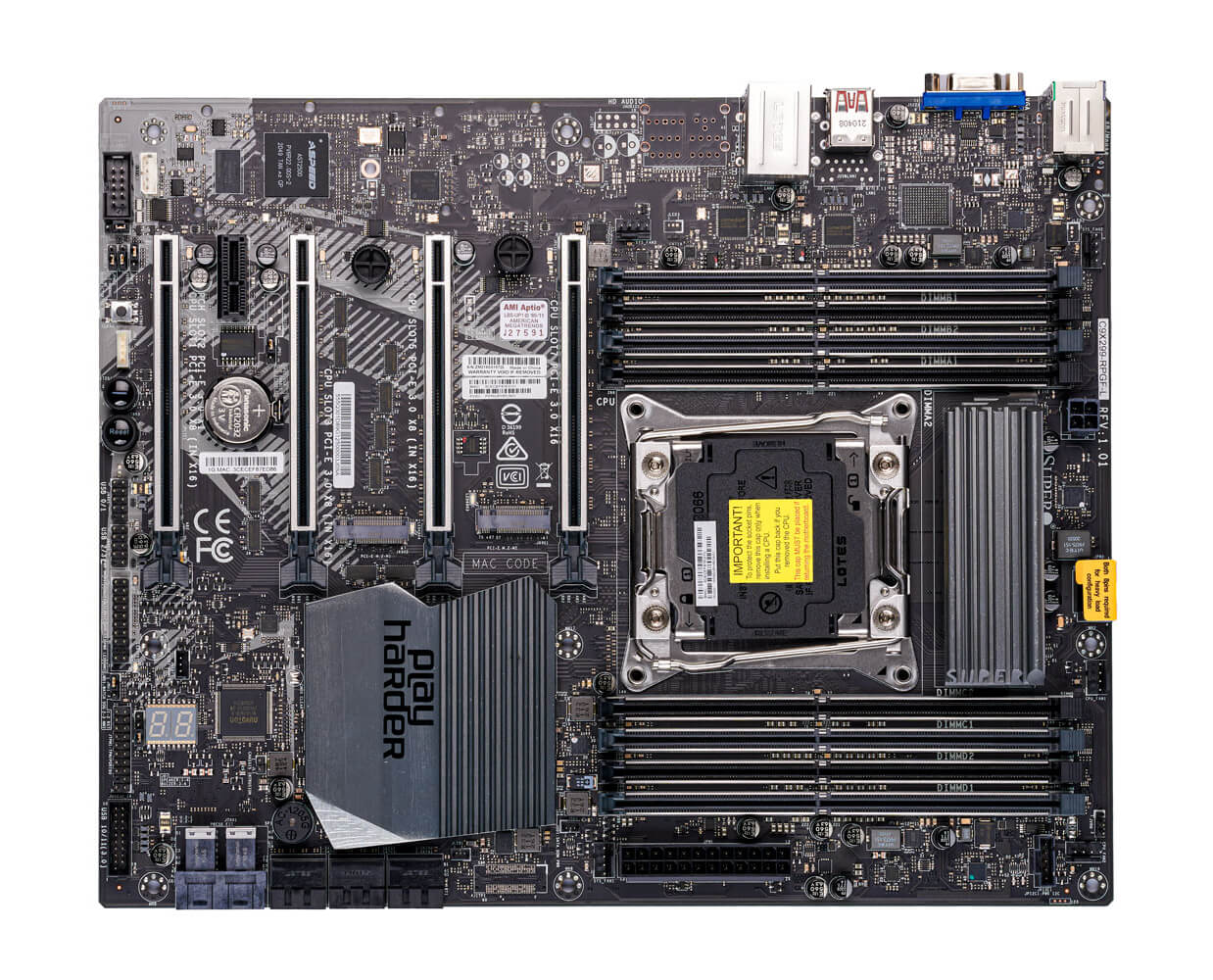

C9X299-RPGF-L

C9X299-RPGF-L
Desktop
Overclock

Key Features


  1. Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 7th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i9 X-series, Intel® Core™ i9 Extreme X-series Processor
    Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
  2. Intel® X299
  3. Single LAN with Intel® Ethernet Controller I210-AT
  4. Up to 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots
  5. 4 PCIe 3.0 x16,
    1 PCIe 3.0 x1
    M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
    U.2 Interface: 2 PCIe 3.0 x4
  6. 1 VGA port,
    *For IPMI functionality only
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-C9X299-RPGF-L
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
  • Intel® 7th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i9 X-series
  • Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® X299
IPMI
  • ASPEED AST2500
Graphics
  • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI(max. resolution up to 3840x2160@30Hz)
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA
  • 6 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header), 2 RS232/422/485
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 4 PCIe 3.0 x16,
  • 1 PCIe 3.0 x1
M.2
  • M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
  • Form Factor: 2280/22110
  • Key: M-Key
  • 1 M.2 2242/3042 B-Key (USB2.0 x 1,PCIe Gen2 x 1,SATA Gen3 x 1)
System BIOS
BIOS Type
  • 128MB UEFI
Management
Software
  • SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
  • VBAT, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V, +3.3V, +12V
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Thermal control tachometer fan connectors
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology
