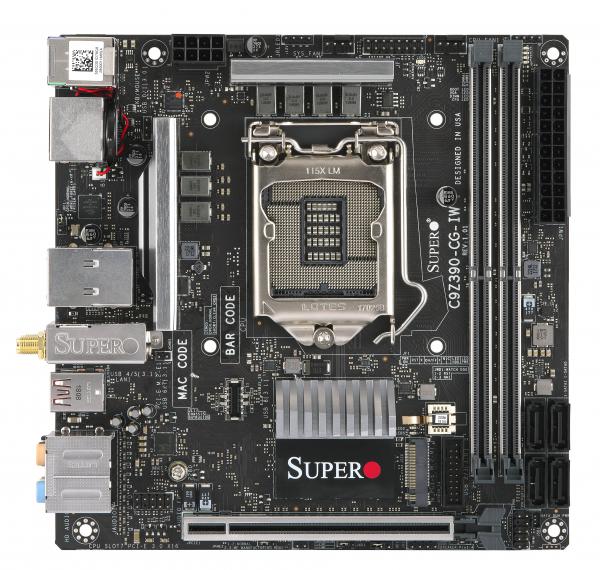

Supermicro Motherboard Xeon Boards C9Z390-CG-IW
Key Features

  1. Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 120W TDP
  2. Intel® Z390 Express
  3. , DDR4-up to 3866+ MHz(OC), in 2 DIMM slotsUp to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9)
  4. 1 PCI-E 3.0 x16
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
    M.2 Form Factor: 2260/2280, 2230
    M.2 Key: M-Key, E-Key (RAID 0,1 support)
    M.2-E1 port pre-installed one 802.11ac WiFi+BT5.0 module; One M.2 (M-Key) on Top side and One M.2 (M-key)on back side
  5. 1 HDMI port, 1 DP (DisplayPort) port,
    HDMI up to 2.0a, DP up to 1.2
  6. Single LAN with Intel® single Ethernet PHY i219V
  7. Single LAN with Intel® single Ethernet PHY i219V

Links & Resources

Specifications
Product SKUs
MBD-C9Z390-CG-IW
  • C9Z390-CG-IW

Physical Stats
Form Factor
  • Mini-ITX
Dimensions
  • 6.7" x 6.7" (17.02cm x 17.02cm)

Processor/Cache
CPU
  • Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor.
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 120W TDP

System Memory
Memory Capacity
  • , DDR4-up to 3866+ MHz(OC), in 2 DIMM slotsUp to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type
  • 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z390 Express
SATA
  • Intel® Z390 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
Audio
  • ALC 1220 HD Audio
Graphics
  • HDMI up to 2.0a, DP up to 1.2

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 3.0 ports (2 rear + 2 via headers)
  • 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
  • 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header)
Video Output
  • 1 HDMI port, 1 DP (DisplayPort) port,
  • HDMI up to 2.0a, DP up to 1.2
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
  • Form Factor: 2260/2280, 2230
  • Key: M-Key , E-Key (RAID 0,1 support)
  • M.2-E1 port pre-installed one 802.11ac WiFi+BT5.0 module; One M.2 (M-Key) on Top side and One M.2 (M-key)on back side

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
BIOS Features
  • ACPI 6.0
  • SMBIOS 3.0 or later
  • UEFI 2.4

Management
Software
  • SuperDoctor® 5, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery
  • Keyboard Wakeup from Soft-Off
  • ACPI Power Management

PC Health Monitoring
Voltage
  • +1.1V, +12V, +3.3V, +5V, 1.05 (PCH), 2 fans with tachometer status monitoring, 3+2 Phase-switching voltage regulator, HT, VBAT
FAN
  • 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, PWM fan speed control
Temperature
  • CPU thermal trip support
LED
  • Suspend static indicator LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header, Voltage and Frequency Overclocking, WOL
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-CG-IW 1 C9Z390-CG-IW Motherboard

Parts List (Retail Package)
Name Part Number Qty Description
MotherboardMBD-C9Z390-CG-IW1C9Z390-CG-IW Motherboard
IO shieldMCP-260-00129-0N1C9Z390-CG-IW IO shield
Quick Reference GuideMNL-2018-QRG1C9Z390-CG-IW Quick Reference Guide
SATA cableCBL-0044L257.5CM SATA FLAT S-S PBF
Driver CD1C9 Driver CD
Metal badge1SuperO metal badge
Cable sticker1SuperO cable sticker
WiFi+BT AntennaCBL-ANTDB-SMA2C9Z390-CG-IW WiFi+BT Antenna
Front panel extension cable1C9Z390-CG-IW front panel extension cable

Chassis (Optimized for

C9Z390-CG-IW

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
SC732D4-500B

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for C9Z390-CG-IW)
Server Name
C9Z390-CG-IW
