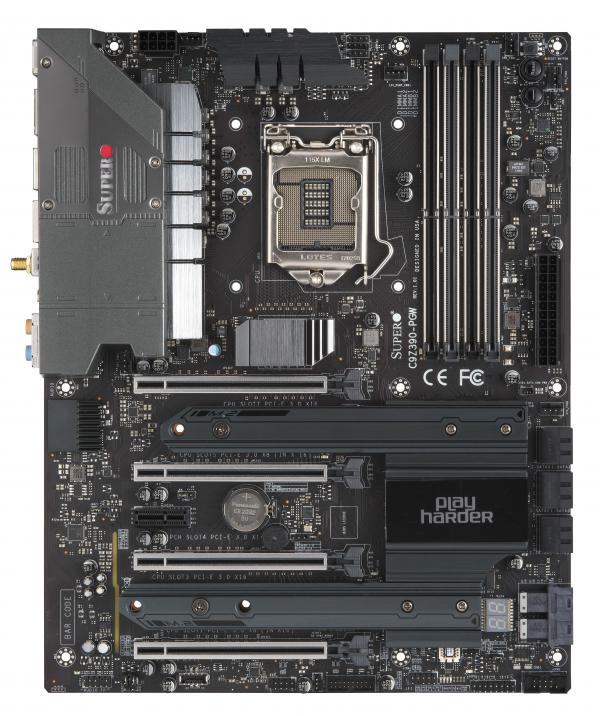

Supermicro Motherboard Xeon Boards C9Z390-PGW

Key Features

  1. Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket LGA 1151 supported, CPU TDP support Up to 140W
  2. Intel® Z390 Express
  3. Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
  4. 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 16/NA/8/8 or 8/8/16/NA or 8/8/8/8),
    1 PCI-E 3.0 x1
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
    M.2 Form Factor: 2260/2280/22110, 2260/2280, 2230
    M.2 Key: M-Key, M-Key, E-Key (RAID 0,1 support)
    M.2-M1 port shares PCI-E link with U2-1 port;M.2-M2 port shares link with SATA port4 and port5; M.2-E1 port pre-installed one 802.1ac WiFi+BT5.0 module
    U.2 Interface: 2 PCI-E 3.0 x4 and PCI-E 3.0 x4
  5. 2 DP (DisplayPort) ports, 1 HDMI port,
    Display port up to 1.2, HDMI up to 2.0a
  6. Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller

Specifications
Product SKUs
MBD-C9Z390-PGW
  • C9Z390-PGW

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor.
  • Single Socket LGA 1151 supported, CPU TDP support Up to 140W

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type
  • 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z390 Express
SATA
  • Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
Audio
  • ALC 1220 HD Audio
Graphics
  • Display port up to 1.2, HDMI up to 2.0a

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
USB
  • 2 USB 2.0 ports (2 via headers, Type A))
  • 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
  • 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header); *Internal USB3.1 Gen2 header is for one Type C deivce
Video Output
  • 2 DP (DisplayPort) ports, 1 HDMI port,
  • Display port up to 1.2, HDMI up to 2.0a
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 16/NA/8/8 or 8/8/16/NA or 8/8/8/8),
  • 1 PCI-E 3.0 x1
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
  • Form Factor: 2260/2280/22110, 2260/2280, 2230
  • Key: M-Key , M-Key , E-Key (RAID 0,1 support)
  • M.2-M1 port shares PCI-E link with U2-1 port;M.2-M2 port shares link with SATA port4 and port5; M.2-E1 port pre-installed one 802.1ac WiFi+BT5.0 module

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
BIOS Features
  • ACPI 6.0

Management
Software
  • SuperDoctor® 5, Watchdog
System Mangement Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM)
FAN
  • 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring
Temperature
  • CPU thermal trip support
LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion header
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-PGW 1 C9Z390-PGW Motherboard

Parts List (Retail Package)
Name Part Number Qty Description
MotherboardMBD-C9Z390-PGW1MBD-C9Z390-PGW Motherboard
IO shieldMCP-260-00141-0N1C9Z390-PGW IO shield
Quick Reference GuideMNL-2030-QRG1C9Z390-PGW Quick Reference Guide
SATA cableCBL-0044L457.5CM SATA FLAT S-S PBF
Driver CD1C9 Driver CD
Metal badge1SuperO metal badge
Cable sticker1SuperO cable sticker
WiFi+BT AntennaCBL-ANTDB-SMA2C7Z390-PGW WiFi+BT Antenna

Chassis (Optimized for

C9Z390-PGW

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
SC732D4-500B
4U Heatsink:SNK-P0051AP4


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


C9Z390-PGW
