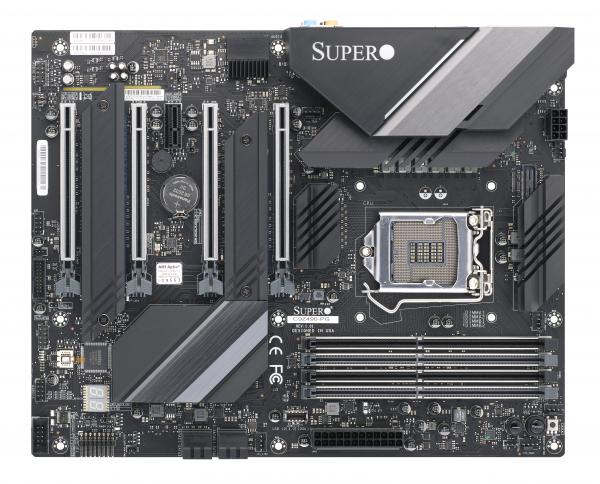

C9Z490-PG

Desktop

Key Features


  1. 10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 140W TDP
  2. Intel® Z490
  3. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
    ;
    2933 MHz to 4000+MHz(OC) in four 288-pin memory slots.
  4. 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8),
    1 PCI-E 3.0 x1
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2260/2280/22110
    M.2 Key: M-Key
    RSTe software raid

    2 M.2 M-Key PCI-E 3.0 x4, 2260/2280/22110
  5. Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
  6. 1 DP (DisplayPort) port, 1 HDMI port,
    DP version 1.4, HDMI version 2.0a



Resources
Specifications
Product SKUs
MBD-C9Z490-PG
  • C9Z490-PG

Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU
  • 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 140W TDP

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
  • 2933 MHz to 4000+MHz(OC) in four 288-pin memory slots.
Memory Type
  • 128GB Unbufferred Non
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z490
Audio
  • ALC 1220 HD Audio
Graphics
  • DP version 1.4, HDMI version 2.0a
Network Controllers
  • Single LAN with Aquantia® AQC107 10G Ethernet Controller
  • Single LAN with Intel® single Ethernet PHY i219V

Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 type A)
  • 4 USB 3.2 Gen2 port(s) (1 rear type C; 1 via header; 2 rear type A)
  • 1 USB 3.2 Gen2x2 port(s) (1 rear type C)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8),
  • 1 PCI-E 3.0 x1
M.2
  • M.2 Interface: 22 PCI-E 3.0 x4PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2260/2280/221102260/2280/22110
  • Key: M-KeyM-Key
  • RSTe software raid

System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • SMBIOS 3.0 or later
  • Riser card auto-detection support

Management
Software
  • SuperDoctor® 5, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring
Voltage
  • VBAT, System temperature, PCH temperature, Memory temperature, Memory, CPU temperature, CPU, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH, 5 (4-pin)
Temperature
  • CPU thermal trip support
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • 5 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z490-PG 1 C9Z490-PG Motherboard
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z490-PG 1 C9Z490-PG Motherboard
BACK PLATE(I/O Shield) MCP-260-00147-0N 1 -
Driver CD CBL-SAST-1001-2 1 -
Quick Reference Guide MNL-2238-QRG 1 -
S-Connector JMP-0010L-0000-PRX 1 -
SATA Cables CBL-SAST-1000-2 2 Right-Angle SATA Cable
Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V 1 -
Chassis (Optimized for C9Z490-PG)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-754K
SCGS5A-753B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
C9Z490-PG
