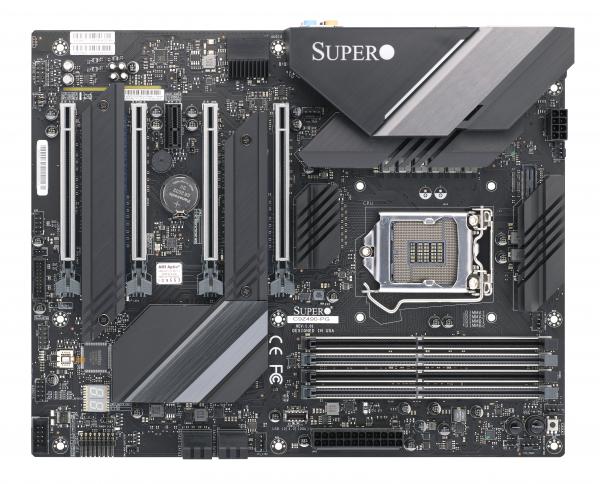

Supermicro Motherboard Xeon Boards C9Z490-PGW

Desktop
Overclock
WiFi

Key Features

  1. 10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 140W TDP
  2. Intel® Z490
  3. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
    2933 MHz to 4000+MHz(OC) in four 288-pin memory slots.
  4. 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8),
    1 PCI-E 3.0 x1
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi, RAID 0 & 1
    M.2 Form Factor: 2260/2280/22110
    M.2 Key: M-Key, E-Key
    RSTe software raid; M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module

    2 M.2 M-Key PCI-E 3.0 x4, 2260/2280/22110

  5. 1 DP (DisplayPort) port, 1 HDMI port,
    DP version 1.4, HDMI version 2.0a
  6. Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller

Specifications
Product SKUs
MBD-C9Z490-PGW
  • C9Z490-PGW

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • 10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 140W TDP

System Memory
Memory Capacity
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  • 2933 MHz to 4000+MHz(OC) in four 288-pin memory slots.
Memory Type
  • 128GB DDR4 Unbufferred Non ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z490
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
Audio
  • ALC 1220 HD Audio
Graphics
  • DP version 1.4, HDMI version 2.0a

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
USB
  • 4 USB 2.0 ports (4 via headers)
  • 4 USB 3.2 Gen1 ports (2 via headers + 2 Type A)
  • 4 USB 3.2 Gen2 ports (2 Rear Type A + 1 Rear Type C, 1 via header)
  • 1 USB 3.2 Gen2x2 ports (1 Type C)
Video Output
  • 1 DP (DisplayPort) port, 1 HDMI port,
  • DP version 1.4, HDMI version 2.0a
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8),
  • 1 PCI-E 3.0 x1
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi, RAID 0 & 1
  • Form Factor: 2260/2280/22110
  • Key: M-Key , E-Key
  • RSTe software raid; M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module 2 M.2 M-Key PCI-E 3.0 x4, 2260/2280/22110

System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • SMBIOS 3.0 or later
  • Riser card auto-detection support

Management
Software
  • SuperDoctor® 5, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, Memory, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature
  • 2 CPU Fan header and 3 system Fan header and 1 water cooler power connecter
FAN
  • 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Fan speed control, Overheat LED indication
Temperature
  • CPU thermal trip support
LED
  • N/A
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z490-PGW 1 C9Z490-PGW Motherboard
--

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z490-PGW 1 C9Z490-PGW Motherboard
SATA CablesCBL-SAST-1000-22
BACK PLATE(I/O Shield)MCP-260-00147-0N1 IO shield
S-ConnectorJMP-0010L-0000-PRX1 S-connector (Front Control Panel Connector/Adapter)
Quick Reference GuideMNL-2238-QRG1C9Z490-PG/-PGW Quick Reference Guide
Driver CD1C9 Driver CD
SATA CablesCBL-SAST-1001-22Right-Angle SATA Cable
WiFi+BT AntennaCBL-ANTDB-SMA2C7Z390-PGW WiFi+BT Antenna

C9Z490-PGW
