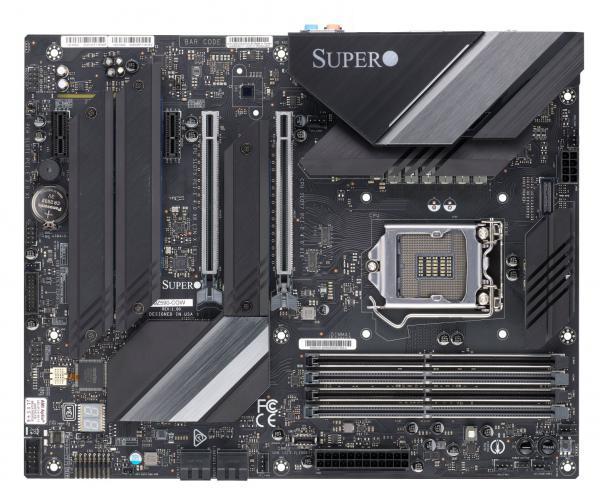

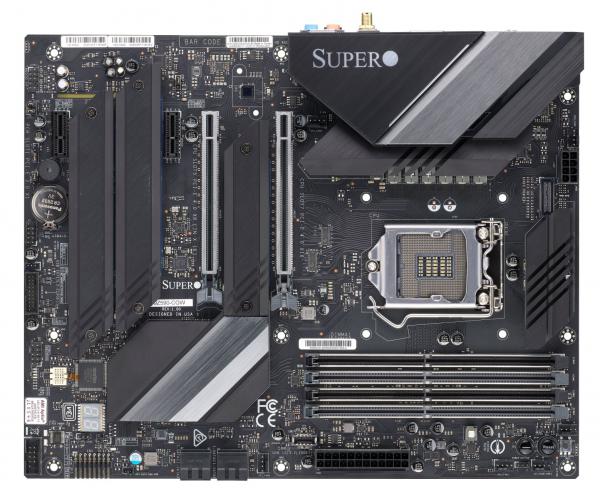

C9Z590-CG

Desktop
Overclock

Key Features


  1. 11th Generation Intel® Core™ i5/i7/i9 Processors
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  2. Intel® Z590
  3. 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
    (Slot#4 and Slot#6 can be configured as 16/NA, 8/8)
    M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4
    M.2 Form Factor: 2260/2280/22110
    M.2 Key: M-Key
    The CPU-attached M.2 slot is support with the Intel NVMe drives only (support RAID 0,1). _x005F_x000D_ PCH-attached M.2 slots can support either Intel optane memory with solid state or 3rd party NVMe SSD (support RAID 0,1)
  4. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  5. Single LAN with Intel® single Ethernet PHY i219V
    1Gb
    Single LAN with Marvell AQC113C
    10Gb
  6. 1 HDMI port, 1 DP (DisplayPort) port,
    DP version 1.4, HDMI version 2.0b



Resources
Specifications
Product SKUs
MBD-C9Z590-CG
  • C9Z590-CG

Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU
  • 11th Generation Intel® Core™ i5/i7/i9 Processors
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
  • Up to 8 cores

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB UDIMM, DDR4-3200MHz
Memory Type
  • 128GB Unbufferred Non
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z590
SATA
  • Intel® Z590 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 1220 7.1 HD Audio
Graphics
  • DP version 1.4, HDMI version 2.0b
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V, 1Gb
  • Single LAN with Marvell AQC113C, 10Gb

Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 2 USB 3.2 Gen2 port(s) (2 rear type A)
  • 6 USB 2.0 port(s) (2 via header; 4 rear)
  • 3 USB 3.2 Gen2x2 port(s) (1 via header; 2 rear type C)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
  • (Slot#4 and Slot#6 can be configured as 16/NA, 8/8)
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4; 1 PCI-E 4.0 x4
  • Form Factor: 2260/2280/22110
  • Key: M-Key
  • The CPU-attached M.2 slot is support with the Intel NVMe drives only (support RAID 0,1).
    PCH-attached M.2 slots can support either Intel optane memory with solid state or 3rd party NVMe SSD (support RAID 0,1)

System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • SMBIOS 3.0 or later
  • Riser card auto-detection support

Management
Software
  • SuperDoctor® 5
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring
Voltage
  • VBAT, System temperature, PCH temperature, CPU temperature, CPU, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH, 5 (4-pin)
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • 5 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z590-CG 1 C9Z590-CG Motherboard
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z590-CG 1 C9Z590-CG Motherboard
BACK PLATE(I/O Shield) JMP-0010L-0000-PRX 1 C9Z590-CG(W) I/O shield
Driver CD CBL-SAST-1000-2 1 C9Z590-CG(W) Driver CD
Quick Reference Guide MNL-2335-QRG 1 C9Z590-CG(W) Quick Reference Guide
SATA Cables MCP-260-00161-0N
CBL-SAST-1001-2
2
2
Right-Angle SATA Cable
SATA Cables
Optional Parts List
Name Part Number Qty Description
CPU heat sink(optional, not included) SNK-P0051AP4
SNK-P3017A
1
1
CPU heat Sink
Water Cooling module(closed loop Liquid cooling)
TPM security module (optional, not included) AOM-TPM-9671V
AOM-TPM-9670V
1
1
-
-
Chassis (Optimized for C9Z590-CG)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-903B
SC732D3-1200B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for C9Z590-CG)
Server Name
SYS-530AD-I
C9Z590-CG
