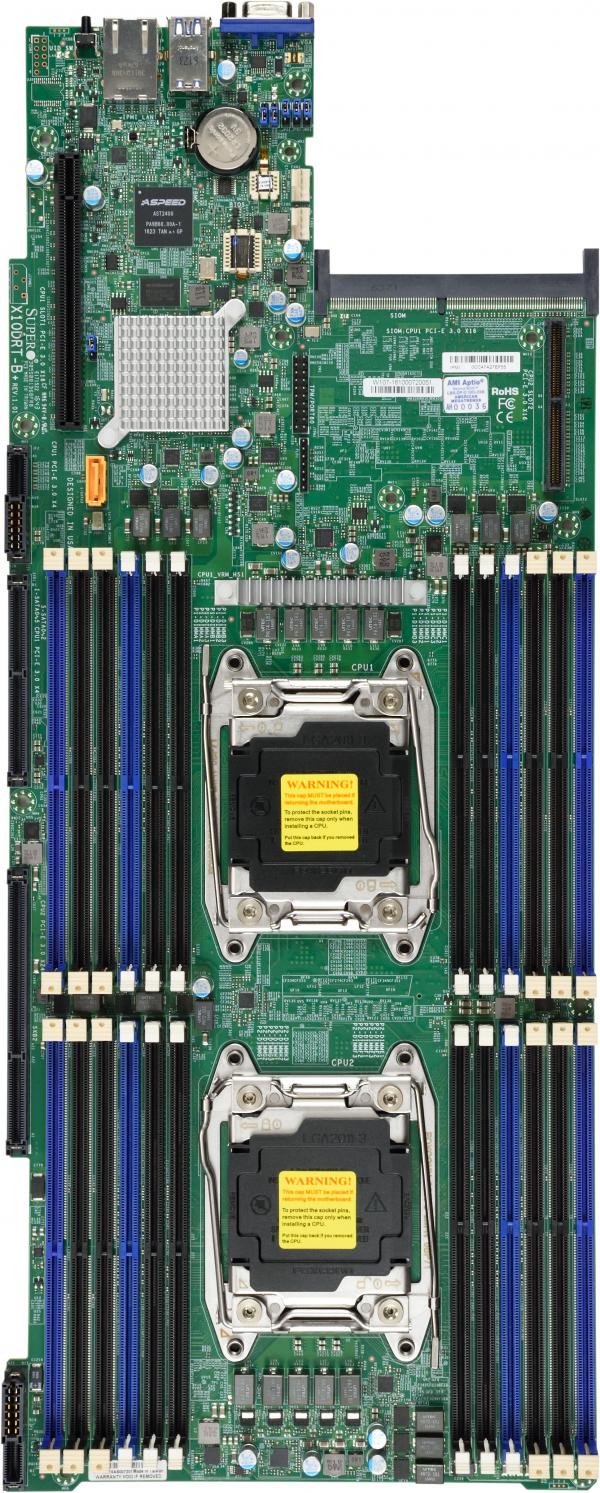

Supermicro Motherboard Xeon Boards X10DRT-B+

SIOM LAN Support
24 DIMMs
Key Features

  1. Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
    Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP
  2. Intel® C612
  3. Up to 3TB 3DS ECC LRDIMM, DDR4-2400MHz, in 24 DIMM slots
  4. 1 PCI-E 3.0 x16 Left Riser Slot,
    1 PCI-E 3.0 x16 Right Riser Slot
    1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card) 1 PCI-E 3.0 x16 SIOM LAN Networking Slot 2 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card)
  5. 1 VGA port
  6. Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 1 PCI-E 3.0 x16 SIOM LAN Networking Slot

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10DRT-B+
  • X10DRT-B+

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 18.86" x 7.61" (47.9cm x 19.33cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP

System Memory
Memory Capacity
  • Up to 3TB 3DS ECC LRDIMM, DDR4-2400MHz, in 24 DIMM slots
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2400 BMC
Network Controllers
  • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot
Graphics
  • Aspeed AST2400 BMC

Input / Output
USB
  • 2 USB 3.0 ports (2 rear)
Video Output
  • 1 VGA port
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16 Left Riser Slot,
  • 1 PCI-E 3.0 x16 Right Riser Slot
  • 1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card) 1 PCI-E 3.0 x16 SIOM LAN Networking Slot 2 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card)

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.3.1

Management
Software
  • KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control
FAN
  • 2x 4-pin fan headers (up to 2 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
  • UID, WOL

Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10DRT-B+ 1 X10DRT-B+ Motherboard
--


Chassis (Optimized for

X10DRT-B+

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC217BHQ+-R2K22BP SC217BHQ+-R2K22BP

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for X10DRT-B+)
Server Name
SYS-2028BT-HNR+
SYS-2028BT-HTR+
SYS-2028BT-HNC0R+
SYS-6028BT-HNC0R+
SYS-2028BT-HNC1R+
X10DRT-B+ (For SuperServer Only)
