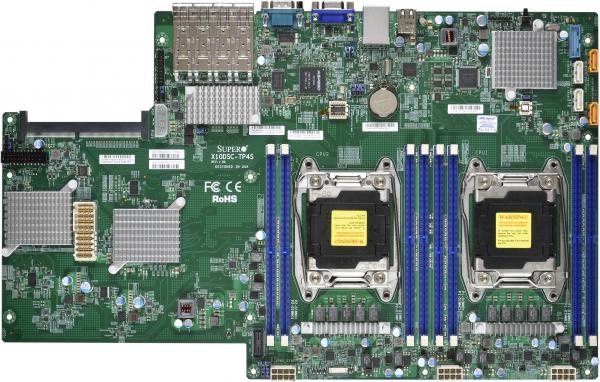

Supermicro Motherboard Xeon Boards X10DSC-TP4S

SIOM LAN Support
Broadcom 3008 SAS3 SW RAID
SAS3 AOM Support
Key Features

  1. Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. , Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
  2. Intel® C612
  3. 256GB Registered ECC RDIMM, DDR4-2400MHz, in 8 DIMM slots

  4. SIOM Expansion Slot for additional LAN support
  5. 1 VGA port
  6. SAS3 (12Gbs) ports; RAID 0,1,10, JBOD support (IT Mode) 2x Broadcom® SAS3008 I/0 Controllers
  7. Quad LAN with 10G SFP+
    Intel® X710 Family Controller (XL710BM-1 Chip)

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10DSC-TP4S
  • X10DSC-TP4S

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 16.97" x 10.47" (43.1cm x 26.59cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

System Memory
Memory Capacity
  • 256GB Registered ECC RDIMM, DDR4-2400MHz, in 8 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • N/A

On-Board Devices
Chipset
  • Intel® C612
SATA
  • SAS3 (12Gbs) ports; RAID 0,1,10, JBOD support (IT Mode) 2x Broadcom® SAS3008 I/0 Controllers
Network Controllers
  • Quad LAN with 10G SFP+
    Intel® X710 Family Controller (XL710BM-1 Chip)
Graphics
  • Aspeed AST2400 BMC

Input / Output
USB
  • 4 USB 2.0 ports (2 rear + 2 headers)
  • 2 USB 3.0 ports (2 rear)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • SIOM Expansion Slot for additional LAN support

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
  • IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5
System Management Software
  • SuperDoctor 5

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, 5 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control
FAN
  • Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature
  • N/A
LED
  • N/A
Other Features
  • Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, System level control, UID
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10DSC-TP4S 1 X10DSC-TP4S Motherboard
--


Chassis (Optimized for

X10DSC-TP4S

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for X10DSC-TP4S)
Server Name
SSG-6048R-E1CR90L
X10DSC-TP4S (For SuperServer Only)
