Single-Socket Blade SBI-6119PW-C3N

  Products  SuperBlade  Single-Socket Blade   [ SBI-6119PW-C3N ]









Integrated Board
B11SPE-CPU-TF

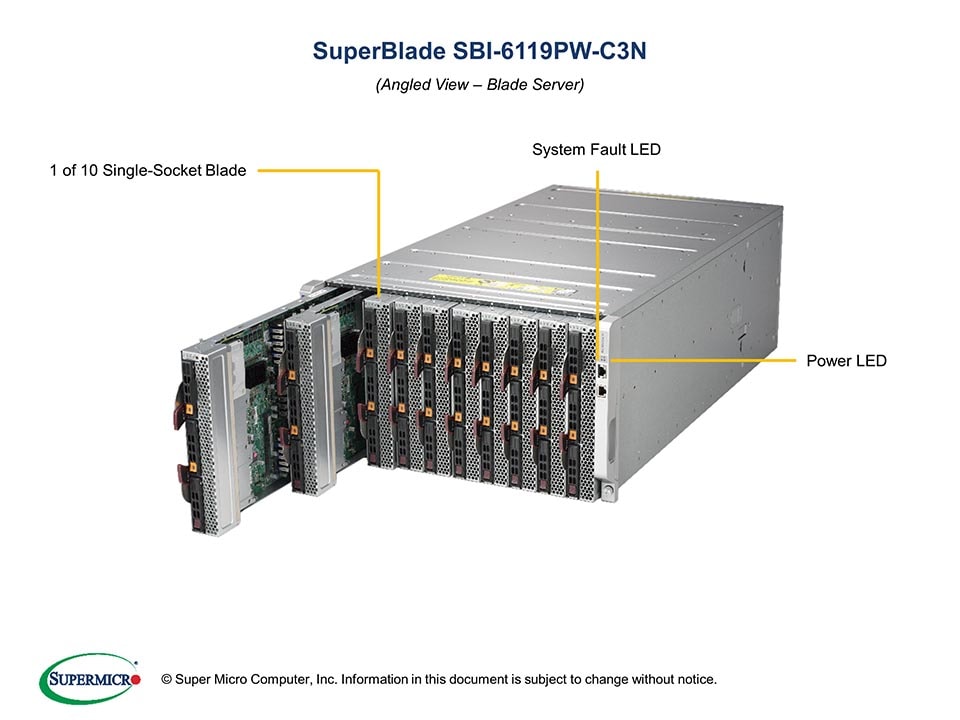

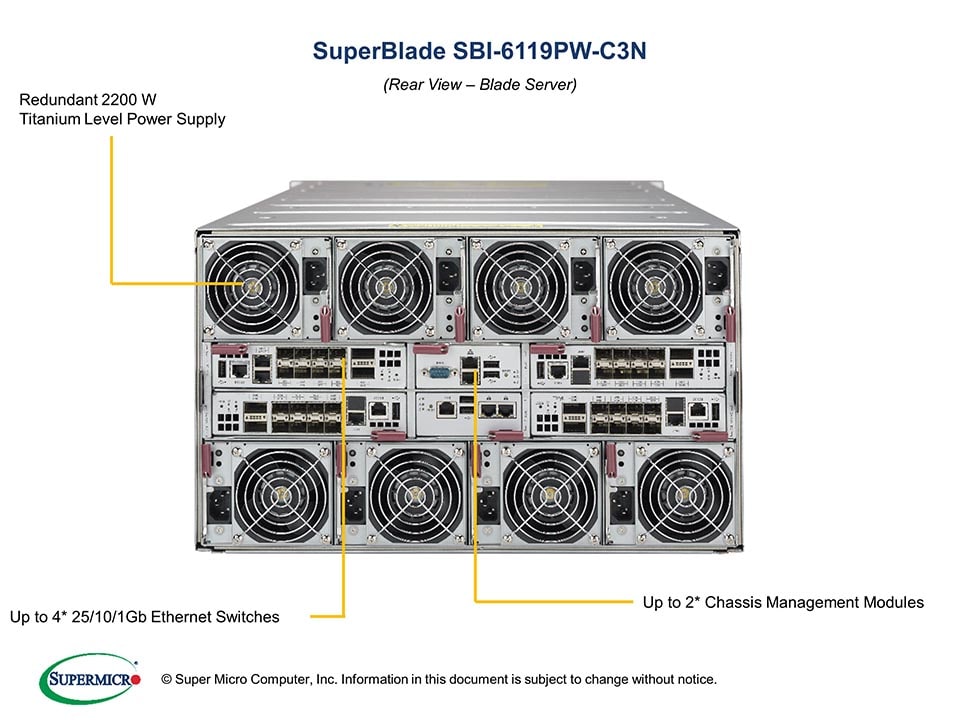

Views: | Angled View | Rear View |

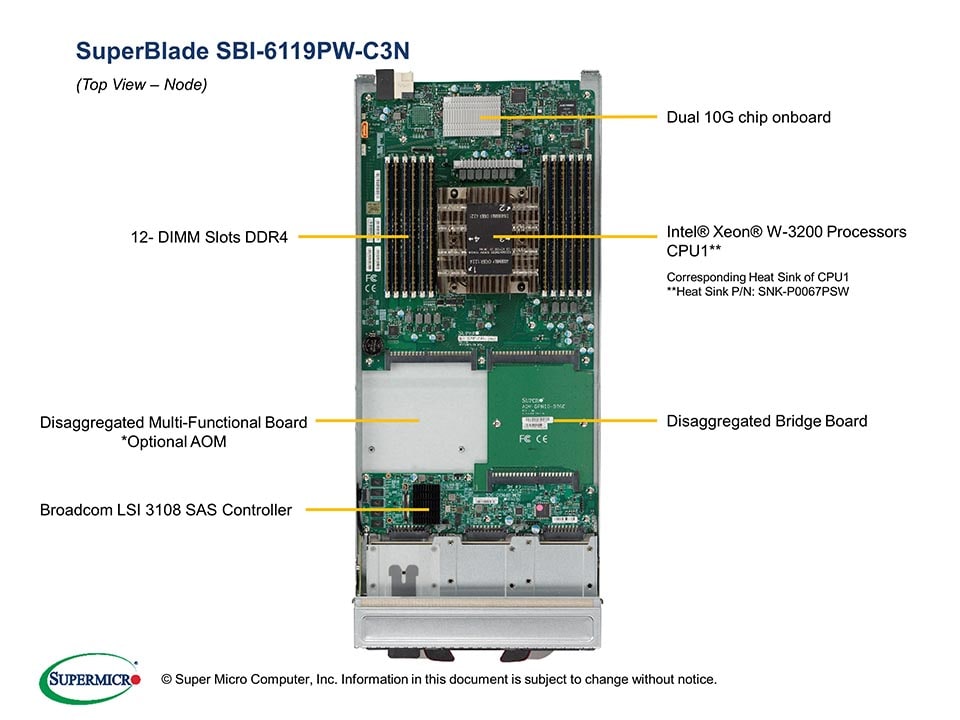

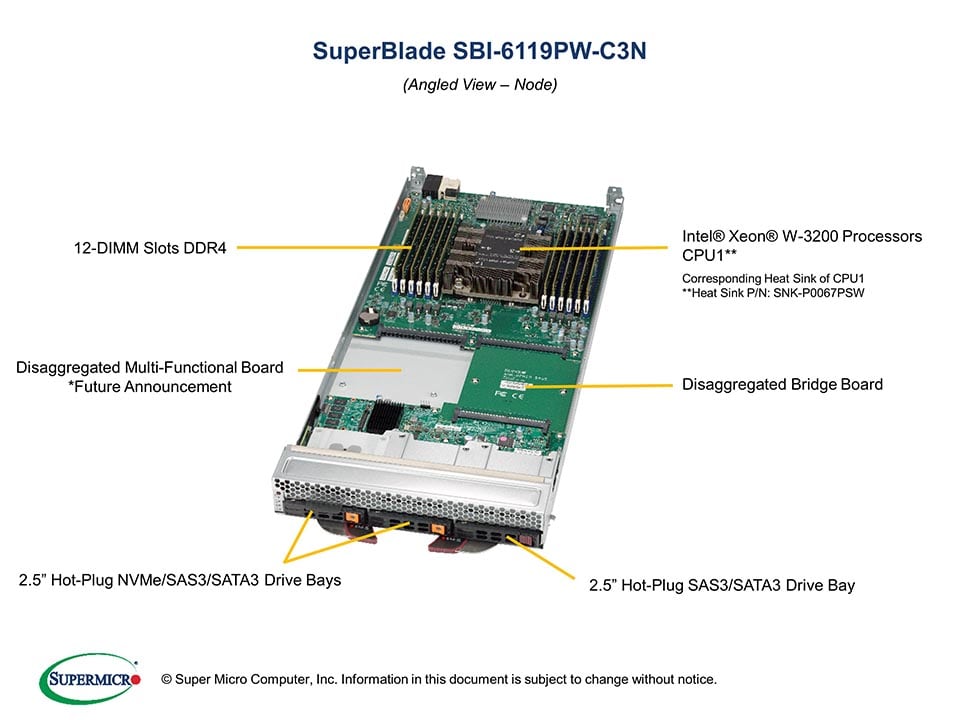

| Angled Node View | Top Node View |





Key Features

1. 70 CPUs per 42U Rack
2. Single socket P (LGA 3647) supports

    Intel® Xeon® W-32xx processors
3. Intel® C622 chipset
4. 12 DIMMs; up to 3TB 3DS ECC

    DDR4-2933MHz RDIMM/LRDIMM
5. 2 Hot-plug 2.5" NVMe + 1 Hot-plug

    SAS3/SATA3 drives or 3 SAS3/SATA3
6. Broadcom 3108 HW RAID
7. Dual 10G onboard
8. IPMI 2.0, KVM over IP, Virtual Media

    over LAN
9. Graphics: Aspeed AST2500 BMC



 Drivers & Utilities  BIOS / BMC  Manuals  Tested Memory

 Tested HDD  Tested NVMe  OS Certification Matrix  Quick-References Guide  Download Driver CD





Product SKUs
SBI-6119PW-C3N
  • Single-Socket Blade SBI-6119PW-C3N

Motherboard


Super B11SPE-CPU-TF

Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • Intel® Xeon® W-32xx processors
  • Support CPU TDP up to 205W

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
  • 2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices
Chipset
  • Intel® C622 chipset
SAS
  • Broadcom 3108 SAS3 (12Gbps) controller;

       HW RAID 0, 1, 5 support; 2GB Cache
Network Controllers
  • Dual 10G LAN with Intel® X722
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics
  • Aspeed AST2500 BMC

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Dimensions
Height
  • 9.75"
Width
  • 1.75"
Depth
  • 23.5"
Weight
  • 10.5 lbs (4.76 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • UID / KVM LED
  • Network Activity LED
  • Fault LED

Drive Bays
Hot-swap
  • 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 or 3 SAS3/SATA3

Input / Output
TPM
  • 1 TPM Header

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)


Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-B11SPE-CPU-TF

MCP-680-61002-0N
1

1
Super B11SPE-CPU-TF Motherboard

6U 10 SuperBlade UP Blade chassis
Add-on Card / Module AOM-BPNIO-SCE-P 1 AOM-BPNIO-SC, I/O module for uBlade,RoHS
Add-on Card / Module AOM-BPNIO-BRGE-P 1 Bridge Board
Add-on Card / Module AOM-BPNIO-SCE-P 1 I/O module for 6U Super Blade,RoHS , support up to 2 NVMe or 3 SAS
Hard Drive Tray MCP-220-00170-0B 2 Black hot swap tool-less NVMe 2.5" HDD tray with orange button for SuperBlade use
Hard Drive Tray MCP-220-00169-0B 1 Black hot swap tool-less 2.5" HDD tray for SuperBlade use
Air Shroud MCP-310-61002-0B 1 6U 10 SuperBlade B11SPE Processor Tray Air Shroud, Wide
Air Shroud MCP-310-61003-0B 1 6U 10 SuperBlade B11SPE Processor Tray Air Shroud, Narrow
Optional Parts List
  Part Number Qty Description
TPM security module

(optional, not included)
AOM-TPM-9670V
AOM-TPM-9671V
1 TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Heatsink / Retention SNK-P0067PSW 1 1U Proprietary 105-mm Wide Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
AOC AOC-VROCPREMOD

AOC-VROCSTNMOD

AOC-VROCINTMOD
-

-

-
Intel VROC Premium, RAID 0, 1, 5, 10

Intel VROC HW key (RSTe) standard upgrade module

Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
