SuperServer 2028BT-HNR+ (Complete System Only)

  Products  Systems   BigTwin   [ 2028BT-HNR+ ]




Integrated Board
Super X10DRT-B+

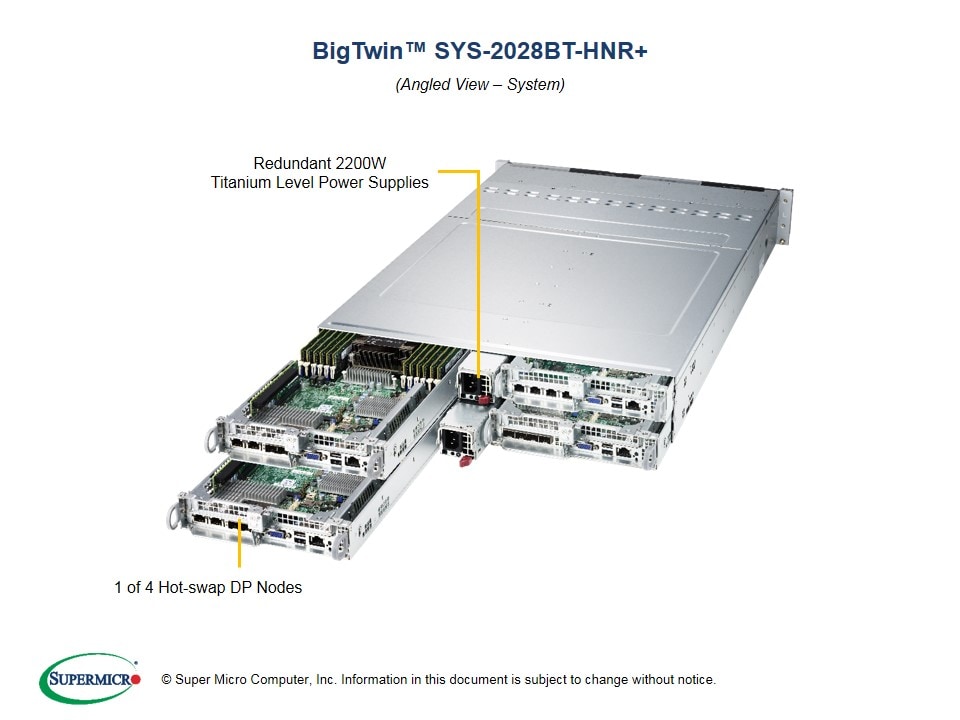

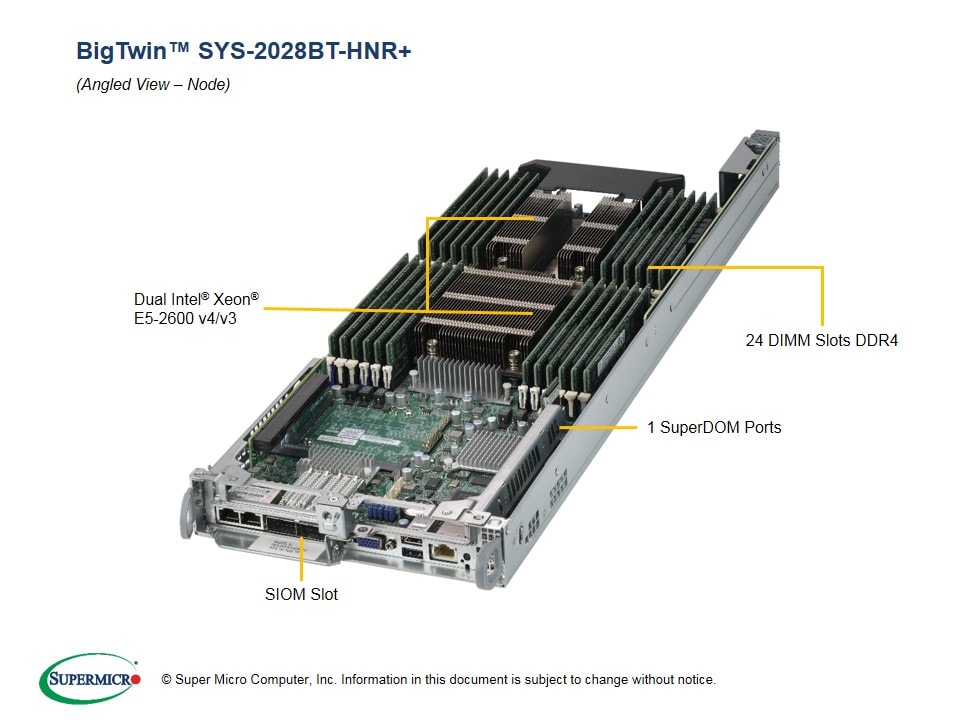

Views: | Angled View | Node View |

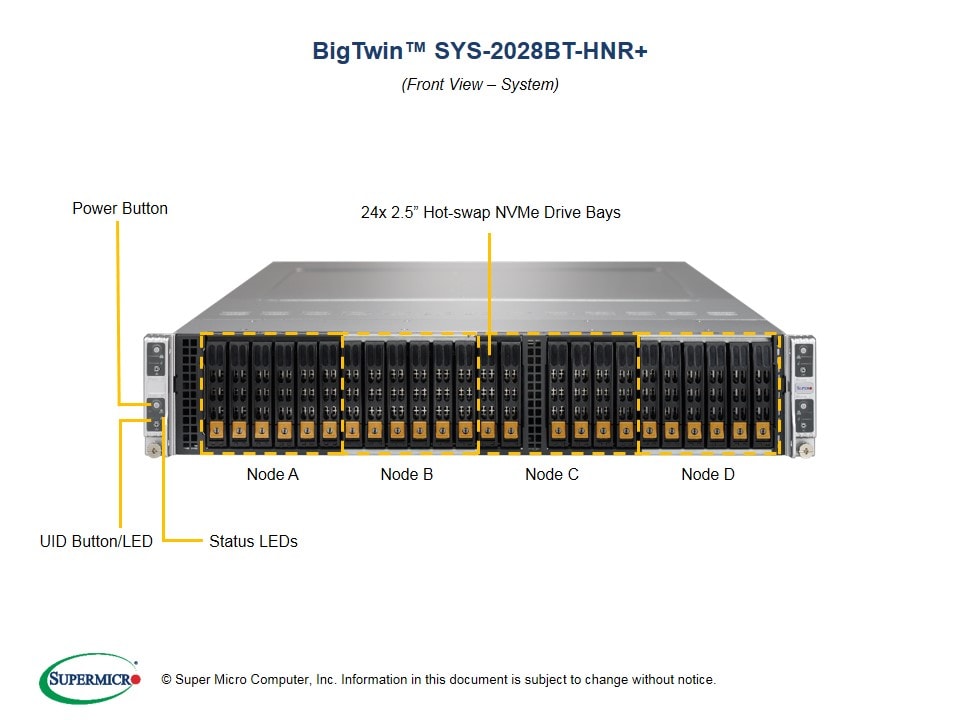

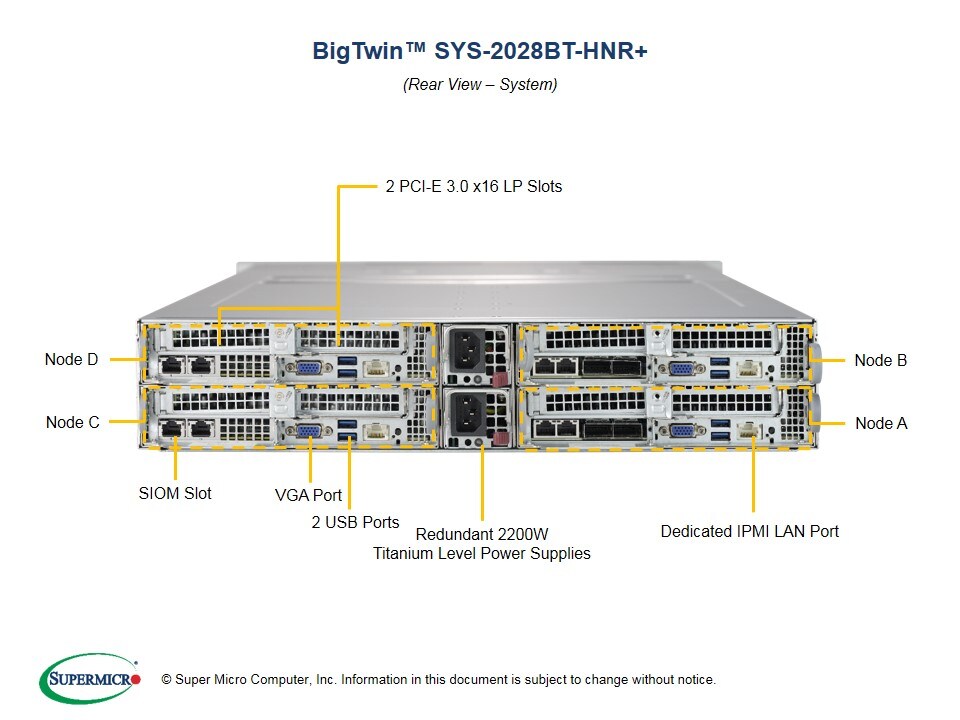

| Front View | Rear View |

 Key Features
  - Compute Intensive Application
  - HPC, Data Center
  - Enterprise Server
  - Financial Analysis
  - Mission-critical applications

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 24 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 Hot-swap 2.5" NVMe drive bays
6. Video via Aspeed AST2400 BMC
7. 4x 8cm heavy duty PWM fans with
    air shroud
8. 2200W Redundant Power Supplies
    Titanium Level
9. 2 M.2 Cards support
    Supermicro BigTwin
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 NVMe and 1 SIOM card per node).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Tested SIOM  Network Card (AOC) Matrix

Product SKUs
SYS-2028BT-HNR+
  • SuperServer 2028BT-HNR+ (Black)

Motherboard

Super X10DRT-B+

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network
  • Must bundle with at least one SIOM network card
Video
  • ASPEED AST2400 BMC

Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Others
  • M.2 and SATA DOM for boot drive only
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP

Dimensions and Weight
Width
  • 17.6" (447mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2 Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card (must bundle with network card)

Drive Bays (per Node)
Hot-swap
  • 6 Hot-swap 2.5" NVMe drive bays

System Cooling
Fans
  • 4 heavy duty 8cm PWM fans with air shroud

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRT-B+
CSE-217BHQ+-R2K22BP		 4
1		 Super X10DRT-B+ Motherboard
2U Chassis
Backplane BPN-ADP-6NVME3-1UB 4 6x NVMe ports and 50A power sourcing daughter card for Big Twin
Backplane BPN-NVME3-217BHQ 1 2U 24-Port 4-Node NVMe Backplane Support 6x2.5
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Drive Tray(s) MCP-220-00127-0B-BULK 24 Black gen3 Hotswap 2.5 NVMe drive tray, Orange tab/Lock/Bulk
Parts MCP-240-21721-0N 1 217B BigTwin type I (Impact) BPN retention bkt assy
Air Shroud MCP-310-21706-0B 4 SC217B/827B BigTwin air shroud for X10DRT-B+
Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0047PSM 4 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
Heatsink / Retention SNK-P0057PS 4 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48


Optional Parts List
  Part Number Qty Description
Carrier card BPN-ADP-2M2-1UB - Carrier card for NVMe/SATA M.2 SSDs support, connect up to 2 M.2 SSD (up to 22x80 mm length SSDs are supported)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Network Card(s) AOC-STG-i2
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i4T
AOC-STGF-i2S
AOC-STG-i4S
AOC-STGS-i1T
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S
AOC-S40G-i1Q
AOC-S40G-i2Q
AOC-S100G-m2C
 		 -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
 		 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 4x 10G SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10G SFP+, PCI-E x8, Intel 82599ES
Standard LP, 1x 10G SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 + X557-AT4
Standard LP, 2x 10G SFP+, PCI-E x8, Intel XL710-BM1
Standard LP, 4x 10G SFP+, PCI-E x8, Intel XL710-BM1
Standard LP, 1x 10GbE RJ45, PCI-E x4, Intel X550-AT2
Standard LP, 2x 10GbE RJ45, PCI-E x4, Intel X550-AT2
Standard LP, 2x 25G SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25G SFP28, PCI-E x8, Mellanox ConnectX-4 LX EN
Standard LP, 1x 40GbE QSFP+, PCI-E x8, Intel XL710
Standard LP, 2x 40GbE QSFP+, PCI-E x8, Intel XL710
Standard LP, 2x 100GbE QSFP28, PCI-E x16, Mellanox ConnectX-4 EN
