SuperServer 5038ML-H8TRF

  Products  Systems   MicroCloud   [ 5038ML-H8TRF ]





Integrated Board
Super X10SLD-F

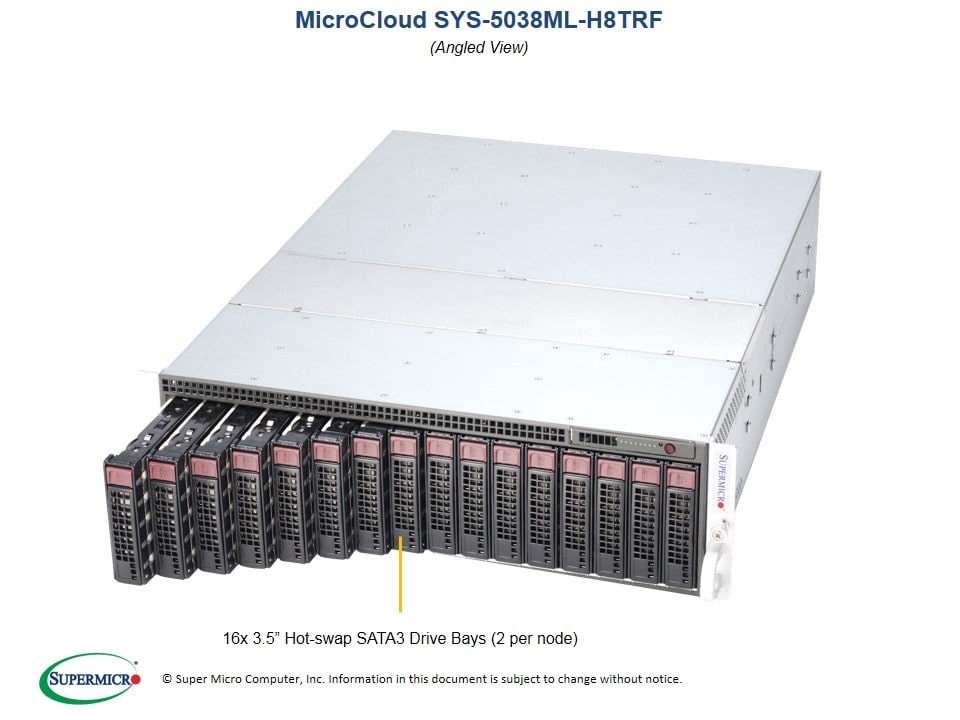

Views: | Angled View | Node View |

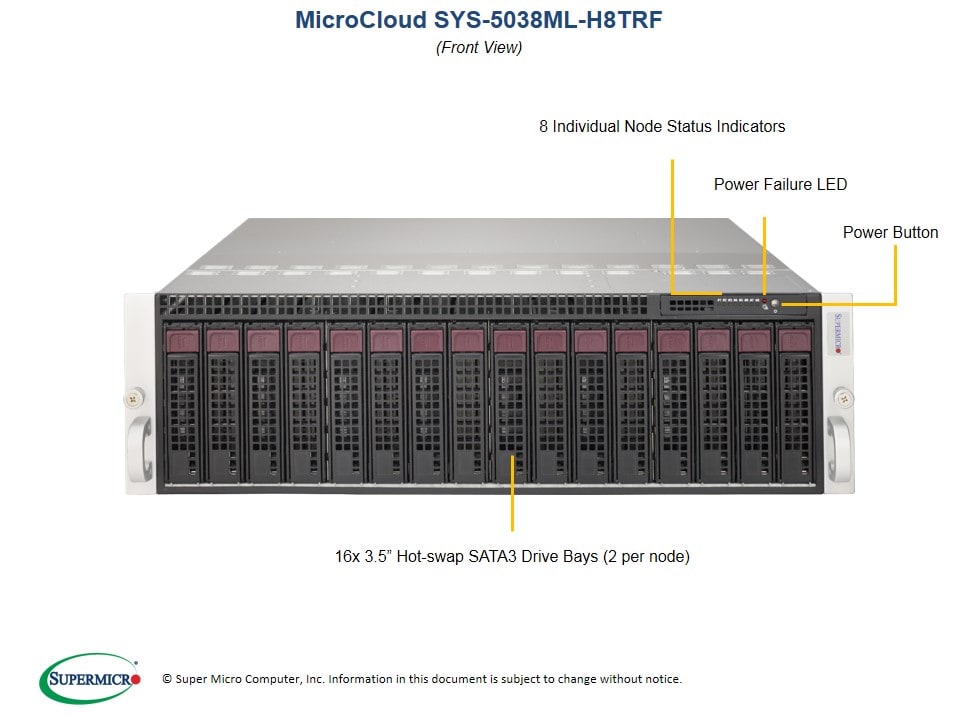

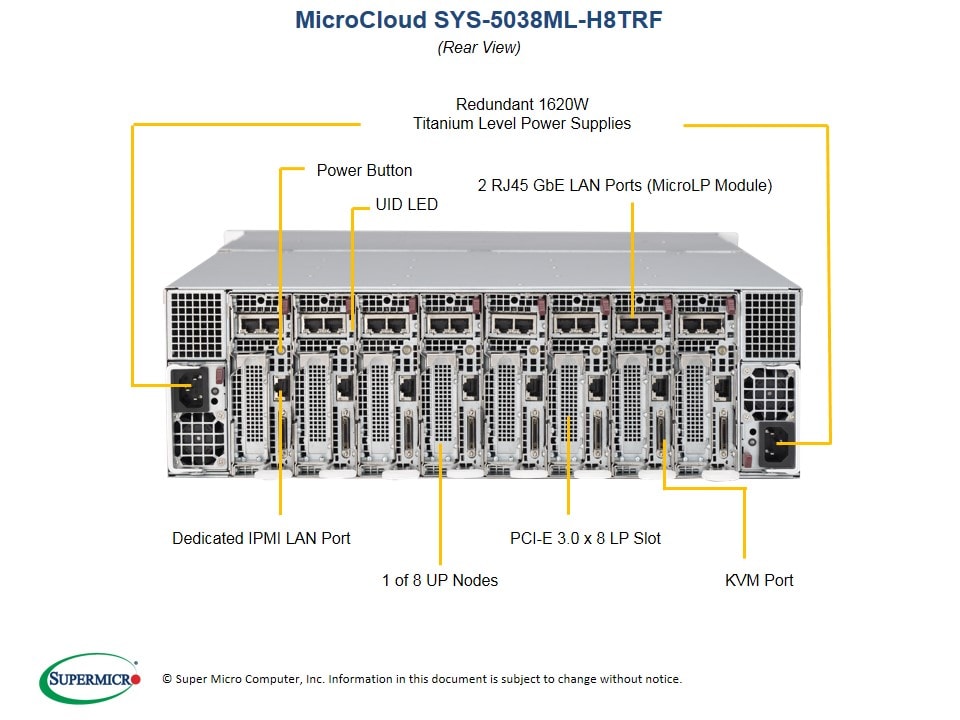

| Front View | Rear View |

Key Features (per node)
1. Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th/5th
    gen. Core™ i3, Pentium, Celeron
    processors; Socket H3 (LGA 1150)
2. 2x 3.5" SAS/SATA HDDs
3. Up to 32GB DDR3 ECC UDIMM
    1600/1333MHz support in 4 sockets
4. 2x GbE LAN (Intel i350), 1x Dedicated
    LAN for IPMI Remote Management
5. 1x PCI-E 3.0 x8 and 1x Micro-LP
6. 1x VGA, 1x COM ports, 2x USB 2.0
    (with KVM dongle)
7. 4x 8cm heavy duty hot-swap fans with
    optimal cooling zone (per system)
8. 1620W Redundant power supplies
    Platinum Level Certified
    (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5038ML-H8TRF (Black)

Motherboard
Super X10SLD-F

Alternative SKU
System
  • SYS-5038ML-H8TRF-OEM
MB + Chassis
  • MBD-X10SLD-HF +
    CSE-938BH-R1620B
Features
  • Support Intel VHD feature (With C226 PCH chipset)

Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ i3, Pentium, Celeron processors
  • Up to 84W
  • Socket H3 (LGA 1150)

System Memory (per node)
Memory Capacity
  • 4x 240-pin DDR3 DIMM slots
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

Expansion Slots (per node)
PCI-Express
  • 1x PCI-E 3.0 x8 Low-profile slot
  • 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional

Network Devices (per node)
Micro-LP NIC
  • Intel® i350 GbE controller
  • Dual RJ-45 connectors
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/O Acceleration Technology (I/O AT)
  • MicroLP Adapter Matrix (Networking options)

On-Board Devices (per node)
Chipset
  • Intel® C224 PCH chipset
SATA
  • 1x SATA DOM
  • 2x SATA3 (6Gbps) w/ RAID 0 and 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Input / Output (per node)
SATA
  • 2x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
DOM
  • SATA DOM (Disk on Module) power connector support
KVM
  • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938BH-R1620B

Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.26" (438.4 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Color
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Drive Bays (per node)
Internal
  • 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4x 8cm Heavy duty fans with optimal cooling zone

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SLD-F
CSE-938BH-R1620B
8
1
Super X10SLD-F Motherboard
3U Chassis
Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
Air Shroud MCP-310-93804-0B 8 938 mylar airshroud for X10SLD-F (X9 compatible),RoHS/REACH,PBF
Backplane BPN-SAS-938H 1 16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1535-QRG 1 5038ML-H8TRF Quick Reference Guide,PBF
Riser Card RSC-RR1U-E8 8 RSC-RR1U-E8
Heatsink / Retention SNK-P0047PS+ 8 Customized Passive CPU Heat Sink for Micro Cloud Series Servers
Power Supply PWS-1K62P-1R 2 1620W REDUNDANT POWER MODULE
Mounting Rail MCP-290-00057-0N - Rail set, quick/quick, default for 4U 17.2"W


Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0664
CBL-0118L-03
CBL-0476L
- For AOC-S3008L-L8i/AOC-S3108L-H8iR
For AOC-S2308L-L8i
For AOC-SAS2LP-H8iR
Storage Control Card and Cable(s) AOC-S3008L-L8i

AOC-S3108L-H8iR

AOC-S2308L-L8i
AOC-SAS2LP-H8iR

- Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0/1/10 (requires heatsink SNK-P0047PSM)
Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0/1/5/6/10/50/60 (requires heatsink SNK-P0047PSM)
Std LP, 8 internal ports, 6Gb/s per port- Gen3, RAID 0/1/10
Std LP, 8 internal ports, 6Gb/s per port- Gen3, RAID 0/1/5/6/10/50/60
NOTE: SYS-5038ML-H8TRF is designed to support max 6GB/s
Network Card(s) AOC-CGP-i2
AOC-CTGS-i2T
AOC-CTG-i1S
AOC-CTG-i2S
AOC-CIBF-m1
AOC-CIBQ-m1
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-i2
AOC-STG-i2T
AOC-STGN-i1S
AOC-STGN-i2S
- MicroLP, 2x 1GbE, PCI-E 2.0 x4, Intel® i350
MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR
MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 QDR
Standard LP 2-port 40GbE controller, Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
