SuperServer 4028GR-TRT2

  Products  Systems   GPU   [ 4028GR-TRT2 ]





Integrated Board

X10DRG-OT+-CPU


X10DRG-O-PCIE

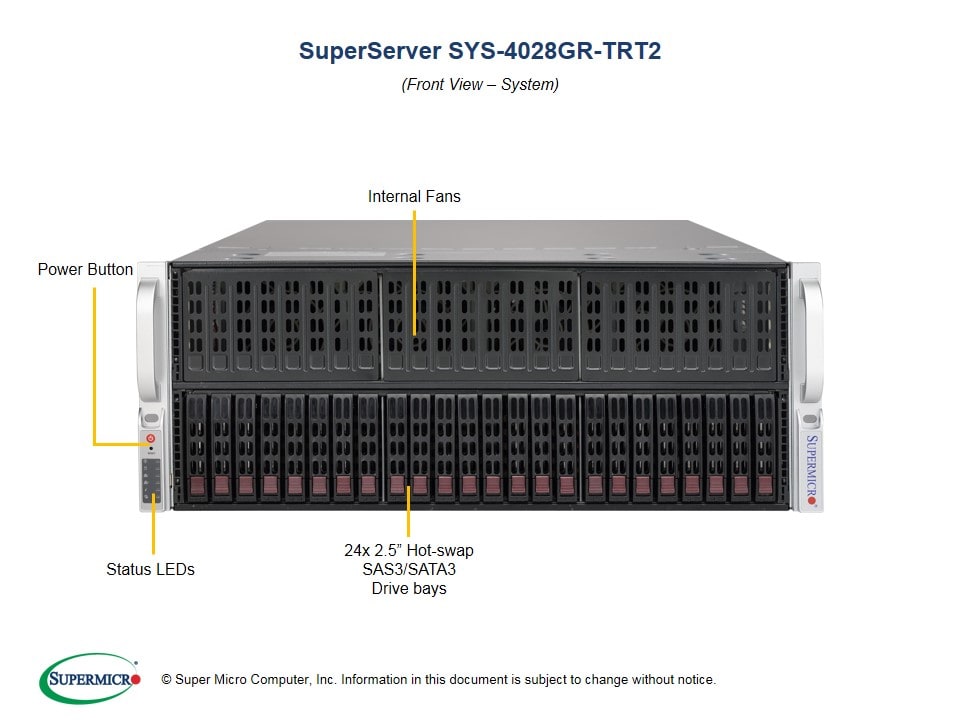

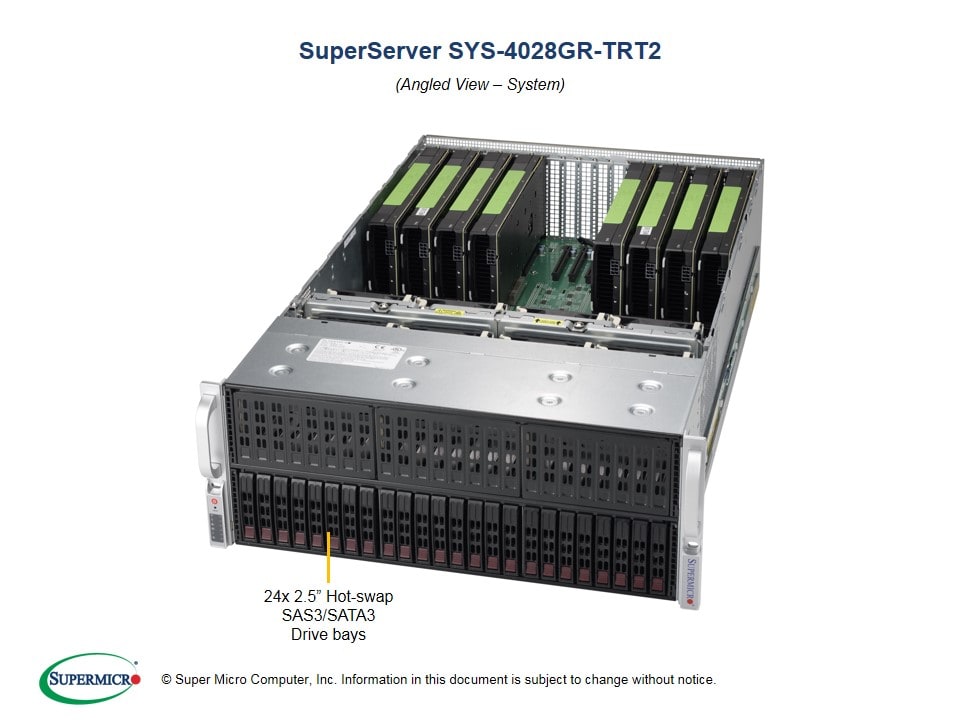

Views: | Angled View | Top View |

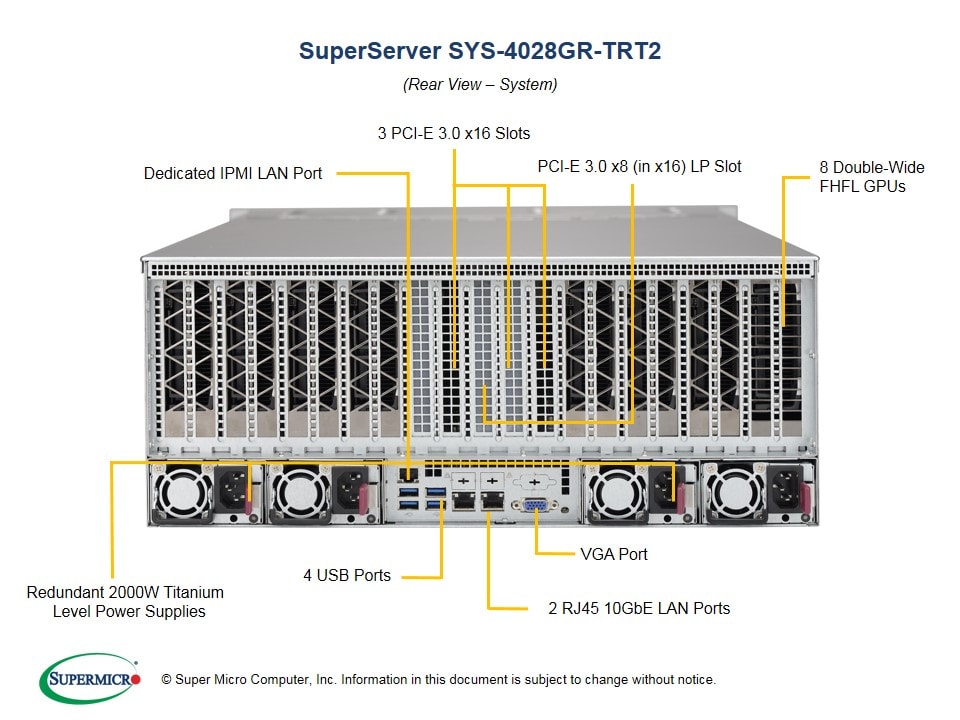

| Front View | Rear View |


Key Features
  - GPUs under Single-Root complex
  - Supports RDMA

1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 24x DIMM slots
3. Expansion slots, Single Root Complex,
    11 PCI-E 3.0 x16 (FH, FL) slots
    1 PCI-E 3.0 x8 (in x16) slots
4. 2 10GBase-T LAN with Intel® X540
5. 24 Hot-swap 2.5" drive bays
6. 8 Hot-swap 92mm cooling fans
7. 2000W Redundant (2+2) Power
    Supplies; Titanium Level (96%+)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Compatible GPU List  Drive Options

Product SKUs
SYS-4028GR-TRT2
  • SuperServer 4028GR-TRT2 (Black)

Motherboard

Super X10DRG-OT+-CPU

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual 10GBase-T Ports with Intel® X540
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports
Video
  • 1 VGA Connector
Serial Port
  • 1 Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-418GTS-R4000B

Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 24 Hot-swap 2.5" hard drive bays

Expansion Slots
PCI-Express
  • 11 PCI-E 3.0 x16 (FH, FL) slots
  • 1 PCI-E 3.0 x8 (in x16) slots
  • Single Root Complex

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 8 Hot-swap 92mm cooling fans
Shrouds
  • 1 Air Shroud (MCP-310-41808-0B)

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 8 fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRG-OT+-CPU
MBD-X10DRG-O-PCIE
CSE-418GTS-R4000B
1
1
1
Super X10DRG-OT+-CPU Motherboard
Super X10DRG-O-PCIE Motherboard
CSE-418GTS-R4000B Chassis
Air Shroud MCP-310-41808-0B 1 Mylar PCIe air shroud for SC418G
Backplane BPN-SAS3-216A 1 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0591 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG
Cable 2 CBL-0449L 2 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
Cable 3 CBL-PWEX-0582 8 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1800-QRG 1 SYS-4028GR-TR(T) Quick Reference Guide,HF,RoHS/REACH
Riser Card RSC-X9DRG-O 4 RSC-X9DRG-O
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-2K05A-1R 4 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH


Optional Parts List
  Part Number Qty Description
Cable CBL-PWEX-0665 - PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40/P100/P40 GPU power for 300W card, 30cm, 18AWG
Add-on Card Dummy MCP-240-00096-0N - GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
Bracket MCP-120-00016-00 - Blank FH L-bracket (with Tesla P4)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
  Note: For Coprocessors, GPUs, VCA, FPGA cards not listed in table above please contact sales to discuss compatibility.
Hide Parts List
