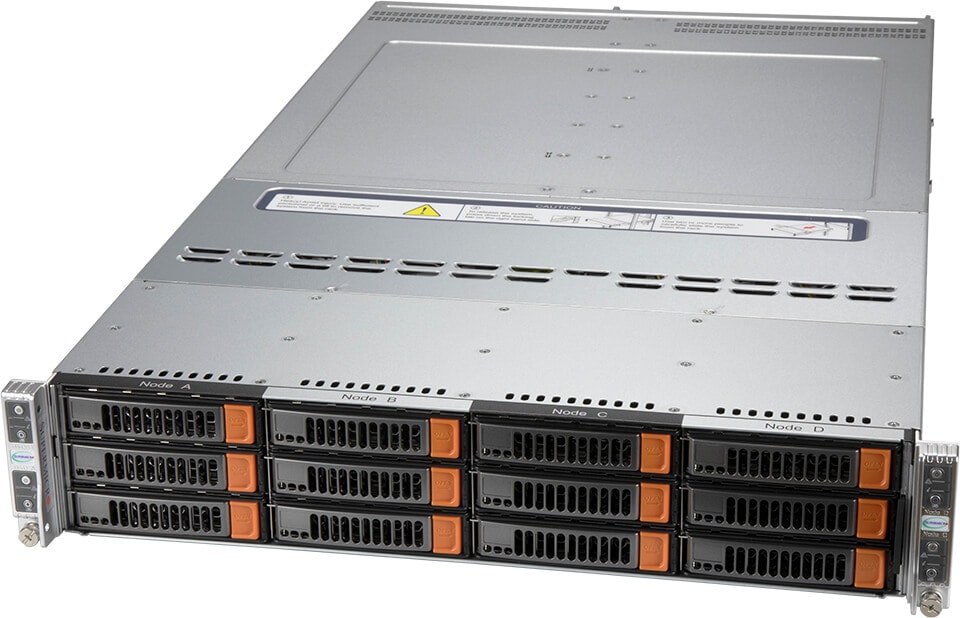

SuperServer SYS-620BT-HNC8R (Complete System Only)

SYS-620BT-HNC8R Main SYS-620BT-HNC8R Angle SYS-620BT-HNC8R Node SYS-620BT-HNC8R Front SYS-620BT-HNC8R Rear
Integrated Board: X12DPT-B6
Learn more

Key Applications

  • Hyperconverged Infrastructure
  • Scale-Out File Storage
  • Container Storage

Key Features

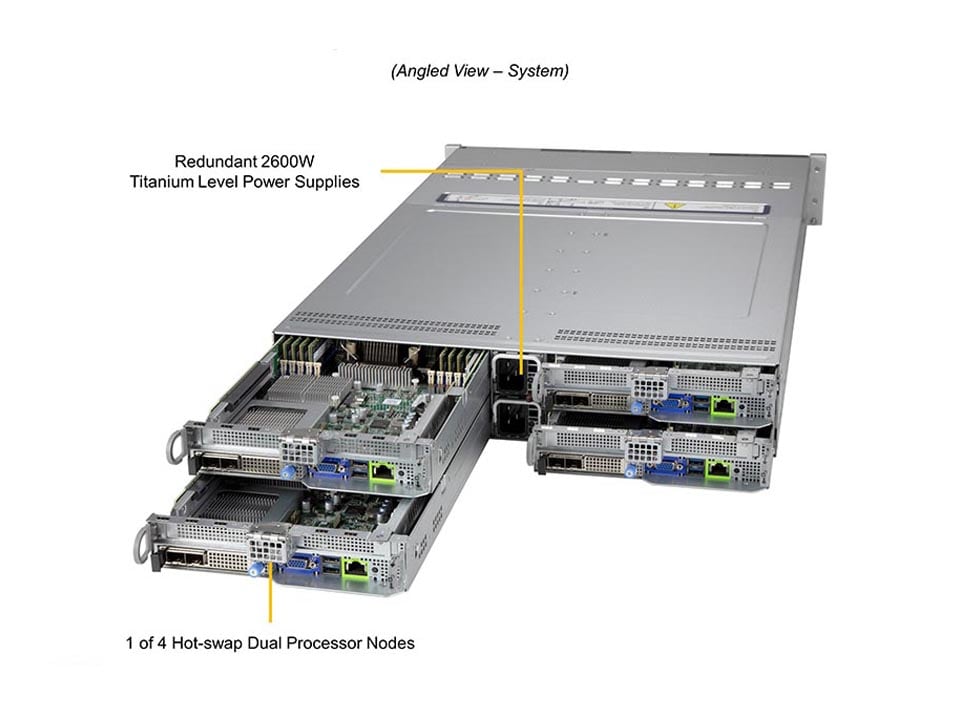

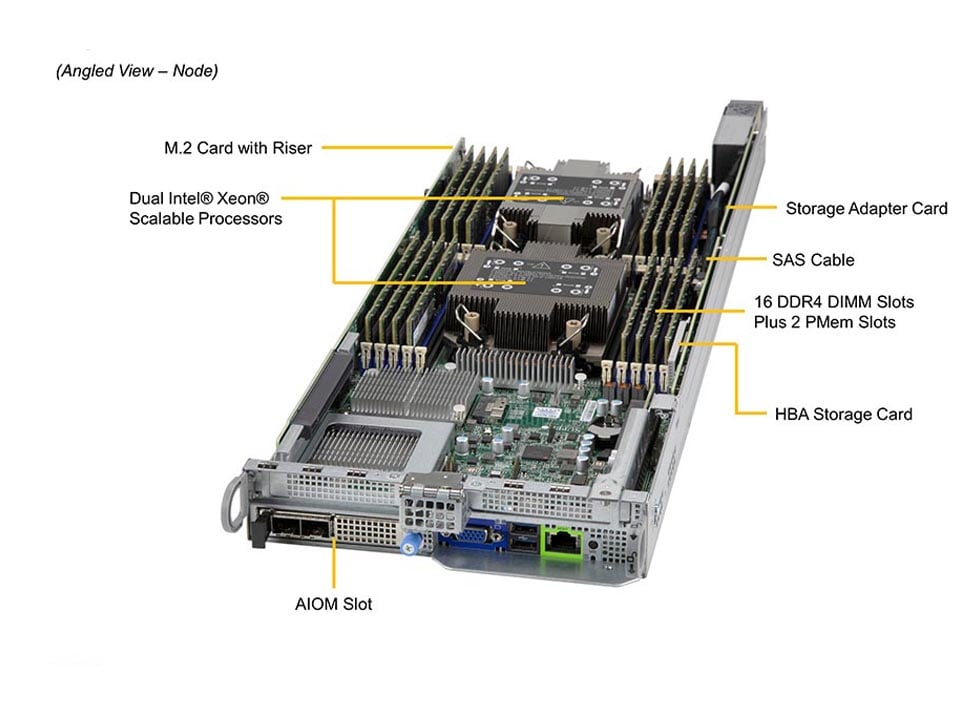

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A
  3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
  4. 2 PCIe 4.0 x16 (LP) slot;
    Tool-less support
    Internal PCIe 4.0 x8 for 2 M.2 NVMe/SATA support onboard
    Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  5. Network connectivity via AIOM (OCP 3.0 compliant)
  6. 3 Hot-swap 3.5" drive bays; 3 PCIe 4.0 NVMe/SAS/SATA 3.5" drives
  7. 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
    Liquid Cooling Support
  8. 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  9. Built-in SAS3 Support via Broadcom 3808; IT Mode
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-620BT-HNC8R (Black)
Motherboard
Super X12DPT-B6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Supports up to 2 DW GPUs
System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
  • Memory Type: 3200MHz ECC DDR4 RDIMM
  • Intel® Optane™ persistent memory 200 series
On-Board Devices (per Node)
SAS
  • SAS3 (12Gbps) via Broadcom® 3808 (IT mode)
Chipset
  • Intel® C621A
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

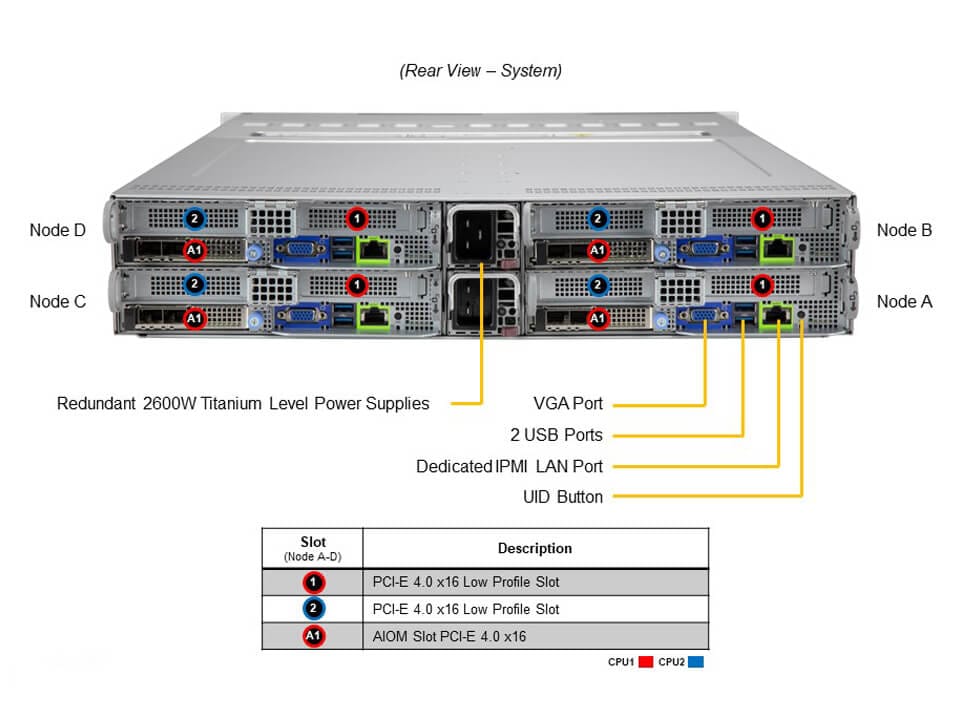

Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Others
  • M.2 for boot drive only
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Power Configurations
  • ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BQ-000NP
Dimensions and Weight
Height
  • 3.47" (88mm)
Width
  • 17.68" (449mm)
Depth
  • 30.5" (774mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Net Weight: 66.1 lbs (30 kg)
  • Gross Weight: 96.6 lbs (43.8 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
  • 2 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 3x 3.5" hot-swap NVMe/SATA/SAS drive bays (3x 2.5" NVMe hybrid; 3x 3.5" NVMe hybrid)
System Cooling
Fans
  • 4x 14.9K RPM Heavy Duty 8cm Fan(s)
Power Supply
2600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 45 x 40 x 480 mm
AC Input
  • 2600W: 208-240Vac / 50-60Hz
  • 2600W: 220-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216.6A / Min: 0A (208Vac-240Vac)
  • Max: 216.6A
12V SB
  • Max: 4.5A / Min: 0A
Output Type
  • Backplanes (connector)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Resources
Component Options
AIOM MatrixCompatible GPU ListDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
ManualsQuick Reference Guide
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPT-B6

CSE-827BQ-000NP 		4

1 		Super X12DPT-B6 Motherboard

2U Chassis
Add-on Card / Module AOC-SMG3-2H8M2-BW-P 4 2x Hybrid M.2 riser carrier card for X12 BigTwin,RoHS
Backplane BPN-NVME4-827BHQ-S3 1 2U 12-Port 4-Node All-Hybrid BT BPN for 3xNVMe4/SAS4/SATA3 Medias per Node
Cable CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-SAST-1221-100 4 Slimline x8 (STR) to 2x Slimline x4 (STR),INT,21/16CM,1
Drive Tray(s) MCP-220-00133-0B-BULK 12 Black gen 8 hot-swap 3.5
Air Shroud MCP-310-21730-0B 4 BigTwin 2U4N plastic air shroud for X12DPT-B
Riser Card RSC-PR-6-X2 4 1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
Storage Controller Card SCC-B8SB80-B1 4 1U SCC w/ 8xSAS ports, SAS3808 FatTwin, BigTwin X12, HF,RoHS
SCC-F6N6T-B1 4 1U Storage Controller card for X12 2U4N BigTwin & FatTwin
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077PW 4 1U Passive CPU HS 92mm Width for X12 Whitley Platform
SNK-P0077VM 4 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base w/ Channel
*Power Supply PWS-2K60A-1R 2 1U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L)
*Power Distributor PDB-PT217-BGTWN 1 2U Big Twin Power Distributor Board Support Redundant 2KW
*Fan FAN-0191L4 4 80x80x38 mm, 14.9K RPM Cooling Fan in 2U4N 2.5 inches HDD BigTwin Series Servers
*Rail Set MCP-290-00172-0N 1 2U non-tip rail set, quick release, default for 2,3U 17.6"(W)
*Fan Holder MCP-320-21702-0N 2 Bigtwin fan holder (with 4.1mm rubber feet)(hold 2 80x38 fans)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3.5-to-2.5" HDD Conversion Tray MCP-220-00140-0B • - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
M.2 NVMe RAID Controller AOC-SMG3-2M2-B-P - 2x M.2 NVMe RAID Controller Card, x8 Gen3
SPI Capable TPM 1.2 AOM-TPM-9671H-S - SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor
SPI Capable TPM 2.0 AOM-TPM-9670H-S - SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor
SPI Capable TPM 2.0 with FIPS 140-2 AOM-TPM-9670H-FIPS - SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2
SuperCloud Composer License SFT-SDDC-SINGLE - SDDC Monitor License - Single License per Monitored host
System Management Suite SFT-DCMS-Single - Supermicro System Management Software Suite node
VROC Intel SSD Only AOC-VROCINTMOD - Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
VROC Premium AOC-VROCPREMOD • - Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD - Intel VROC Standard, RAID 0, 1, 10
