SuperServer SYS-820GP-TNAO (Complete System Only)

8U Dual Processor (3rd Gen Intel® Xeon®) GPU System with NVIDIA HGX A100 8-GPU with NVLink and NVSwitch that supports ORV2 (Open Rack V2) Only

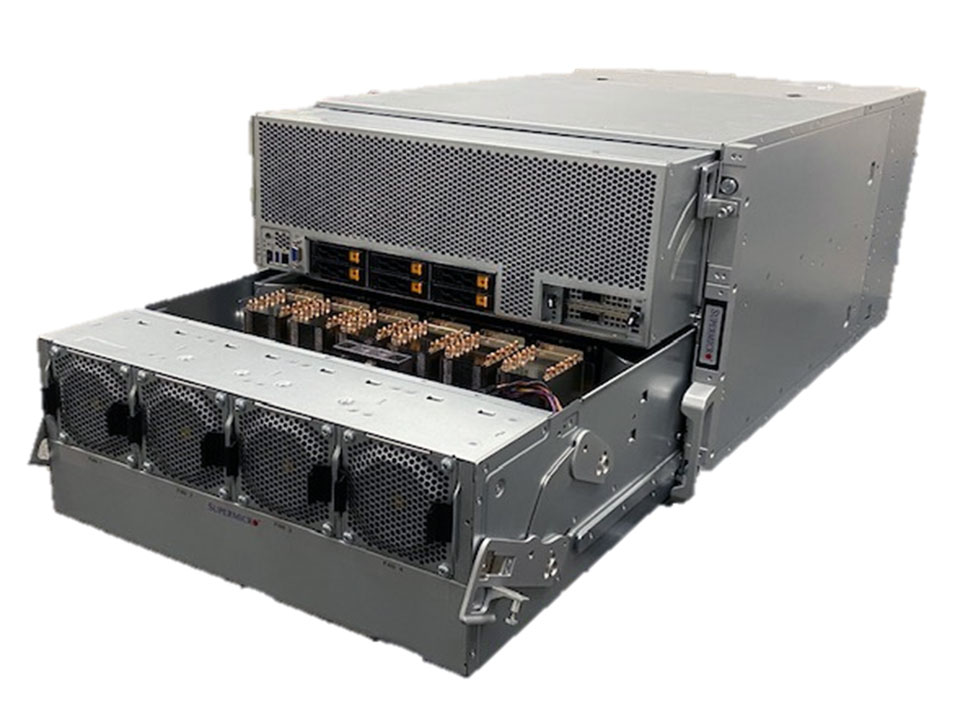

SYS-820GP-TNAO Main SYS-820GP-TNAO Angle
Integrated Board: X12DGO-6
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training

Key Features

  1. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  2. 10 PCIe Gen 4.0 X16 LP Slots
    AIOM/OCP 3.0 Support
  3. Flexible networking options
  4. 2 M.2 NVMe and SATA for boot drive only
    6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
  5. 4 heavy duty fans with optimal fan speed control
  6. 1x 6000W power supply for OCP
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-820GP-TNAO (Black Front & Silver Body)
Motherboard
Super X12DGO-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache
GPU
Supported GPU
  • HGX A100 8-GPU SXM4 Multi-GPU Board
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP802TS
Dimensions and Weight
Height
  • 13.8" (351mm)
Width
  • 17.6" (449mm)
Depth
  • 31.5" (800mm)
Package
  • 29.5" (H) x 27.5" (W) x 51.2" (D)
Weight
  • Net Weight: 166 lbs (75.3 kg)
  • Gross Weight: 225 lbs (102.1 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe)
  • 10 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
  • 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid; 4x 2.5" NVMe dedicated)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control
Power Supply
1x 6000W Power Supply, ORV2 Compatible Only
Dimension

(W x H x L)
  • 151 x 80 x 400 mm
DC Input
  • 6000W12V input
Output Type
  • Backplanes (connector)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
Compatible GPU ListDrive OptionsTested AOC ListTested M.2 ListTested Memory
Software
BIOS DownloadBMC DownloadDrivers & Utilities
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DGO-6

CSE-GP802TS 		1

1 		Super X12DGO-6 Motherboard

8U Chassis
Add-on Card / Module AOM-438G-AIOM-P 1 AIOM adapter card for CSE-438G,RoHS
AOM-438G-FAN-P 1 Fan adaptor for SC1018G,RoHS
AOM-DGO-IO-P 1 I/O riser card for 4U 8 SXM4 GPU system 420GP-TEVRT,RoHS
AOM-SXM4-IO-P 1 PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS
Backplane BPN-GPU-438G 1 Midplane for 4U AMD/Intel Delta GPU system,RoHS
BPN-NVME4-F418-B6S6 1 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS
BPN-NVME4-HS119N-S4R 1 1U 4-Slot SFF Backplane Supports 4 x SAS3/SATA3/NVMe4 Storage Devices,HF,RoHS
Cable CBL-0223L 4 BLADE PWS POWER CORD C-19 TO C-20, PBF
CBL-GNZ2-12105F-85 1 GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105.
CBL-GNZ2-1281F-85 1 GENZ 2C x16 (STR),Slimline x8 (STR) to 2x 2x Slimline x4
CBL-PWEX-1114-30 1 Microfit,PH3.0,(2x4F to 2x4F),30CM,9A/pin,16AWG,RoHS
CBL-PWEX-1117-40 2 MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin,
CBL-PWEX-1133-35 1 (MicroHi to MicroFit) 2x2,PH3.0, 35cm,10A/pin,16AWG,RoHS
CBL-SAST-1238FLP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,38C
CBL-SAST-1238LP-85 2 SlimlineLP x8 (STR) to SlimlineLP X8 (STR),38CM,85Ohm,R
CBL-SAST-1242-100 2 Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,43CM,100 O
CBL-SAST-1258FLP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,58C
Fan FAN-0196L4-1 4 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fan Board
Drive Tray(s) MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Power Supply PWS-6K01D-O2 1 6000W (54V/12V/12Vsb) power supply with 12Vdc input, for OCP
Riser Card RSC-G-66G4 1 1U LHS GPU Riser card with two PCIe 4.0 x16 slots,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
