SuperServer SYS-E302-12E (Complete System Only)

SYS-E302-12E Main SYS-E302-12E Angle SYS-E302-12E Front SYS-E302-12E Rear
Integrated Board: A3SEV-4C-LN4
Learn more

Key Applications

  • Process Automation
  • Digital Singnage&Data Visualization
  • Retail, Banking&Smart City

Key Features

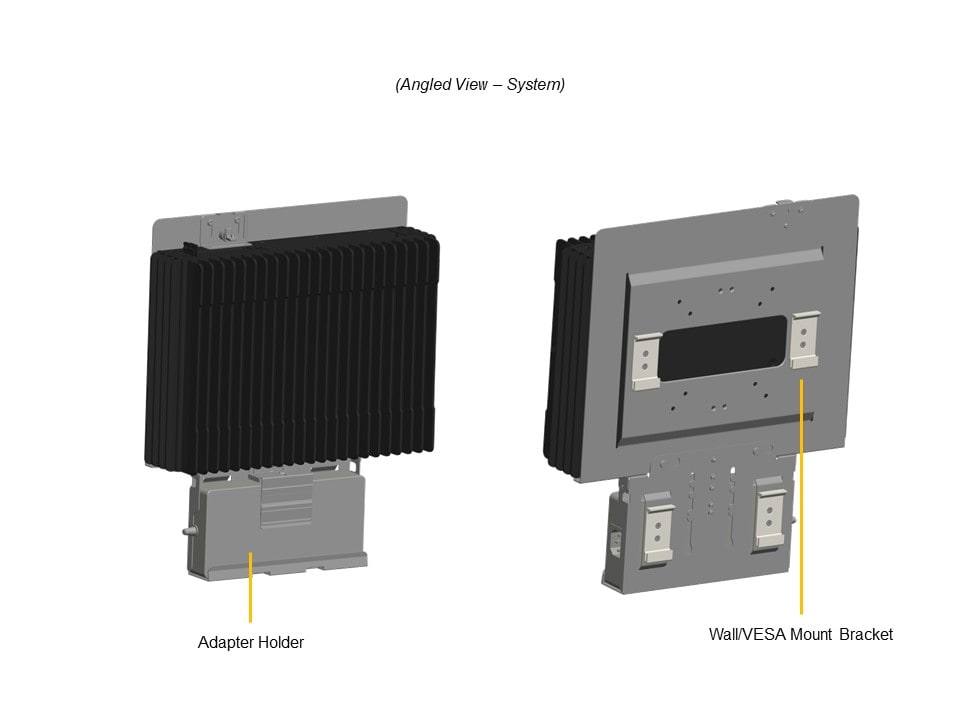

  1. Wall Mount Bracket
  2. Intel® Elkhart Lake up to 4C/12W
  3. 1x M.2 B-Key;
    1x M.2 E-Key

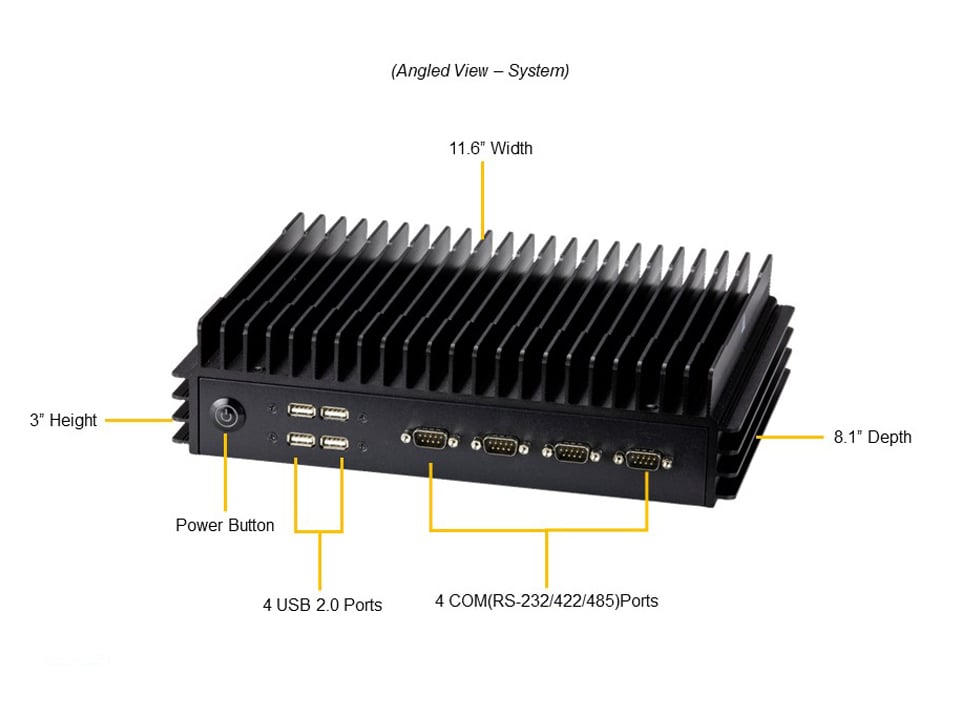

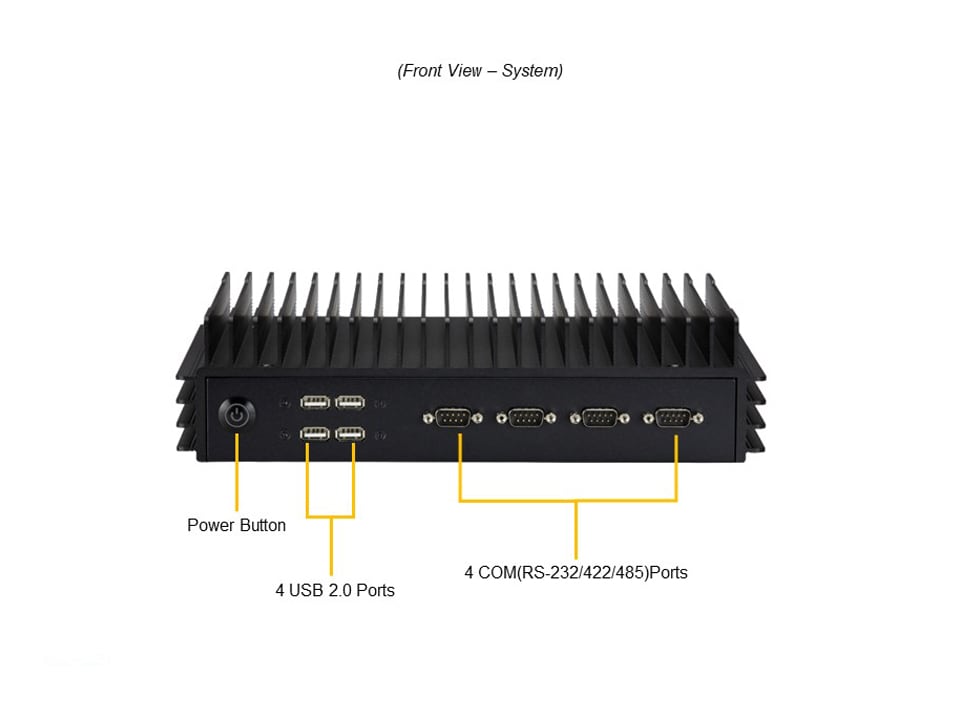

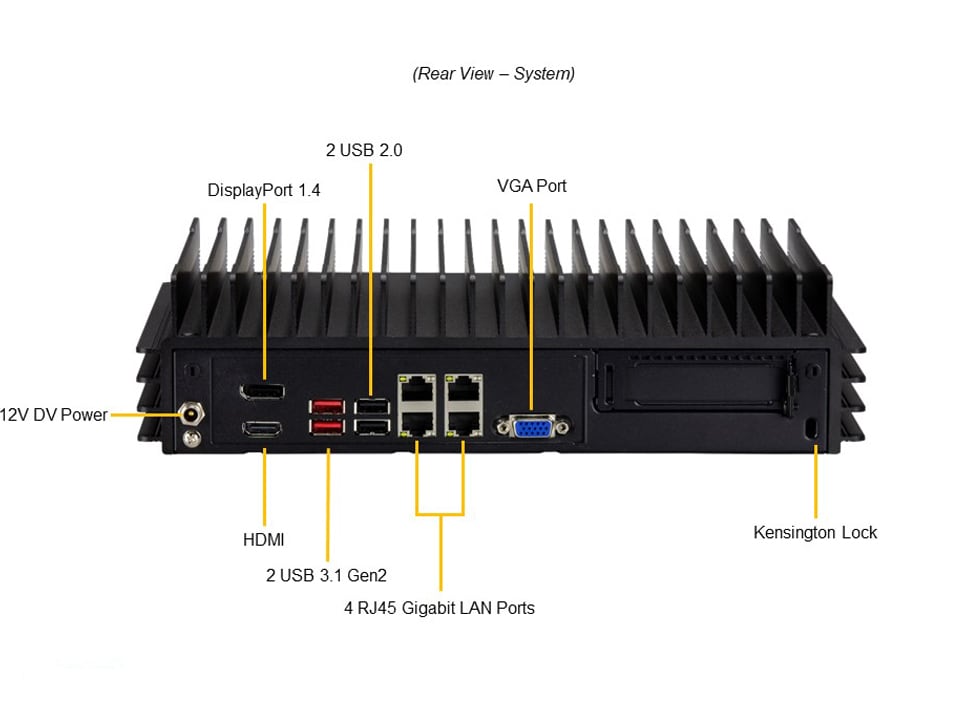

  4. Rich I/O Ports: 2x USB3.1, 6x USB2.0, 4x COM, 4x LAN
  5. 1 xFixed 2.5" drive bay with bracket (Wide Temp required)
  6. Fanless Cooling
    Wide Temperature  -20°C to 60°C (-4°F to 140°F)
  7. Lockable 12V DC 150W/180W Power Adapter
  8. Tri Independent Displays: 1x HDMI 2.0b (4K60Hz), 1x DP 1.4, 1x VGA
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-E302-12E (Black)
Motherboard
Super A3SEV-4C-LN4
Processor
CPU
  • Single Single Socket FCBGA-1493 supported
  • Intel® Atom® Processor x6425E
Core Count
  • Up to 4C/8T; Up to 1.5MB Cache per CPU
Note
  • Supports up to 12W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 2 DIMM slots
  • Up to 32GB: SO-DIMM
  • Memory Type: 3200MHz DDR4 SO-DIMM
On-Board Devices
Chipset
  • Intel® x6425E
Network Connectivity
  • 4x 1GbE BaseT
Input / Output
LAN
  • 4 RJ45 GbE LAN ports
USB
  • 6 USB 2.0 port(s) (4 front; 2 rear)
  • 2 USB 3.1 Gen2 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 4 COM Port(s) (4 front)
System BIOS
BIOS Type
  • AMIUEFI
BIOS Features
  • SMBIOS 3.3 or later
  • UEFI 2.7
Management
Power Configurations
  • Boot eDP/VGA Select
  • AC Loss Policy Depend On
  • Power Button Function
  • Watch Dog Function
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Chassis
Form Factor
  • Mini ITX/FlexATX
Model
  • CSE-E302iL2
Dimensions and Weight
Height
  • 3" (76mm)
Width
  • 11.6" (295mm)
Depth
  • 8.1" (206mm)
Package
  • 12" (H) x 16.45" (W) x 7.6" (D)
Weight
  • Net Weight: 8 lbs (3.63 kg)
  • Gross Weight: 12 lbs (5.44 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD Status
  • Power status
Drive Bays / Storage
Drive Bays
  • 1x 2.5" SATA drive bays
M.2
  • 1x B-Key 2280/3042 (PCIe 3.0 x2 / SATA / USB3.1)
System Cooling
Fans
  • N/A
Power Supply
150W Level power supply
AC Input
  • 150W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature:
       -20°C ~ 60°C (-4°F ~ 140°F)
  • Non-operating Temperature:
       -30°C to 70°C (-22°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
Drive OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
ManualsQuick Reference Guide
Software
Drivers & Utilities
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-A3SEV-4C-LN4

CSE-E302iL2 		1

1 		Super A3SEV-4C-LN4 Motherboard

Mini ITX/FlexATX Chassis
Manual MNL-2471-QRG 1 E302-12E Quick Reference Guide
Power Supply MCP-250-10133-0N OR 1 180W DC power adapter with US power cord 18AWG 6ft
MCP-250-10128-0N 150W Lockable Power Adapter with US power cord
*Cable MCP-180-30202-0N 1 Y split,DC lockable input ,DC5.5 to 2x4P, 40cm, 22AWG,RoHS
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
