SuperServer SYS-621BT-DNC8R (Complete System Only)

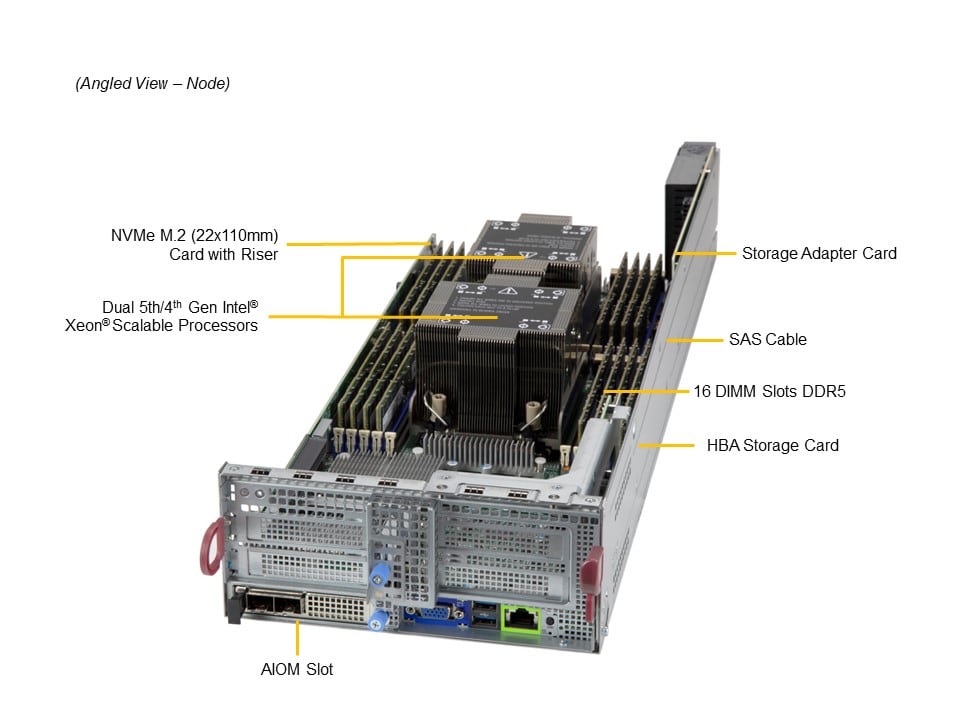

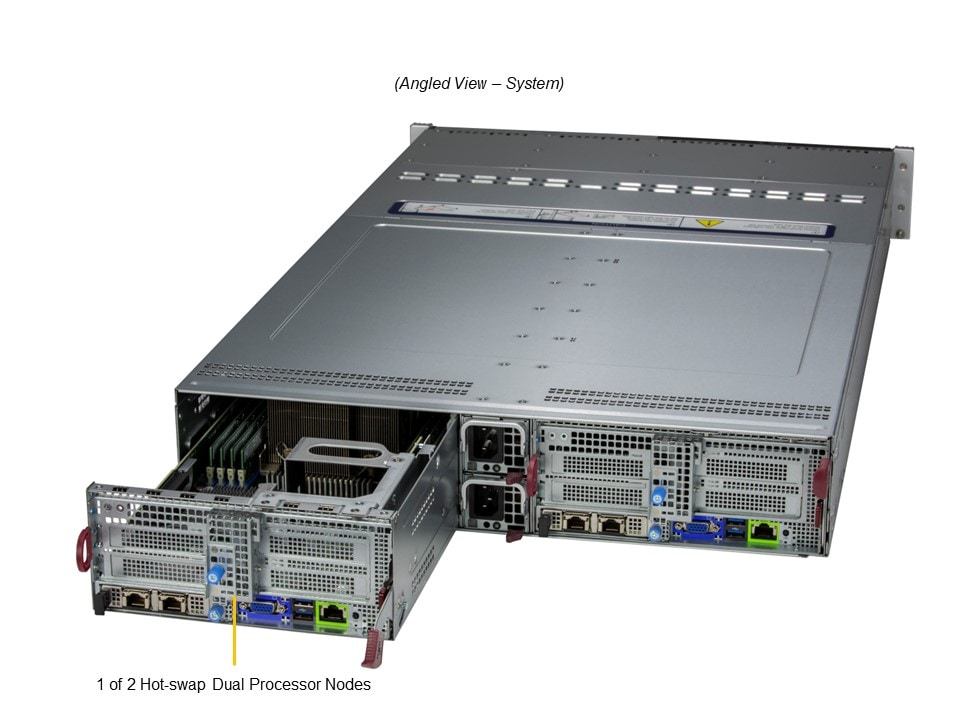

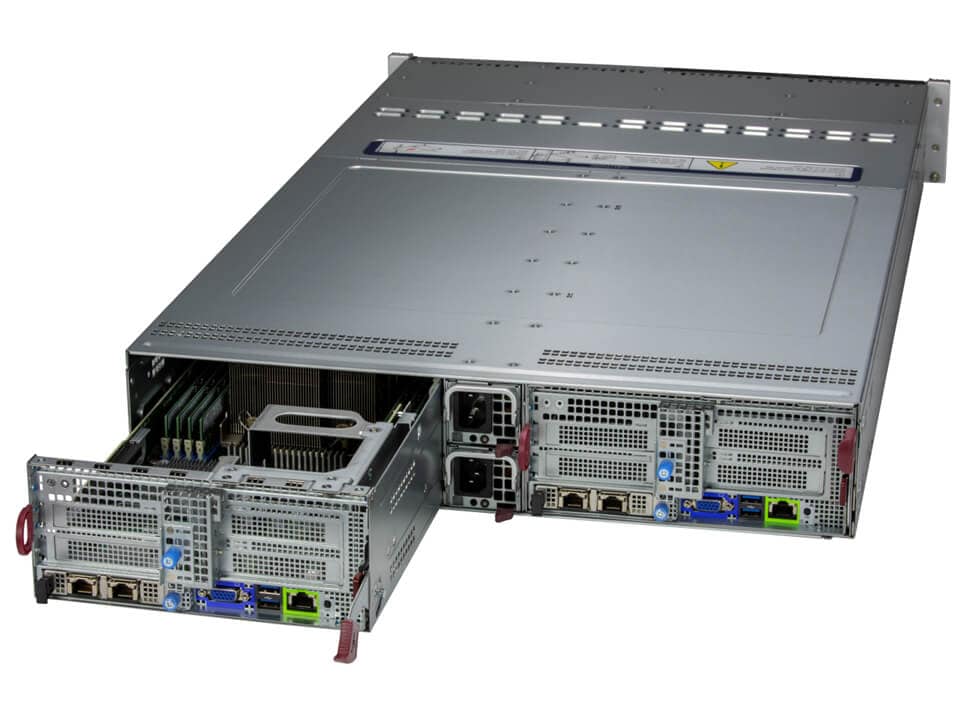

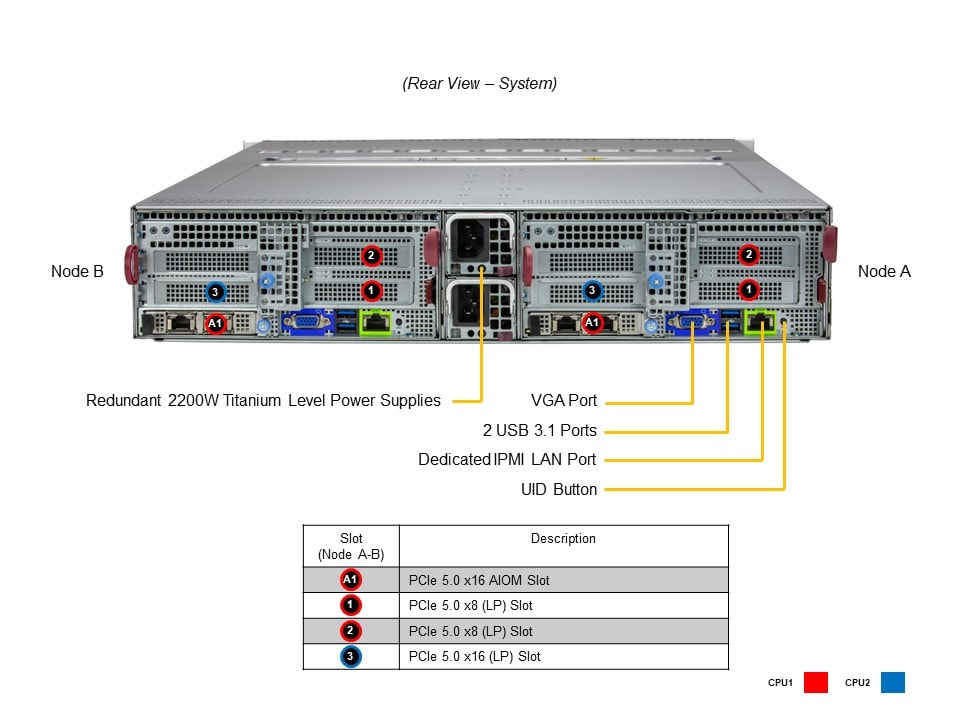

SYS-621BT-DNC8R Main SYS-621BT-DNC8R Angle SYS-621BT-DNC8R Node SYS-621BT-DNC8R Front SYS-621BT-DNC8R Rear
Integrated Board: X13DET-B
Learn more

Key Applications

  • Hyperconverged Infrastructure
  • Scale-Out Object Storage
  • Back-up & Recovery

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
  2. Intel® C741
  3. 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  4. 1 PCIe 5.0 x16 (LP) slot;
    2 PCIe 5.0 x8 (LP) slot;
    Tool-less support
    Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
    Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1
  5. Network connectivity via AIOM (OCP 3.0 compliant)
  6. 6 Hot-Swap 3.5” drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
    Built-in SAS3 Support via Broadcom 3808; IT Mode
  7. 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
    Liquid Cooling Support
  8. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-621BT-DNC8R
Motherboard
Super X13DET-B
Processor (per Node)
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU (per Node)
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU(s)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices (per Node)
SAS
  • SAS3 (12Gbps) via Broadcom® 3808 (IT mode)
Chipset
  • Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.1 port(s) (2 rear)
Video
  • 1 VGA port(s)
Others
  • 2x M.2 for boot drive or caching
    M.2 form factor: NVMe double-sided 22x110mm
    Note: Enterprise-grade M.2 only for caching application
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Power Configurations
  • ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BD2-R2K22P
Dimensions and Weight
Height
  • 3.47" (88mm)
Width
  • 17.68" (449mm)
Depth
  • 30.5" (774mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Net Weight: 55.1 lbs (25 kg)
  • Gross Weight: 80.7 lbs (36.6 kg)
Available Color
  • Black front & silver body

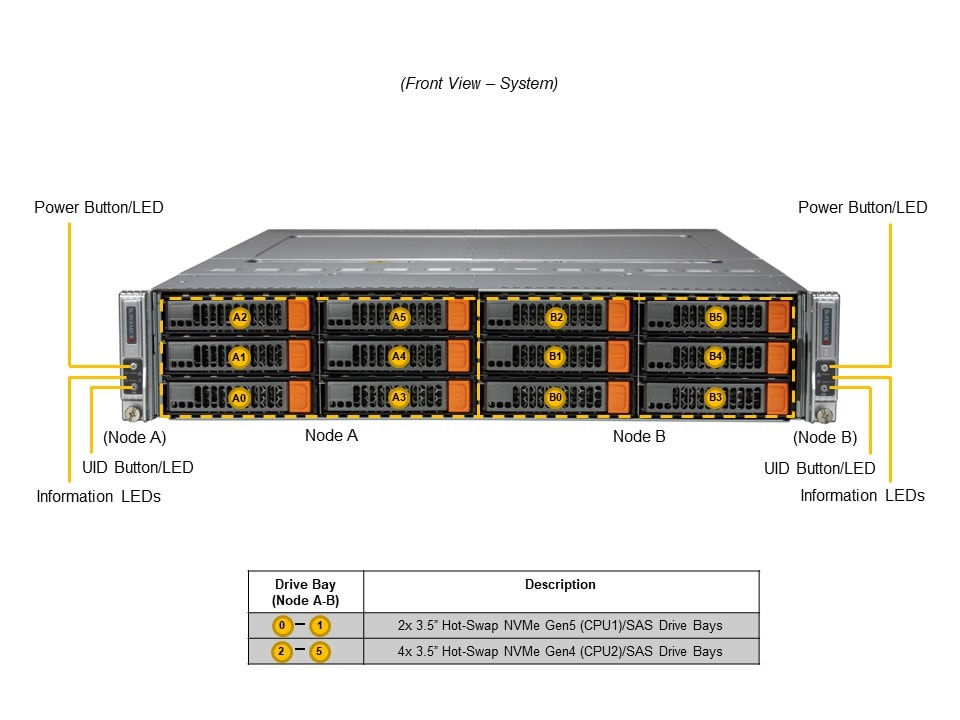

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 3.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 4x PCI-E 4.0 NVMe/SAS)
  • View Drive Options
M.2
System Cooling
Fans
  • 4x 14.9K RPM Heavy Duty 8cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 45 x 40 x 480 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
  • 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
  • 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
  • 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
  • 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
  • Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
  • Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
  • Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (connector)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)
Environmental / Recycling
Recycle


Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DET-B

CSE-827BD2-R2K22P
2

1
Super X13DET-B Motherboard

2U Chassis
Backplane BPN-NVME5-827BHQ-S3 1 X13 BigTwin 3.5" 2U4N Hybrid Backplane
Cable CBL-NSH5-1326 2 NearStack HD (x8 to x8), 26cm,85Ohm,G5,34AWG,RoHS
CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-SAST-1221-100 2 Slimline x8 (STR) to 2x Slimline x4 (STR),INT,21/16CM,1
Drive Tray(s) MCP-220-00133-0B-BULK 12 Black gen 8 hot-swap 3.5
Air Shroud MCP-310-21736-0B 2 SC217BD2/827BD2 BigTwin plastic air shroud for X13DET-B
Riser Card RSC-P2R-88G5 2 2U RHS TwinPro Riser card with two PCIe 5.0 X8 slots,HF
Storage Controller Card SCC-B8SB80-B1 2 1U SCC w/ 8xSAS ports, SAS3808 FatTwin, BigTwin X12, HF,RoHS
SCC-P2HM2G4-B1 2 support 2x Gen4 Hybrid M.2 and 1x PCIEx16 Gen5 Slot
SCC-P6N6SGH-B2 2 2U hybrid pass-thru SCC card designed for X13 BigTwin,HF
Software SFT-OOB-LIC 2 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
SNK-P0088PW 2 2U Proprietary Passive Wide CPU HS for X13 BigTwin
*Power Supply PWS-2K22A-1R 2 1U 1200W/2200W Redundant Titanium BigTwin w/PMBus power supply, W45xH40xL480 mm, C14 inlet
*Power Distributor PDB-PT217-BGTNH 1 2U Big Twin PDB input redundancy powers pass through 12V
*Fan FAN-0191L4 4 80x80x38 mm, 14.9K RPM Cooling Fan in 2U4N 2.5 inches HDD BigTwin Series Servers
*Rail Set MCP-290-00172-0N 1 2U non-tip rail set, quick release, default for 2,3U 17.6
*Fan Holder MCP-320-21702-0N 2 Bigtwin fan holder (with 4.1mm rubber feet)(hold 2 80x38 fans)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3.5-to-2.5" HDD Conversion Tray MCP-220-00140-0B - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed)
Cold Plate Module SNK-P3042 1 2x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
SNK-P3050-ABT 1 2x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
Coolant Distribution Manifolds SRK-00AS-CLIT-MF84SV-02 1 CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
SRK-00AS-CLIT-MF42SV-02 1 CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
LCS-SCDM-076V42001-ABT 1 Supermicro Coolant Manifolds (Qty per Rack)
Coolant Distribution Unit LCS-SCDU-080L4001-ABT 1 Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
SRK-00AS-CLIT-CH80V2-01 1 CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
M.2 NVMe RAID Controller SCC-A2NM2241G3-B1 1 2x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x80mm M.2 (Qty per Node)
SPI Capable TPM Options AOM-TPM-9671H-S 1 SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9670H-S 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9670H-FIPS 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
SuperCloud Composer License SFT-SDDC-SINGLE - SDDC Monitor License - Single License per Monitored host
System Management Suite SFT-DCMS-Single - Supermicro System Management Software Suite node
VROC Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
