2x 2200W

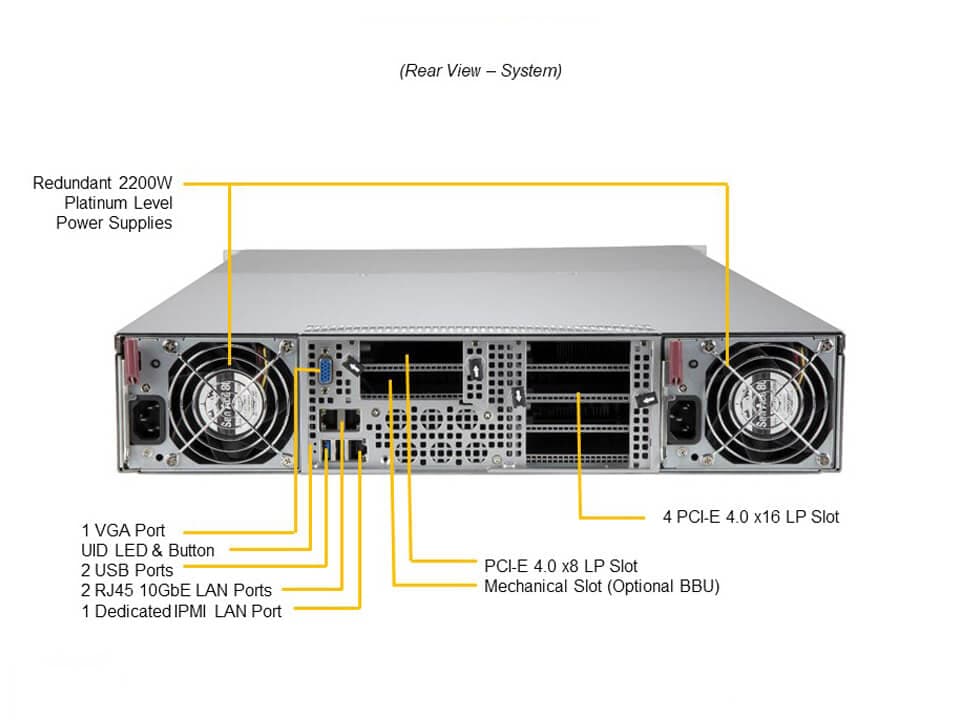

2x 2200W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL) | 106.5 x 82.4 x 203.5 mm |
AC Input | 1200W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 2000W: 180-220Vac (UL/CUL only) 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 200-230Vac / 50-60Hz 1980W: 220-230Vac 2200W: 220-240Vac (UL/cUL only) 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) 2090W: 230-240Vac 2090W: 230-240Vdc / 50-60Hz (for CQC only) 2090W: 230-240Vac / 50-60Hz (for TUV/CB) |
+12V | Max: 41.67A (100Vac-240Vac) Max: 10A / Min: 9.5A (200Vac-220Vac) (CQC only) Max: 10A / Min: 9.8A (220Vac-230Vac) (CQC only) Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only) Max: 10A / Min: 9.8A (230Vac-240Vac) (CQC only) |
12V SB | Max: 3A |
Output Type | Backplanes (connector) |
