SuperServer SYS-211GT-HNC8R (Complete System Only)

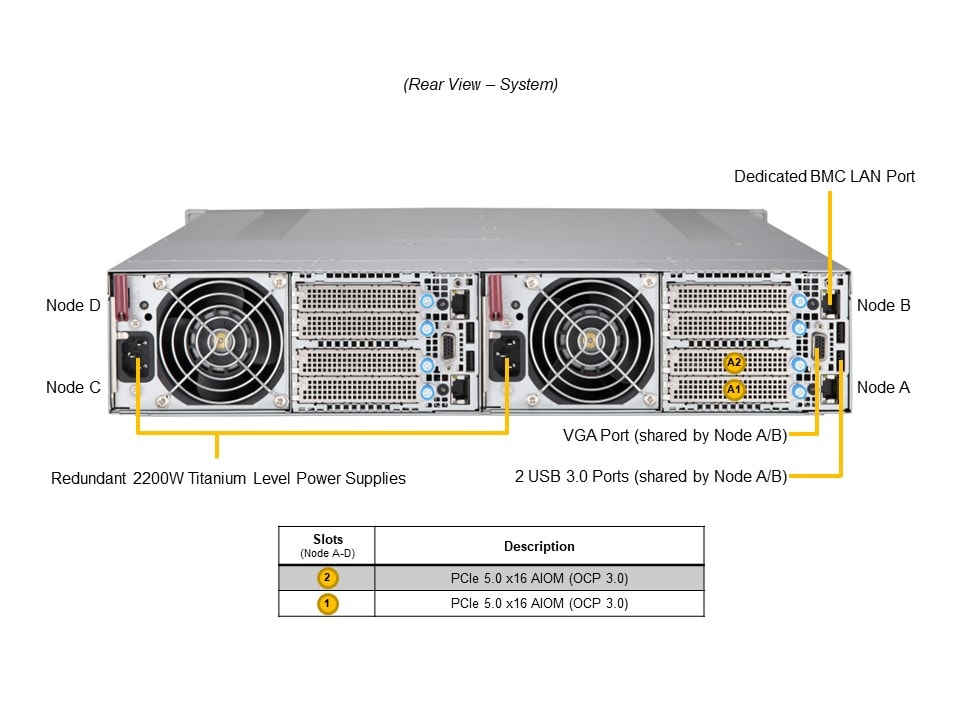

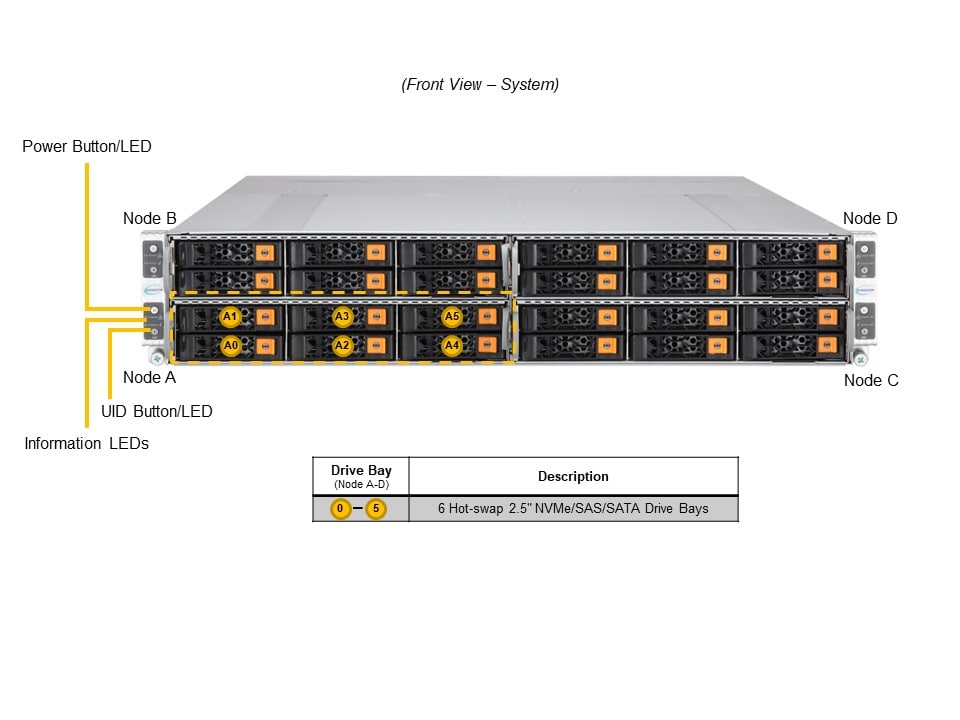

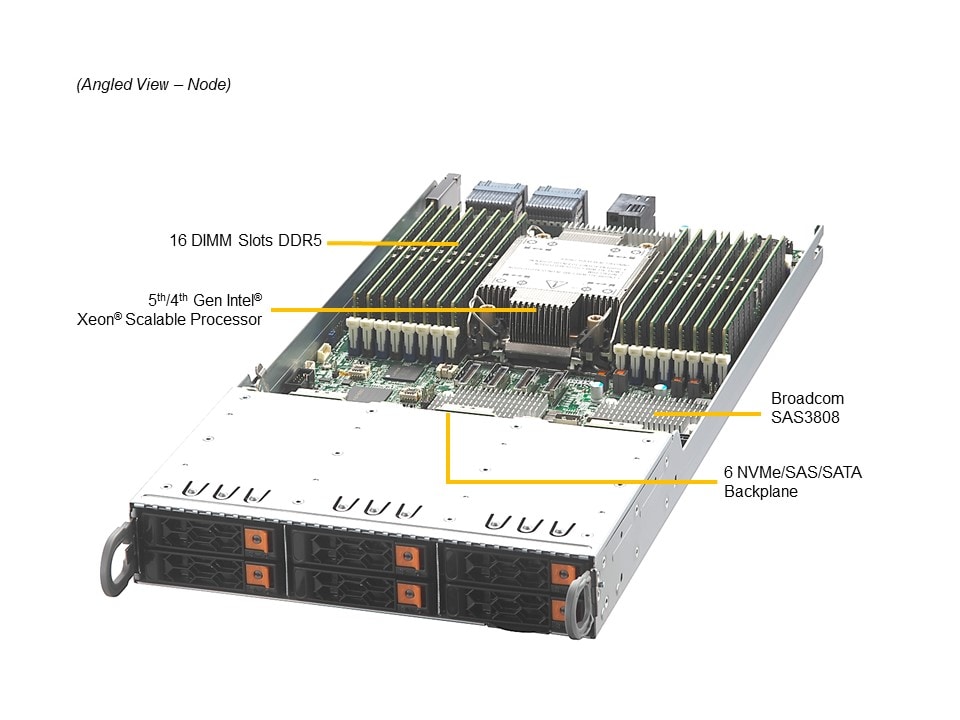

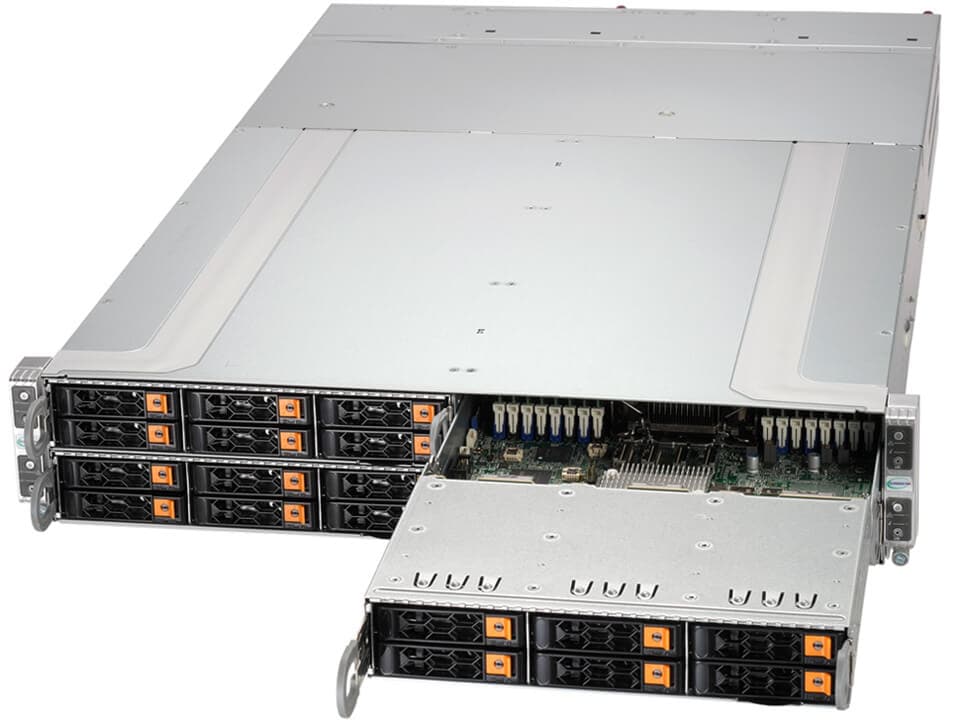

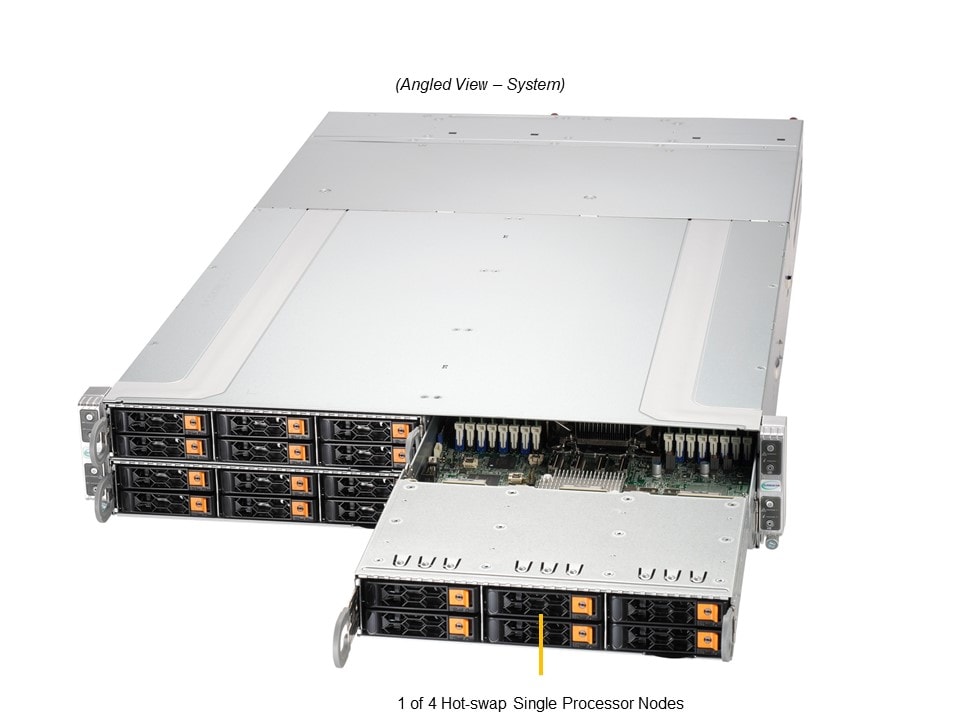

SYS-211GT-HNC8R Main SYS-211GT-HNC8R Angle SYS-211GT-HNC8R Node SYS-211GT-HNC8R Front SYS-211GT-HNC8R Rear
Integrated Board: X13SET-GC
Learn more

Key Applications

  • HPC
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • High-availability Cache Cluster
  • Telco Edge Cloud
  • EDA (Electric Design Automation)
  • Mission Critical Web Applications

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 300W TDP
  2. Intel® C741
  3. 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  4. 2 AIOM
  5. 6x NVMe/SAS/SATA drive bays
  6. 2x cooling fans per 2U enclosure, 16K RPM Heavy Duty; Shared Cooling Design
  7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  8. Built-in SAS3 Support via Broadcom 3808; IT Mode
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-211GT-HNC8R
Motherboard
Super X13SET-GC
Processor (per Node)
CPU
Core Count
  • Up to 64C/128T; Up to 320MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 350W only supported under specific conditions. Contact a Supermicro representative for details.​
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots/2 Channels
  • Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1 V
On-Board Devices (per Node)
SAS
  • SAS3 (12Gbps) via Broadcom® 3808 (IT mode)
Chipset
  • Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BC-R2K21BP
Dimensions and Weight
Height
  • 3.46" (88mm)
Width
  • 17.67" (449mm)
Depth
  • 28" (711.2mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Net Weight: 68 lbs (30.8 kg)
  • Gross Weight: 88 lbs (39.9 kg)
Available Color
  • Black front & silver body
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe dedicated)
M.2
System Cooling
Fans
  • 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
2200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 106.5 x 84 x 245.3 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
  • 2090W: 230-240Vdc / 50-60Hz (for CQC only)
  • 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
  • Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
  • Max: 174.17A (230Vac-240Vac)
12V SB
  • Max: 2A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)


Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SET-GC

CSE-GT214BC-R2K21BP
4

1
Super X13SET-GC Motherboard

2U Chassis
Backplane BPN-NVME5-F418-B6S6 4 1U 6-Slot X13 FatTwin 2.5
Cable CBL-MCIO-1218M5-1 12 MCIO x8 (STR to STR),18CM,85OHM,RoHS
CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-PWEX-1131-20 4 MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
CBL-SAST-1213QL4-100 8 SlimSASLP x4 to SlimSAS x4,13cm,100OHM,RoHS
Air Shroud MCP-310-21405-0B 4 GT214 GrandTwin Intel 2nd gen for X12 & X13 plastic air shroud
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0087V 4 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-2K21A-BR 2 2200W MicroBlade redundant Power Supply, Titanium Level
*Power Distributor BPN-PDB-GT214 1 Power Distribution for GrandTwin
*Rail Set MCP-290-00172-0N 1 2U non-tip rail set, quick release, default for 2,3U 17.6
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
SPI Capable TPM 2.0 AOM-TPM-9670V-S-P - SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor
VROC Premium AOC-VROCPREMOD - Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD - Intel VROC Standard, RAID 0, 1, 10
