Supermicro AS -2127H7-N | 2U Hyper Server

2U dual socket Hyper with up to 24 hot-swap drive bays and 4 PCIe 6.0 x16 slots + 1 PCIe 6.0 x16 AIOM slot

Integrated Board: H15DPH
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server
  • High Performance Computing (HPC)

Key Features

  1. Dual Socket AMD EPYC™ 9006 SP7 Series Processors up to 512 Cores
  2. Supports up to 4 PCIe 6.0 x16 slots
  3. Supports up to 32 DDR5 RDIMMs/MRDIMMs
  4. Flexible networking with 1 AIOM slot (OCP 3.0 SFF/TSFF compliant)
  5. Modular front drive bay design supporting up to 16 U.2/E3.S or 12 E1.S hot-swappable NVMe drives
    Front PCIe slot available on select configurations
  6. Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
...
...
AS-2127H7-N
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
AS -2127H7-N
Motherboard
Super H15DPH
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9006 SP7 Series Processors
Core Count
  • Up to 512C/1024T
Note
  • Supports up to 600W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 8TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM
  • Max Memory (1DPC): Up to 8TB 12800MT/s ECC DDR5 MRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • USB Keyboard support
  • ACPI 6.6
  • UEFI 2.11
Management
Software
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Fan
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS202-R000NFP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.26" (438.4 mm)
Depth
  • 32.64" (829 mm)
Package
  • 10.4" (H) x 26.5" (W) x 43.6" (D)
Weight
  • Gross Weight: 50.4 lbs (22.9 kg)
  • Net Weight: 25.3 lbs (11.5 kg)
Available Color
  • Black front & silver body
Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A*
    • 4 PCIe 6.0 x16 FHFL double-width slots
    • 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B*
    • 3 PCIe 6.0 x16 FHFL double-width slots
    • 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option C*
    • 2 PCIe 6.0 x16 FHFL double-width slots
    • 2 PCIe 6.0 x8 FHFL slots
    • 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)

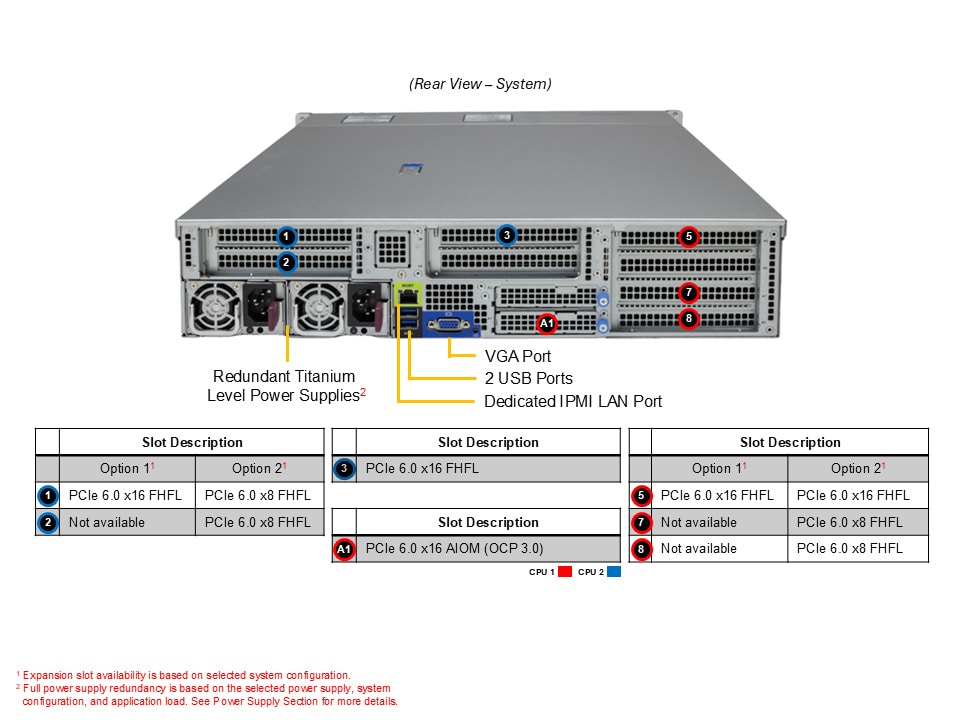

  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
CXL Support
  • Up to 4 CXL 3.1 x16 devices
Drive Bays / Storage
Drive Bays Configuration
  • Option A: Total 24 bays
    • 24 front hot-swap 2.5" SAS*/SATA* drive bays
  • Option B: Total 16 bays
    • 16 front hot-swap 2.5" PCIe 6.0 NVMe* drive bays
  • Option C: Total 16 bays
    • 16 front hot-swap E3.S 1T PCIe 6.0 NVMe* drive bays
  • Option D: Total 12 bays
    • 12 front hot-swap E1.S PCIe 6.0 NVMe* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; Optional, hot-swappable with RAID)
System Cooling
Fans
  • 6 counter-rotating 60x60x56mm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB Max: 3.5A / Min: 0A
Output Type Backplanes (gold finger)
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2000W: -48--60Vdc / 50-60Hz
+12V Max: 166.6A / Min: 0A
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
