Best Performance, Cost and Energy Efficiency for Data Center Environments

SYS-1029P Series
SYS-6019P Series

Data Center Optimized Solutions

The new generation X11 Supermicro Data Center Optimized SuperServer® product family is designed to deliver the best performance-per-watt and per-dollar to the modern data center. Improved thermal architecture that utilizes power efficient components, offset processor placement to help eliminate CPU preheating, and highest-efficiency power supplies to allow higher operating temperatures, enable this product line to perfectly align with complex requirements and complement energy efficiency data center design in order to achieve lower Total Cost of Ownership (TCO).

Expert Supermicro server design, high quality components and support for the latest 2nd generation Intel® Xeon® Scalable processors ensure the highest performing SuperServers for your data center deployments. Each server supports up to: 2TB DDR4-2933MHz ECC memory in 8 DIMM slots,1 standard PCI-E 3.0 slot, 8 SATA 3.0 (6Gbps) drive bays with Intel® C620 controller, and up to 2x 1GbE.

Supports up to:

  • 24 cores per socket
  • 2TB DDR4-2933MHz ECC memory
  • 140W per socket
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • Redundant 800W high efficiency power supplies
New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

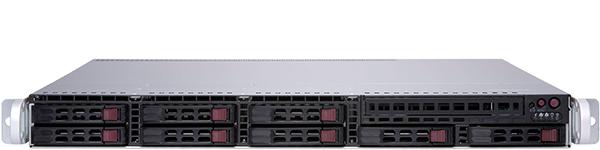

SYS-1029P-MT
SYS-1029P-MT
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 8 Hot-swap 2.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 600W Platinum Level Power Supply
SYS-1029P-MTR
SYS-1029P-MTR
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 8 Hot-swap 2.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 800W Redundant Platinum Level Power Supplies

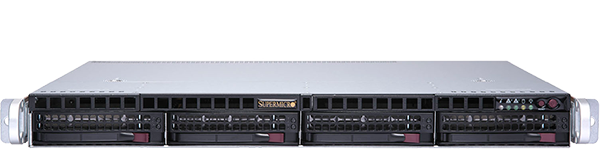

SYS-6019P-MT
SYS-6019P-MT
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 500W Platinum Level Power Supply
SYS-6019P-MTR
SYS-6019P-MTR
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 800W Redundant Platinum Level Power Supplies
