Industry Leading 4U Multi-Node System for 4 or 8 Node High Performance and Throughput

4U 4-Node Rear I/O
4U 8-Node Rear I/O

FatTwin™ Server Solutions

The new generation X11 Supermicro FatTwin™ is a high-density 8/4 hot-plug multi-node SuperServer® system available with a variety of memory capacities, HDD technologies, M.2 SSD NVMe, PCIe alternatives, and networking capabilities. The FatTwin™ supports up to: 3TB DDR4-2933MHz memory in 12 DIMM slots, as well as support for Intel® Optane™ DC Persistent Memory; 1 PCI-E 3.0 x16 and 1 SIOM flexible nework card 8 ports of Broadcom SAS 3.0 (12Gbps) HBA or HW RAID, 10 ports of SATA 3.0 (6Gbps) with Intel® C621 controller, redundant Titanium Level (96%) Digital power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and dual Intel® Xeon™ Scalable processor families up to 26 cores and 165W TDP.

The Supermicro FatTwin™ represents a revolution in Green Computing and is highly efficient by design; this system supports customers' critical applications while reducing Data Center TCO in order to help preserve the environment, and extends the compute and storage capabilities of Supermicro's existing Twin SuperServer® systems to achieve increased performance and power efficiency. Due to its shared components, the FatTwin™ improves cost-effectiveness and reliability, while its modular architecture makes it flexible to configure and easy to maintain.

Versatile configurations allow the FatTwin™ to be optimized for many different environments including Enterprise, Data Center, Cloud Computing, HPC, Financial, Science and Engineering, File and Storage Servers.

  • NEW! Support for Dual, 2nd generation Intel® Xeon® Scalable processors up to 165W per socket
  • NEW! Support for Intel® Optane™ DC Persistent Memory
  • 12 DIMM slots; Up to 1.5TB ECC RDIMM
  • Low-Profile PCI-E 3.0 x16 slot
  • SAS3/SATA3/NVMe support
  • Redundant 2200W/1200W Titanium (96%) Power Supplies
New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
SYS-F619P2-FT
SYS-F619P2-FT
Front I/O, 8-Node, • Each: 2/4 Fixed 2.5" SATA3/ NVMe
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 or 4 Fixed 2.5" SATA3/NVMe drive bays
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 2 M.2 support
  • 8x 8cm 13.5k RPM rear fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

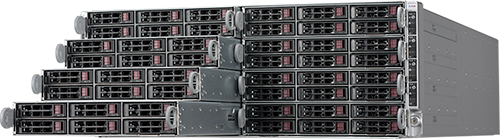

SYS-F619P2-RT
SYS-F619P2-RT

 / SYS-F619P2-RTN / SYS-F619P2-RC0 / SYS-F619P2-RC1

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5" SAS3/SATA3/NVMe opt.
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F619P2-RT – 6x 2.5" SATA3
    • SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
    • SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P3-FT
SYS-F619P3-FT
Front I/O, 8-Node, • Each: 2 Fixed 3.5" SATA3
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Fixed 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 2 M.2 support
  • 8x 8cm 13.5k RPM rear fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F629P3-RTB
SYS-F629P3-RTB

 / SYS-F629P3-RTBN / SYS-F629P3-RC0B / SYS-F629P3-RC1B

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5" SAS3/SATA3/NVMe opt.
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F629P3-RTB – 8x 3.5" SATA3
    • SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
    • SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.
