Application Optimized and I/O Maximized for Space-constrained Applications

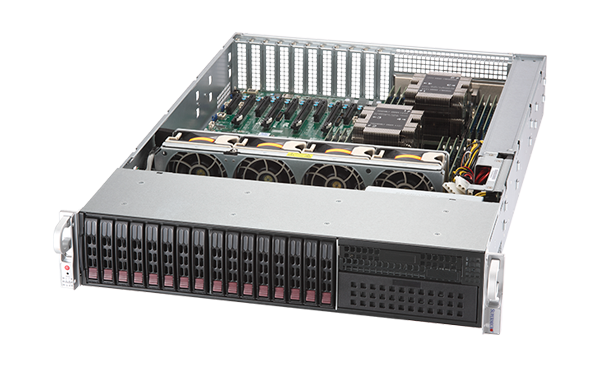

2U Server with 11 PCI-E

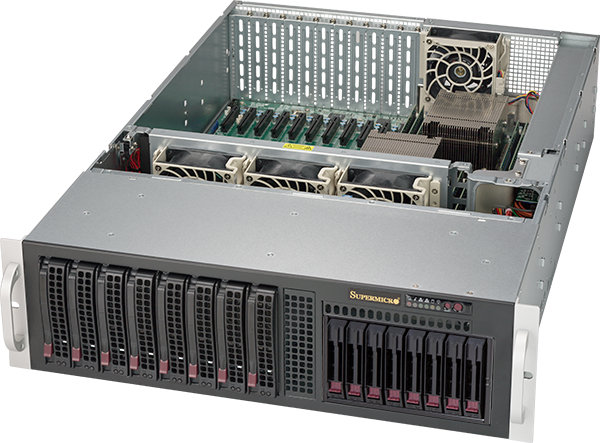

3U Server with 11 PCI-E

Max IO Servers

Supermicro Max IO solutions are resource optimized, cost-effective and ideal for space-constrained applications. Supermicro's highly dense yet compact server designs provide excellent compute, networking, storage and I/O expansion. These servers utilize Supermicro optimized thermal designs to save energy, operate at lower decibels and minimize system power consumption. Several models provide redundant power and cooling options and run at an extended temperature range. Supermicro's high quality assures reliable, long life and uninterrupted operation.

Supermicro Max IO solutions support a range of Intel® technologies for a diverse portfolio of use cases. Support for high-performance enterprise level Socket P processors enables customers to meet the requirements of applications including Industrial Automation (IPC), Medical Imaging, Intelligent Transport, Digital Signage, Digital Security and Surveillance, Network, Storage appliances, Edge Computing and other variety of other applications.

New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
SYS-1019S-M2
SYS-1019S-M2
X11SSZ-QF + • SC514-704C-1P
  • Embedded, Industrial automation & control, military compact server, VOIP & network appliance, mdeical applications
  • Single Socket H4 (LGA 1151) supports: Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® Q170 express chipset
  • 2x 2.5" Fixed bays with bracket
  • 1 PCI-E 3.0 x16 (in x16) slot
  • Up to 64GB DDR4 2400MHz Non-ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT and i219LM)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 HDMI, 1 DP, 1 DVI-I, 1 VGA, 1 BMC integrated Matrox G200
  • 2 COM, 2 USB 3.0 (rear), 3 USB 2.0 (2 rear, 1 Type A)
  • 1 SuperDOM, ALC 888S HD Audio
  • 400W Platinum Level Redundant Power Supplies w/ BBP® option
SYS-2029P-TXRT
SYS-2029P-TXRT
11 PCI-E Slots • 16 Hot-swap 2.5", 1 Peripheral 5.25"
  • 2U Max I/O Server - Expansion / Performance / Flexibility
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 2.5" drive bays and 1 peripheral 5.25" bay
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 2 GbE, 1 Video, 2 COM, 2 USB 3.0 (rear), 4 USB 2.0 (rear), 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm 7K RPM middle fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5019S-M2
SYS-5019S-M2
X11SSZ-F + • SC813MFTQC-350CB
  • Embedded, security & surveillance, appliance server, secure storage
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 express chipset
  • 4x 3.5" Hot-swap SATA3 bays, Intel RST
  • 1 PCI-E 3.0 x16 (FH, FL) slot
  • Up to 64GB DDR4 2400MHz ECC/non-ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 2 COM, 4 USB 3.0 (2 rear), 3 USB 2.0 (2 rear, 1 Type A)
  • 1 SuperDOM (shared) Audio header
  • 350W Platinum Level Power Supply
SYS-5029S-TN2
SYS-5029S-TN2
X11SSV-Q + • SC721TQ-250B
  • Embedded, database processing & storage, high performance NAS, security appliance, video surveillance, small and medium business
  • Single Socket H4 (LGA 1151) supports: Intel® 7th/6th Gen Core i3/i5/i7 series processor, Intel® Celeron® & Intel® Pentium processors
  • Intel® Q170 express chipset
  • 4 3.5" hot-swap + 2x 2.5" fixed drive bays
  • 1 slim DVD-ROM drive bay
  • 1 PCI-E 3.0 x16 (in x16) LP slot, 1 M.2 (Mkey 2242/80 PCI-E 3.0 x4), 1 Mini-PCI-E with mSATA support
  • Up to 32GB DDR4 2400MHz Non-ECC Unbuf. SO-DIMMs in 2 sockets
  • 2 RJ45 GbE LAN ports (Intel® i210-AT & i219LM)
  • 1 HDMI, 1 DP, 1 DVI-D, Intel HD graphics, 3 Independent Displays
  • 2 COM, 4 USB 3.0 (rear), 2 USB 2.0 (front), 1 USB 2.0 (Type A)
  • 1 SuperDOM, ALC 888S HD Audio
  • 250W Bronze Level Power Supply
SYS-6039P-TXRT
SYS-6039P-TXRT
11 PCI-E Slots • 8 Hot-swap 3.5", 2 Peripheral 5.25"
  • 3U Max I/O Server - Expansion / Performance / Flexibility
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 8 Hot-swap 3.5" SATA3 drive bays and 2 Peripheral 5.25" bays
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 2 GbE, 1 Video, 2 COM, 4 USB 3.0 (2 rear, 2 via header), 4 USB 2.0 (2 rear, 2 via header), 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x 80mm middle fans and 1x 80mm fear exhaust fan
  • 980W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.
