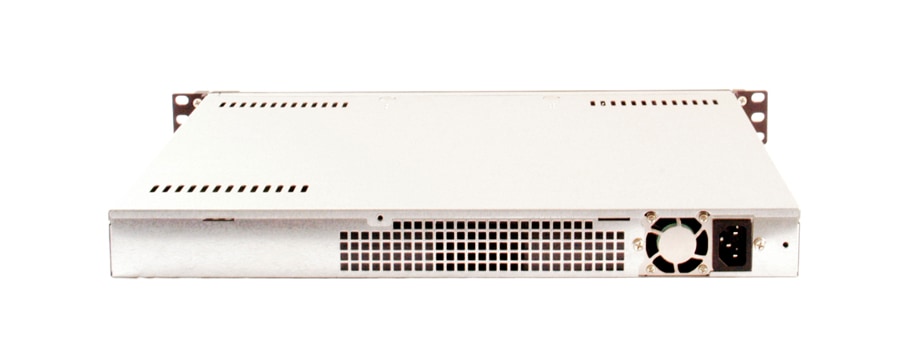

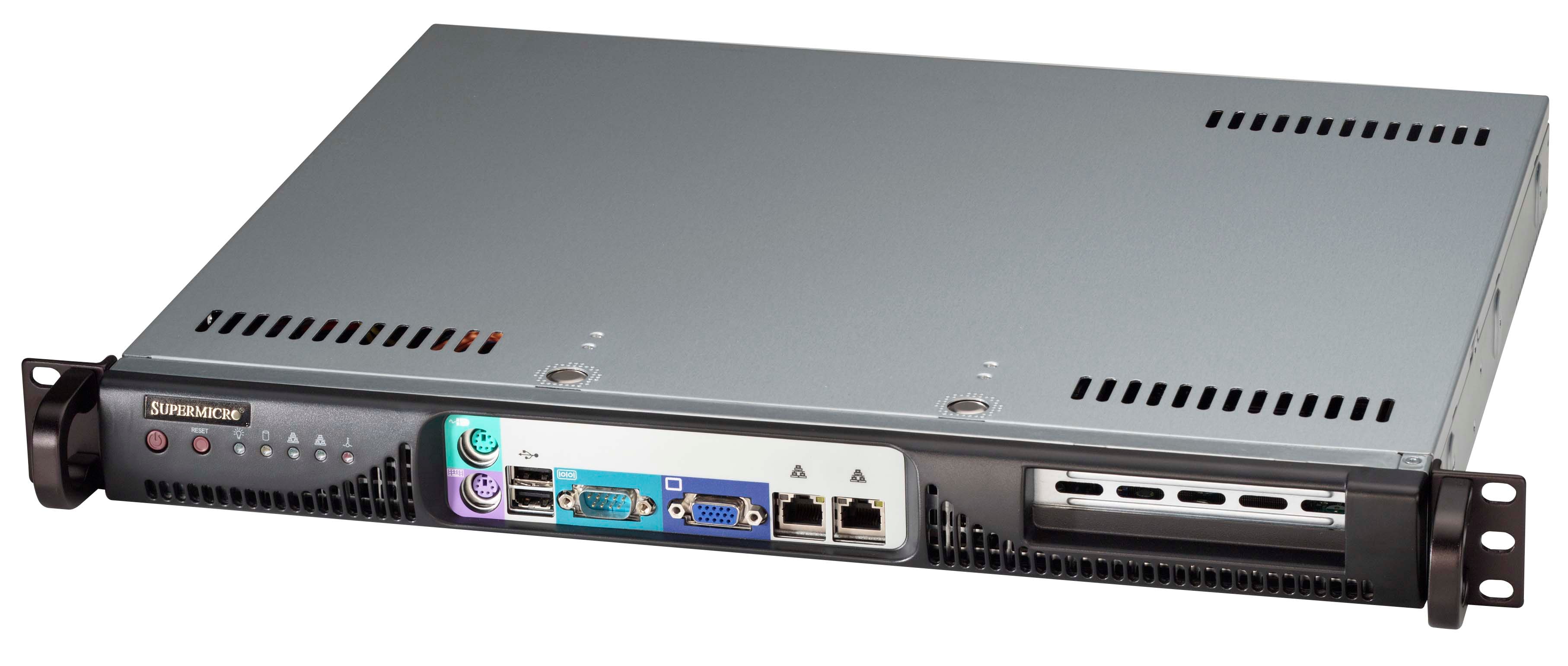

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 14" Mini 1U chassis support for maximum motherboard size - 12" x 9.6" ATX
  2. 1 x 3.5" fixed drive bay
  3. 1U 260W Multi-output power supply
  4. 1 full-height & half-length expansion slot(s)
  5. 2 x 4cm counter-rotating PWM fan(s)
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-513F-260B
  • SuperChassis 513F-260B

Form Factor
  • 14" Mini 1U chassis support for maximum motherboard size - 12" x 9.6" ATX
    •
    Processor Support
  • Single and Dual Intel® / AMD processors
    		•

    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 16.8" (426 mm)
    Depth
    • 14" (356 mm)
    Gross Weight
    • 14.5 lbs (6.58 kg)
    Packaging (W x H x L)
    • 19.5" (495 mm) x 6.9" (175 mm) x 22.4" (569 mm)
    Available Color
    • Black

    Expansion Slots
    • 1 full-height & half-length expansion slot(s)

    Drive Bays
    • 1 x 3.5" fixed drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
    Systems Cooling
    Fans
    • 2 x 4cm counter-rotating PWM fan(s)

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 260W Multi-output power supply
    Power Efficiency
    • 77%
    Total Output Power and Input
    • 260W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 220 x 84 x 40 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: 1A / Min: 0A
    +12V
    • Max: 18A / Min: 0.6A (100Vac - 240Vac)
    +5V
    • Max: 25A / Min: 0.5A
    +3.3V
    • Max: 15A / Min: 0.5A
    +5Vsb
    • Max: 2.0A / Min: 0.1A
    Certification
    • N/A

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • CE/EMC
    • FCC class B
    • TUV/CB
    • UL/CUL
    Components
    Optional Parts List
      Part Number Qty Description
    Rail CSE-PT8L - Rail Kit for 1U
    Hard Drive CSE-PT73 - 2.5" Hard Drive Mounting Kit
    SuperChassis 513F-260B
