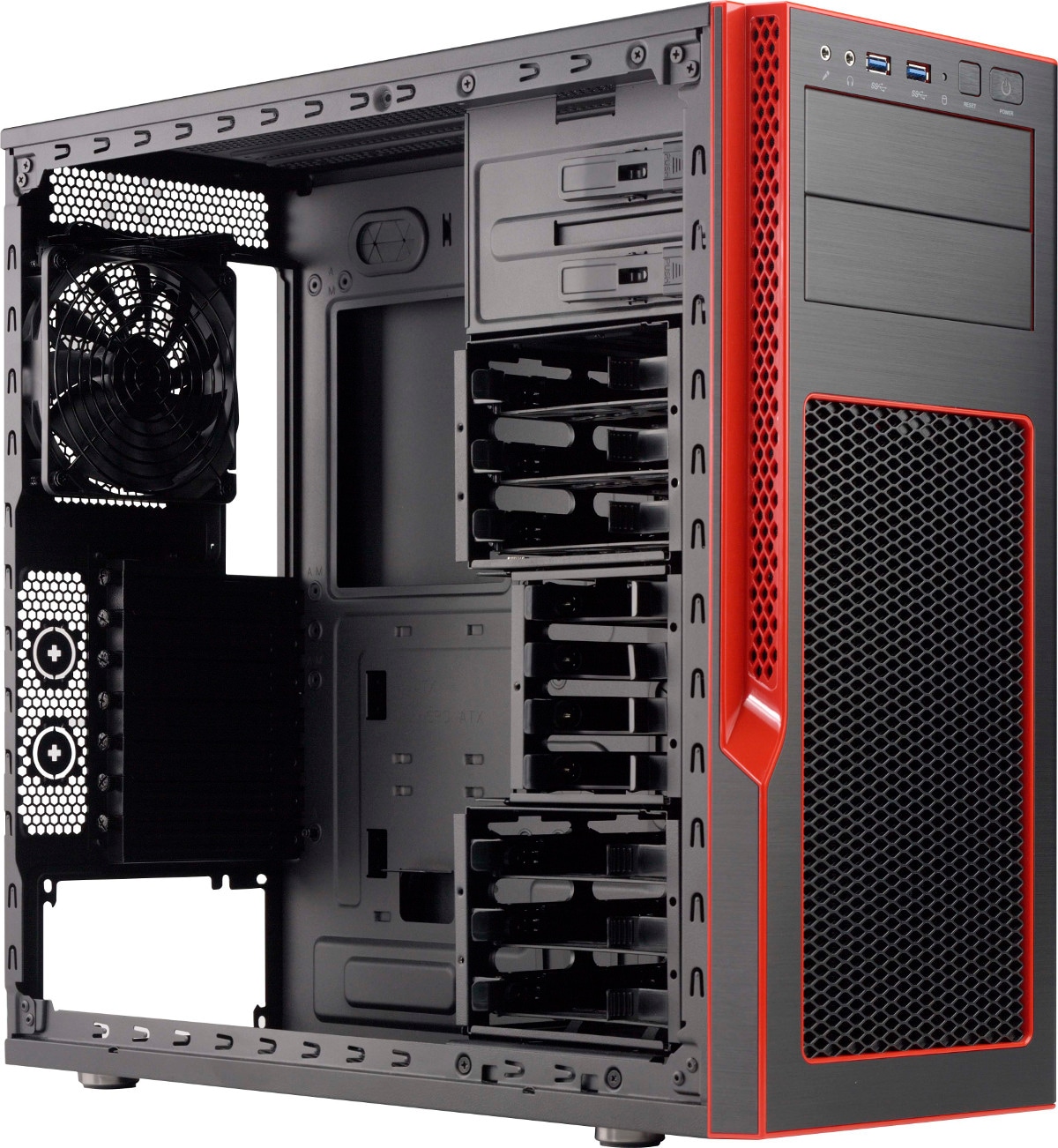

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. Black interior paints throughout the chassis - best for DIY gamer.
  2. Black anodized brushed aluminum fascia front panel with two USB 3.0 ports
  3. Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives
  4. Tool-less 5.25" device installation with trays to support 3.5" and 2.5" drives
  5. Cable management holes with rubber grommets for clean builds
  6. Removable magnetic dust filter
  7. One click front grille access
  8. Large motherboard tray cut-out for CPU cooler back-plates
  9. 3x 120mm PWM fans included
Specifications
Product SKUs
CSE-GS5B-000R
  • SuperChassis GS5B-000R

Form Factor
  • Mid-Tower chassis for motherboard support size ATX 12”x10” & Micro-ATX 9.6”x9.6”
    •
    Processor Support
  • Dual and Single Intel® and AMD processors
    		•

    Dimensions
    Height
    • 18.1" (460 mm)
    Width
    • 7.9" (200 mm)
    Depth
    • 19.4" (493 mm)
    Net Weight
    • 18.2 lbs (8.26 kg)
    Gross Weight
    • 23.2 lbs (10.52 kg)
    Packaging (W x H x L)
    • 10.4" (264 mm) x 22.4" (569 mm) x 20.4" (518 mm)
    Available Color
    • Black / Red

    Expansion Slots
    • Up to
    • 7 full-height & full-length expansion slot(s)

    Drive Bays
    • 6 x 3.5" fixed drive bay
    • 4 x 2.5" fixed drive bay

    Peripheral Drives
    • 2 x standard 5.25" drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • HDD activity LED
    • Power Status LED
    Systems Cooling
    Fans
    • 2 x 12cm front cooling fan(s)
    • 1 x 12cm rear exhaust fan(s)

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Components
    Standard Parts List
      Part Number Qty Description
    Control BoardMCP-280-GS501-0N1S5 Mid-Tower Chassis Front Control Panel PCB Assembly w/ Cables
    Part(s)MCP-290-GS501-0B1S5 Mid-Tower Chassis Top Magnetic Filter Assembly
    Part(s)MCP-290-GS502-0B1S5 Mid-Tower Chassis Bottom Magnetic Filter Assembly
    Part(s)MCP-290-GS504-0B1S5 Mid-Tower Chassis Front Bezel Side Filter Assembly
    Part(s)MCP-290-GS506-0B1S5 Mid-Tower Chassis Front Bezel Grille w/ No Logo Assembly
    Part(s)MCP-230-S5B01-0B1Black S5 Mid-Tower Chassis Left Side Cover (Thumb Screws x2)
    Part(s)MCP-230-S5B02-0B1Black S5 Mid-Tower Chassis Right Side Cover(Thumb Screws x2)
    Drive Tray(s)MCP-220-GS502-0B4S5 Mid-Tower Chassis Tool-less Internal 2.5" HDD Carrier
    Drive Tray(s)MCP-220-GS503-0B6S5 Mid-Tower Chassis Tool-less Internal 3.5" HDD Carrier
    Drive Tray(s)MCP-220-S5B01-0B2Black S5 Mid-Tower Chassis 5.25inch Drive Tray
    Optional Parts List
      Part Number Qty Description
    Front Dust Filter MCP-290-GS503-0B 1 S5 Mid-Tower Chassis Front Bezel Grille with Supermicro Logo Assembly
    Thumb Screw MCP-110-GS501-0B 1 S5 Mid-Tower Chassis Side Panel Thumb Screw-Black Color
    Fan Kit FAN-0124L4 1 12cm (1850rpm) cooling Fan
    LCD Module MCP-220-00095-0B 1 5.25" USB LCD Kit
