2U Twin^2 SolutionsSupermicro 2U Twin 3 Solutions

Supermicro extends its lead in Twin server technology with the 2U Twin3 (2U Twin Cubed) 2015TA-HTRF system that includes eight hot-pluggable Intel® Atom™ Dual-Core processor nodes in a 2U form factor (two nodes per single hot-swap unit). Each node also supports 4 GB of non-ECC DDR3-800 MHz SO-DIMM, dual Gigabit Ethernet LAN, 2 USB ports, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, and 3x 2.5" SATA hot-swap HDDs. The system also includes (1+1) redundant 720W Gold Level power supplies with PMBus, and four heavy-duty fans with optimized fan speed controls. The 2U Twin3 eight-node system is optimized for high-density and low-power environments such as cost-effective data centers, industrial process control, small offices, web proxy servers or cache servers.

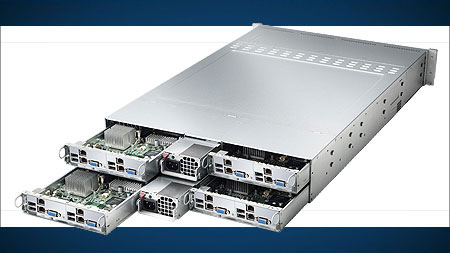

Supermicro 2U Twin Cubed

Product Brief

Supermicro 2U Twin Cubed

2015TA-HTRF Server - 8x Nodes in 2U

Gold Level • 8 nodes in 2U - Two (2) Nodes per single Hot-swap tray
• 8 Intel® Atom™ D525 Dual-core 1.8GHz (13W) processors
• Intel® ICH9R chipset
• Up to 32GB Non-ECC DDR3 800MHz SO-DIMMs supported
• 3 2.5" hot-swap SATA HDD (RAID 0, 1, 5) per node; total of 24 HDDs
• Dual Intel 82574L GbE LAN - 2x RJ45 LAN ports per node
• Integrated Matrox G200eW Graphics controllers
• 4 sets of rear I/O ports including 2 USB, VGA, 2 LAN ports per node
• 4 80mm heavy-duty PWM fans with optimal fan speed control
• Support IPMI 2.0, Virtual Media over LAN and KVM over LAN
• (1+1) Redundant 720W Gold Level Power Supplies with PMbus
• Independent power control


Motherboard: X7SPT-DF-D525+ (comes with server only)

Product Highlights


8 nodes in 2U, each supports 4GB non-ECC DDR3 800MHz SO-DIMM, dual GbE LAN, IPMI 2.0, & 3 hot-swap 2.5" SATA HDDs. Redundant 720W Gold Level power supplies. Optimized for high-density and low-power environments.
