SuperServer 5018GR-T

  Products  Systems   GPU   [ 5018GR-T ]





Integrated Board
X10SRG-F

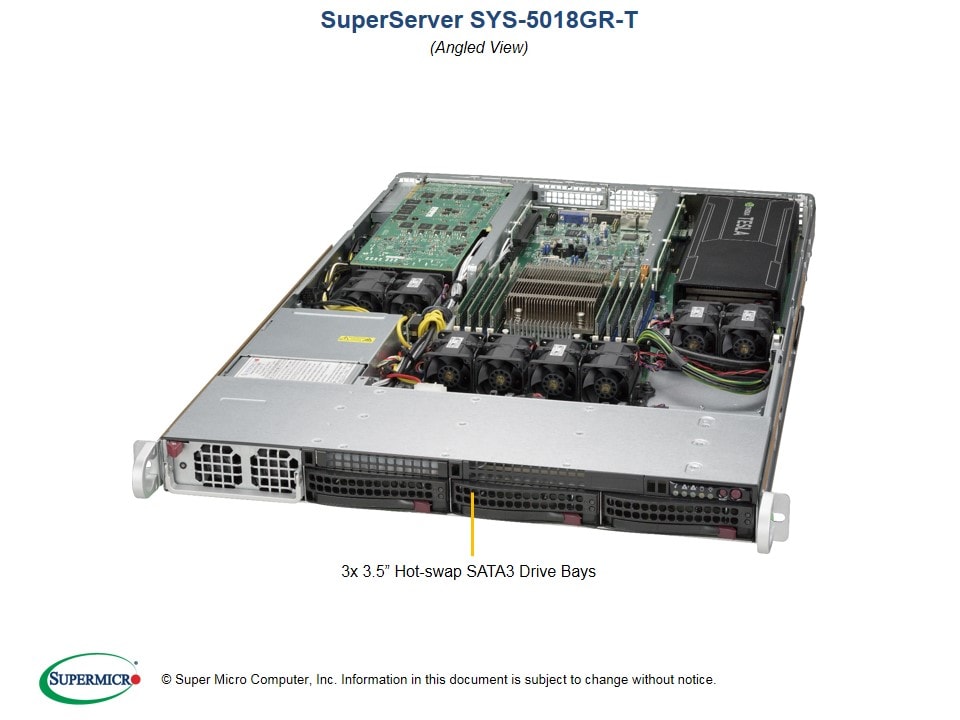

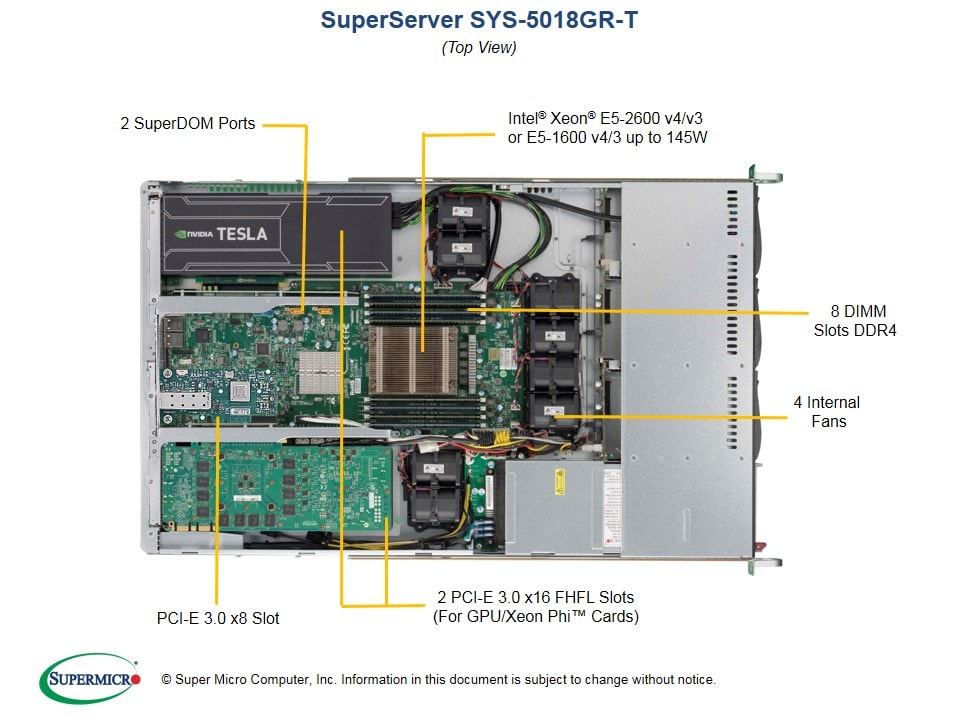

Views: | Angled View | Top View |

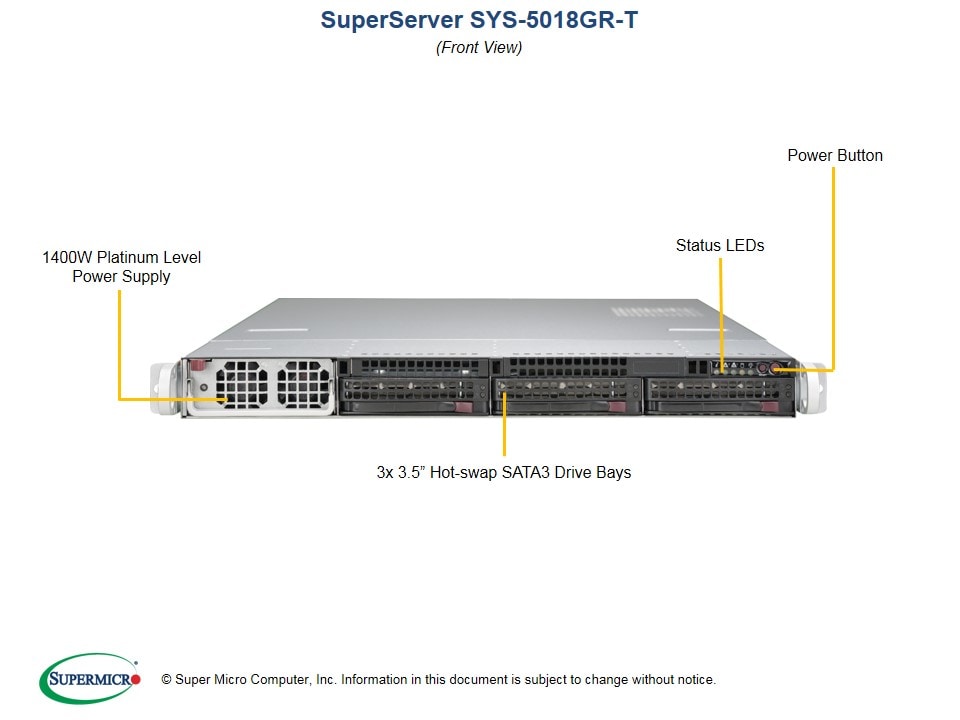

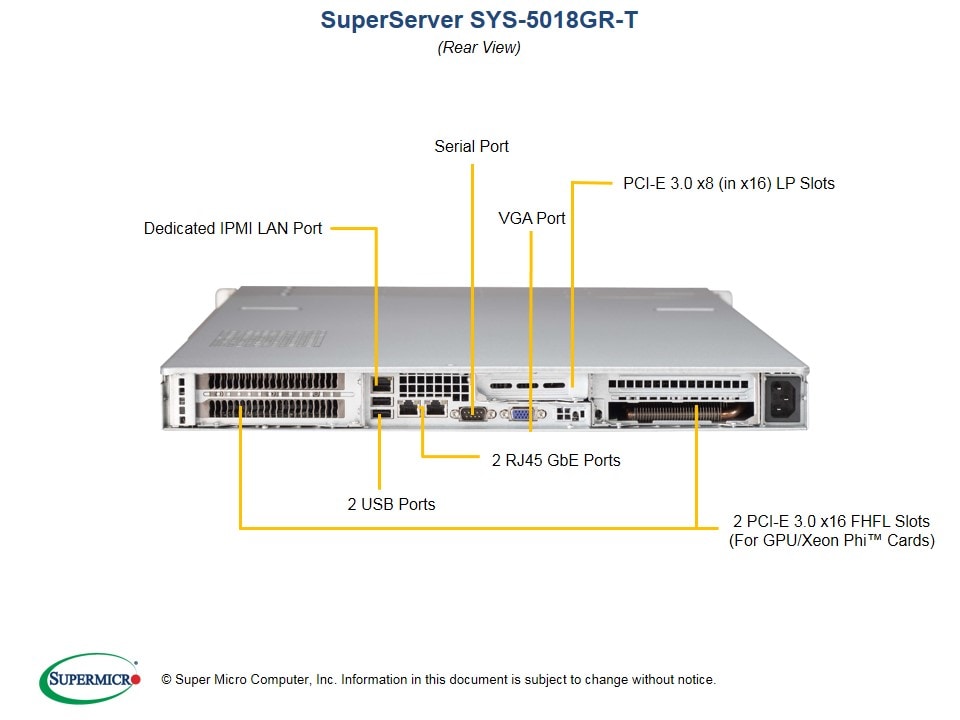

| Front View | Rear View |

Key Features
1. Single socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 and E5-1600 v4/ v3 family
2. Up to 1TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 8x DIMM slots
3. 2x PCI-E 3.0 x16 slots
    (support GPU/Xeon Phi cards),
    1x PCI-E 3.0 x8 low-profile slot
4. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
5. Intel® i350 Dual-Port GbE Controller
6. 3x 3.5" Hot-swap drive bays
7. 1400W High-efficiency Power Supply
    Platinum Level (94%+)
    Digital Switching Control & PMBus 1.2
8. 8x Counter rotating fans w/ optimal
    fan speed control

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options

Product SKUs
SYS-5018GR-T
  • SuperServer 5018GR-T (Black)

Motherboard

Super X10SRG-F

Processor
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache
  • Up to 22 Cores / Up to 55MB Cache
Note BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM
  • Up to 512GB ECC LRDIMM
  • Up to 512GB ECC RDIMM
Memory Type
  • 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • 3DS LRDIMM: 128GB
  • LRDIMM: 64GB, 32GB
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 6x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header
DOM
  • 2x DOM (Disk on Module) power connectors

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-818GTS-1K43BP2

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.2" (716mm)
Weight
  • Net Weight: 27 lbs (12.25 kg)
  • Gross Weight: 35.5 lbs (16.10 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express

Drive Bays
Hot-swap
  • 3x 3.5" Hot-swap drive bays

System Cooling
Fans
  • 8x counter-rotating fans with optimal fan speed control

Power Supply
1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
  • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby
  • 6 Amp
+12V
  • 100 Amp/115 Vac
  • 117 Amp/230 Vac
With Power Distributor
  • +5V: 14 Amp
Certification Platinum Certified
  Platinum Certified

PC Health Monitoring
CPU
  • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • CPU Core 5-Phase-switching voltage regulator
FAN
  • Total of eight 4-pin PWM fans
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SRG-F
CSE-818GTS-1K43BP2
1
1
Super X10SRG-F Motherboard
1U Black SC818GTQ Chassis
Backplane BPN-SAS-818TQ 1 3-port 818 TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-PWEX-0582 1 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH
Cable 3 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Cable 4 CBL-0481L 1 SATA,INT,ROUND,ST-ST,81CM,30AWG
Manual MNL-1622-QRG 1 SYS-1018GR-T 1U UP Qucik Reference Guide,HF,RoHS/REACH
Riser Card RSC-R1UG-E16R-UP 1 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB
Riser Card RSC-R1U-E16R 1 RSC-R1U-E16R
Riser Card RSC-R1UG-E16-UP 1 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K43F-1R 1 1400W redundant digital power supply
Optional Parts List

Part Number
Qty
Description
Hard Drive Carrier MCP-220-00043-0N - Black Hot-swap Gen4 3.5" to 2.5" HDD tray
Peripheral Drives DVM-PNSC-DVD-SBT3
MCP-220-81502-0N
-
-
BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
SLIM SATA DVD KIT FOR SC813, 815, 825, 835
Hide Parts List
