MicroBlade Server System MBS-614E-315R (Complete System Only)

Products MicroBlade [ MBS-614E-315R ]









Integrated Blade Module
MBA-315R-7G

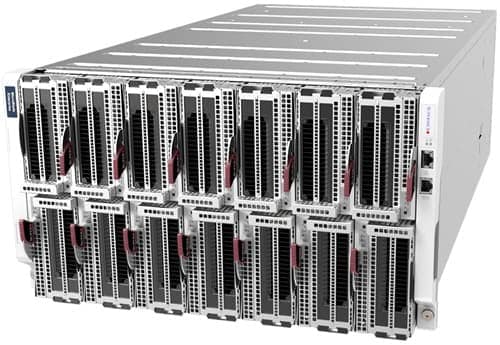

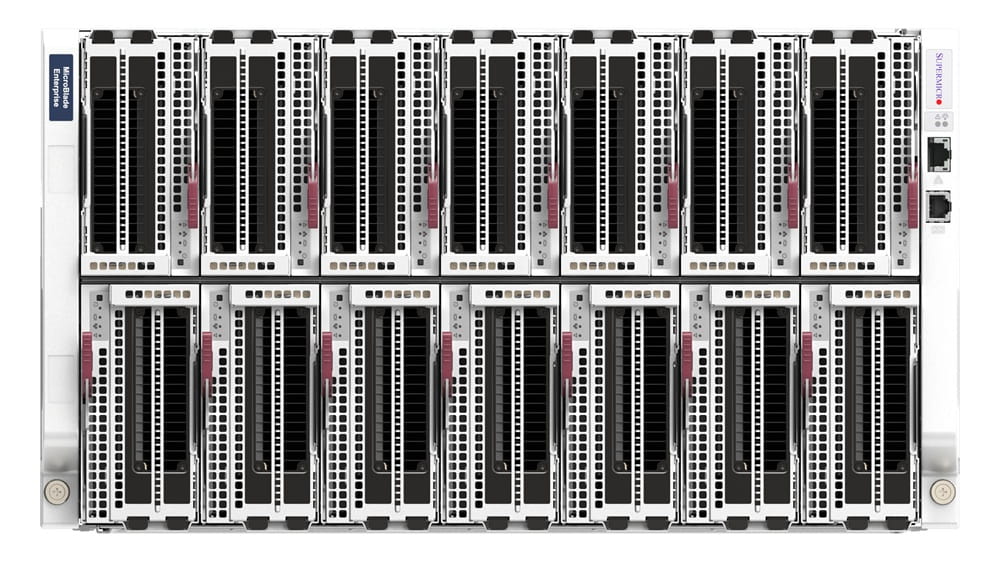

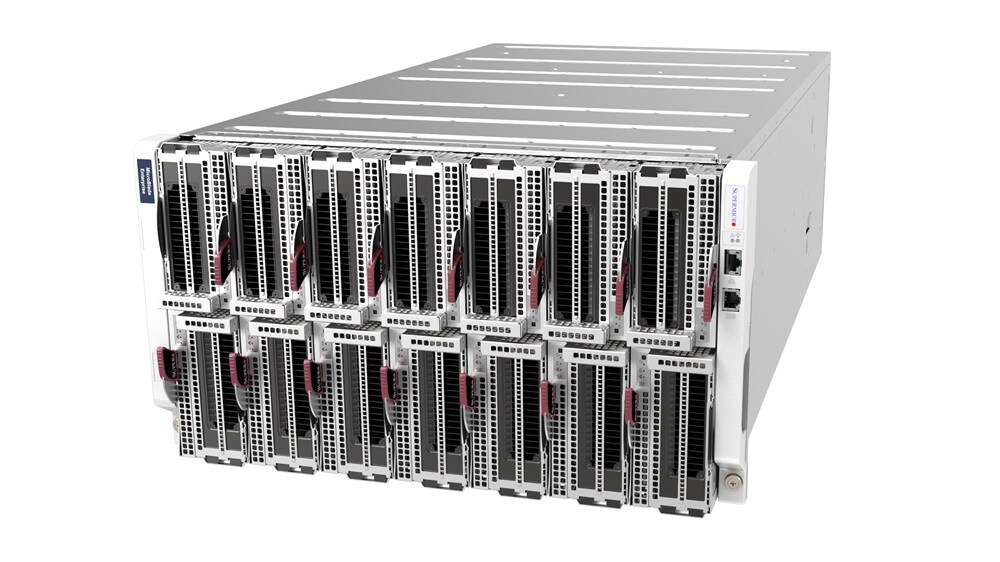

Views: | Angled View | Front View |

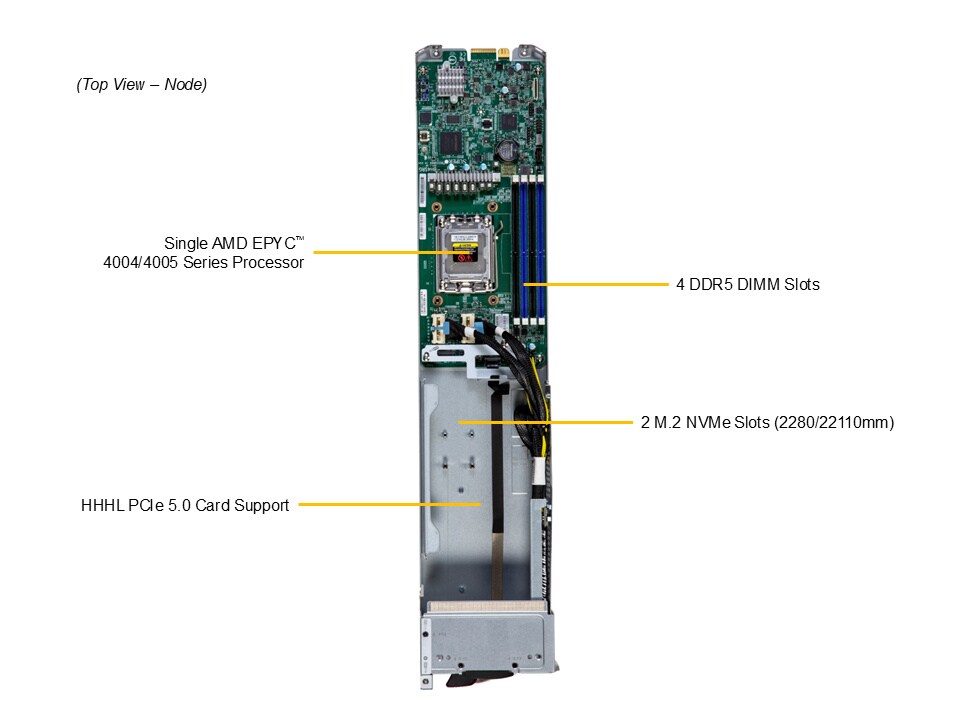

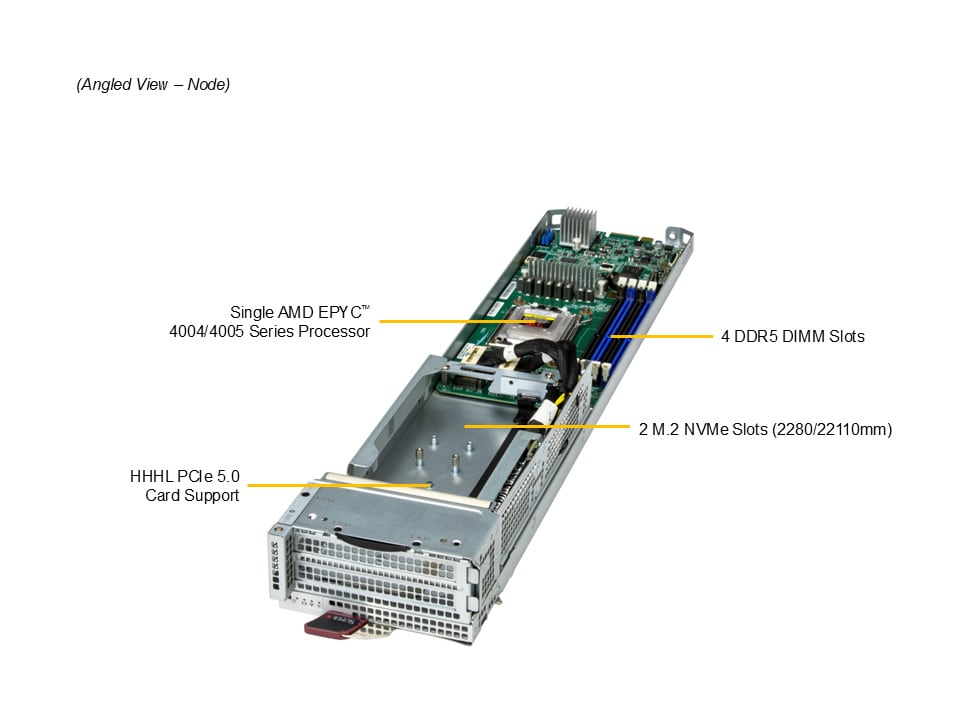

| Angled Node View | Top Node View |

Key Applications
- Cloud Computing
- Enterprise Virtual Desk Infrastructure (VDI)
- Web Cache, CDN
- Virtual Workstation (vWS)
- Web Hosting, Dedicated Hosting
- AI Inference
- Game Streaming, Cloud Gaming
- Video Transcoding & Media Processing

Key Features

1. 112 UP nodes per 48U rack
2. 14 UP nodes in 6U
3. Per blade supports AMD EPYC™ 4005/4004 Series Processor
4. Per blade supports up to 1 HHFL PCIe 5.0 x16 GPU
5. Per blade supports up to 192GB ECC DDR5 UDIMM
6. Per blade supports up to 2 M.2 NVMe drives
7. Per blade supports dual-port 10GbE
8. Dual switch modules per system for redundancy
9. Per system supports Central Management Module (CMM)
10. Front-loading nodes optimizes serviceability
11. System-wide N+1 or N+N power redundancy with 80 PLUS Titanium grade (96%) efficiency



Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 14 CPUs, 56 DIMMs).

Drivers & Utilities BIOS / IPMI Manuals Tested Memory Tested HDD Tested NVMe  Tested M.2 List  OS Certification Matrix  Download Driver CD





Product SKUs
MicroBlade Server System
  • MBS-614E-315R
MicroBlade Sled
  • MBA-315R-7G
Motherboard

Switch Module
MBM-XEM-002
  • Broadcom BCM56846 10GbE Low Latency Switch
  • 2x 40G and 4x 10G uplinks
  • 56x 10/1Gbps downlinks (MicroBlade)
  • 1 Console port, 1 USB port
Details

Central Management Module (CMM)
MBM-CMM-6
  • CMM with Front IO support
Details

Processor (per node)
CPU
  • Single Socket AM5 (LGA-1718)
    AMD EPYC™ 4005/4004 Series Processor
Core Count
  • Up to 16C/32T; Up to 128MB Cache
Note
  • Supports 65W - 170W TDP CPUs*
  • *For CPU over 120W, contact a Supermicro representative for details.

GPU (per node)
Max GPU Count
  • Up to 1 HHFL PCIe 5.0 x16 GPU
  • *For CPU over 120W, contact a Supermicro representative for details.

System Memory (per node)
Memory Capacity
  • 4 DIMM slots
  • Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
  • Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1 V

On-Board Devices (per node)
Network Controllers
  • Dual 10GbE LAN Ports (conditionally supports single port for 25G)
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics
  • Aspeed AST2600 BMC

System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • BIOS Feature: ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Dimensions
Height
  • 10.43" (265mm)
Width
  • 17.67" (449mm)
Depth
  • 34.45" (875mm)
Weight
  • Gross Weight: 134.6lbs (61.11kg)
Available Colors
  • Silver Grey

Front Panel
LEDs
  • Power LED
  • Fault LED
  • Network Activity LED
  • UID / KVM LED

Drive Bays (per node)
M.2
  • 2 M.2 NVMe SSD slots

Input / Output
TPM
  • 1 TPM 2.0 Header & Chip both

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F )

  • Non-operating Temperature:
    -30°C to 60°C (-22°F to 140°F)

  • Operating Relative Humidity:
    8% to 80% (non-condensing)

  • Non-operating Relative Humidity:
    8% to 90% (non-condensing)

Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • EN55022 - Emissions
  • EN55024 - Immunity
  • EN61000-3-2 - Harmonics
  • EN61000-3-3 - Voltage Flicker
  • CE - EMC Directive 89/336/EEC
Optional Parts List
  Part Number Qty Description
Heat Sink SNK-P0094PV - 2U AM5 CPU Heat Sink
TPM security module
(optional, not included)		 AOM-TPM-9670V
AOM-TPM-9671V		 - TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
